OTHER FUNCTIONS
DD

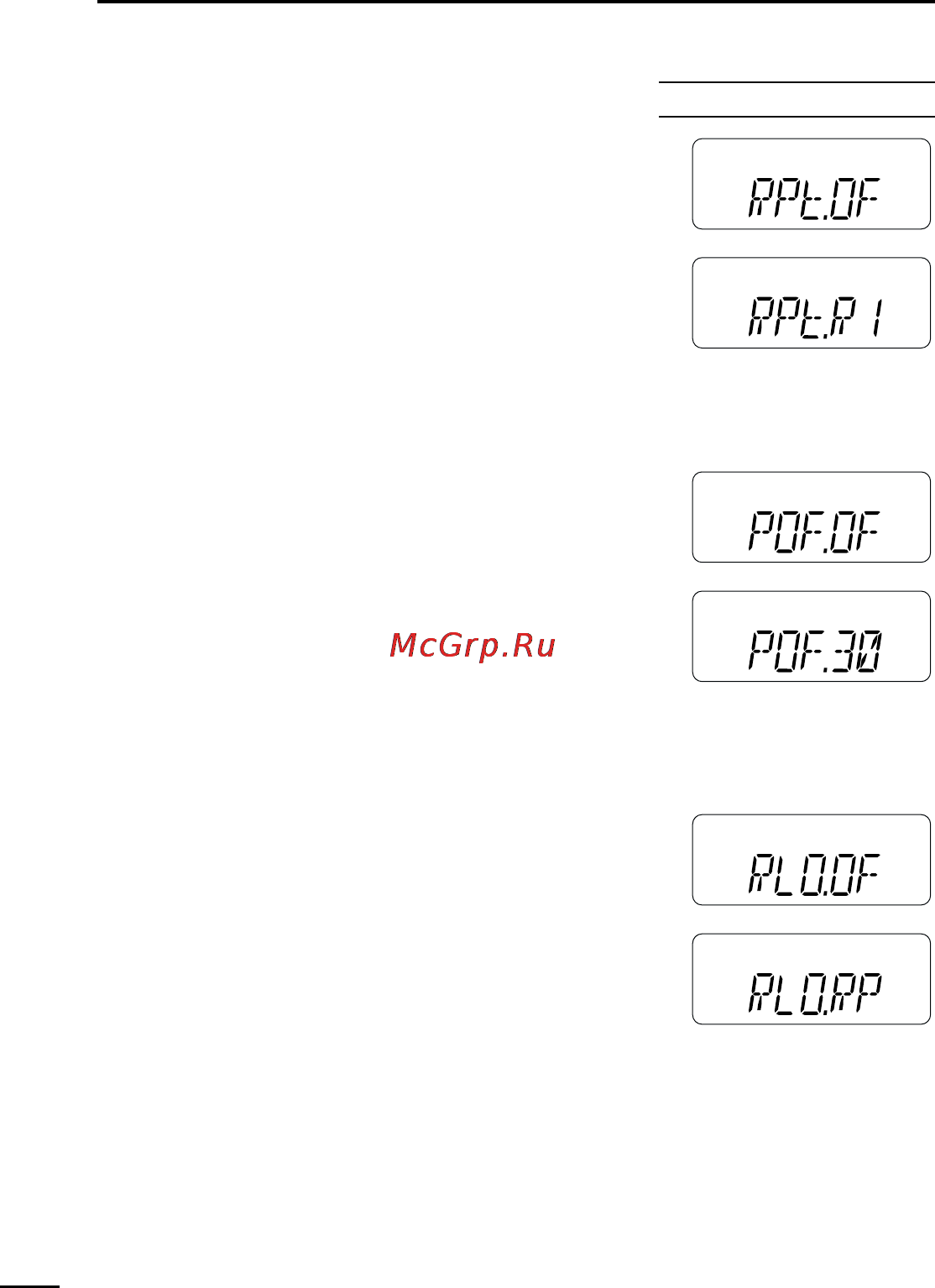

Auto repeater
The auto repeater function automatically
turns ON or OFF the duplex operation and
tone encoder. The offset and repeater tone is
not changed by the auto repeater function.
Reset these frequencies, if necessary.
• RPt.OF : The auto repeater function is
turned OFF.
• RPt.R1 : Activates for duplex only. (default)
DD
Auto power-off
The transceiver can be set to automatically
turn OFF after a specified period with a beep
when no key operations are performed.
• 30 min., 1 hour, 2 hours and OFF (default)
can be specified. The specified period is re-
tained even when the transceiver is turned
OFF by the auto power-off function. To can-
cel the function, select “
POF.OF” in this set mode.
DD
Repeater lock-out
Selects lockout type from repeater, busy and
OFF.
• RLO.RP : The repeater lockout is turned
ON.
• RLO.bu : The busy lockout is turned ON.
• RLO.OF : No lockout is activated. (default)
U.S.A. version only
