OTHER FUNCTIONS
DD

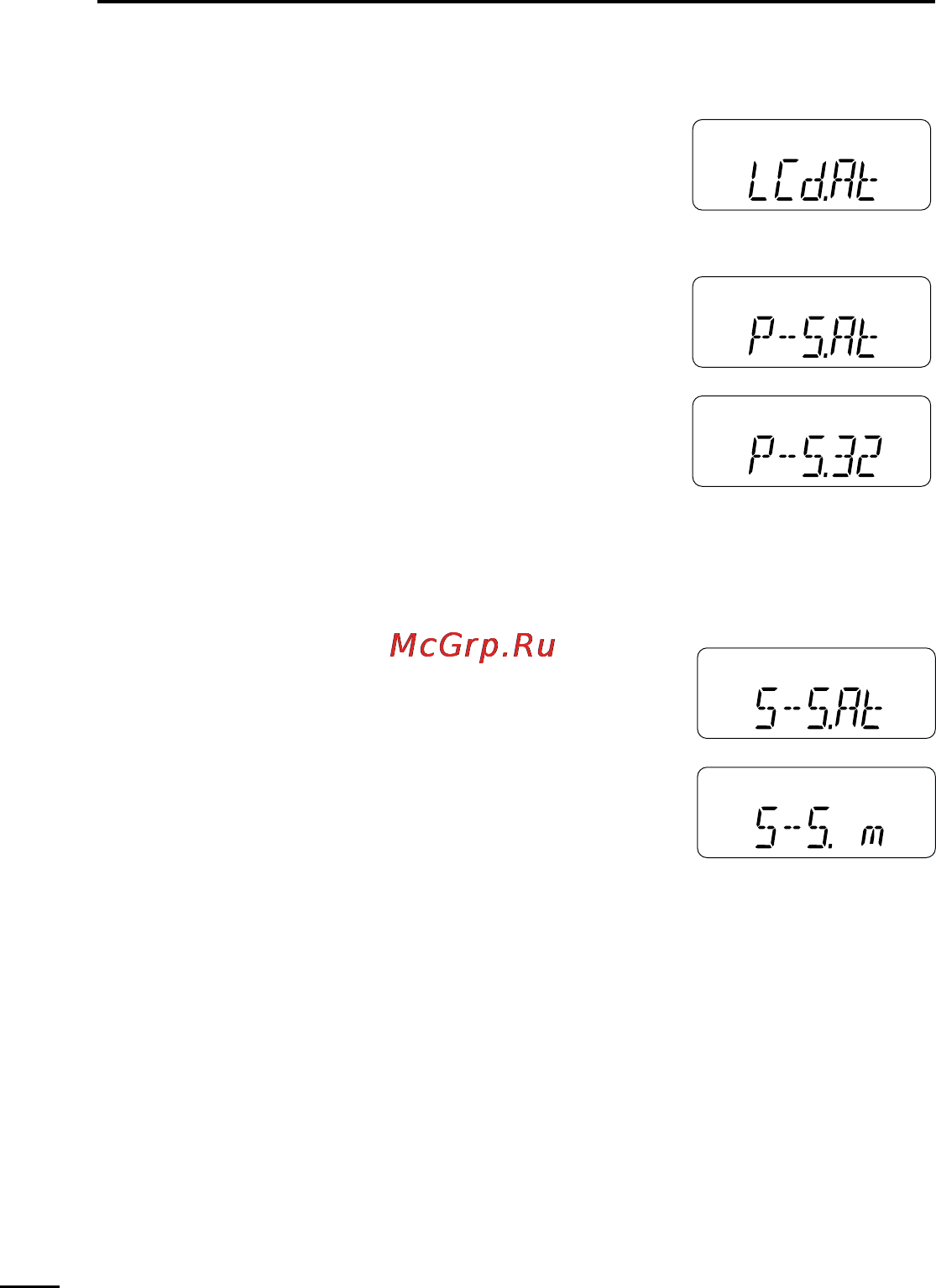

LCD contrast
Selects LCD contrast from auto and low.
• LCd.AT : Automatic (default)
• LCd.LO : Low contrast
DD
Power save
Selects duty cycle for power save function
from auto, 1:32, 1:16, 1:8, 1:2 and OFF.
• P–S.At : Duty cycle changes automatically.
(default)
• P–S.32 : 1:32 duty cycle
• P–S.16 : 1:16 duty cycle
• P–S. 8 :
1:8 duty cycle
• P–S. 2 :
1:2 duty cycle
• P–S.OF : The power save function is turned OFF.
DD
Tuning speed acceleration
The tuning speed acceleration automatically
speeds up the tuning speed when pushing
and holding [Y] or [Z], or rotating [VOL]
rapidly.*
• S–S.At : The tuning speed acceleration is
activated. (default)
• S–S. m : The tuning speed acceleration is
not activated.
*When tuning dial is assigned with [VOL].
