CCVSR User Manual
92
Playback

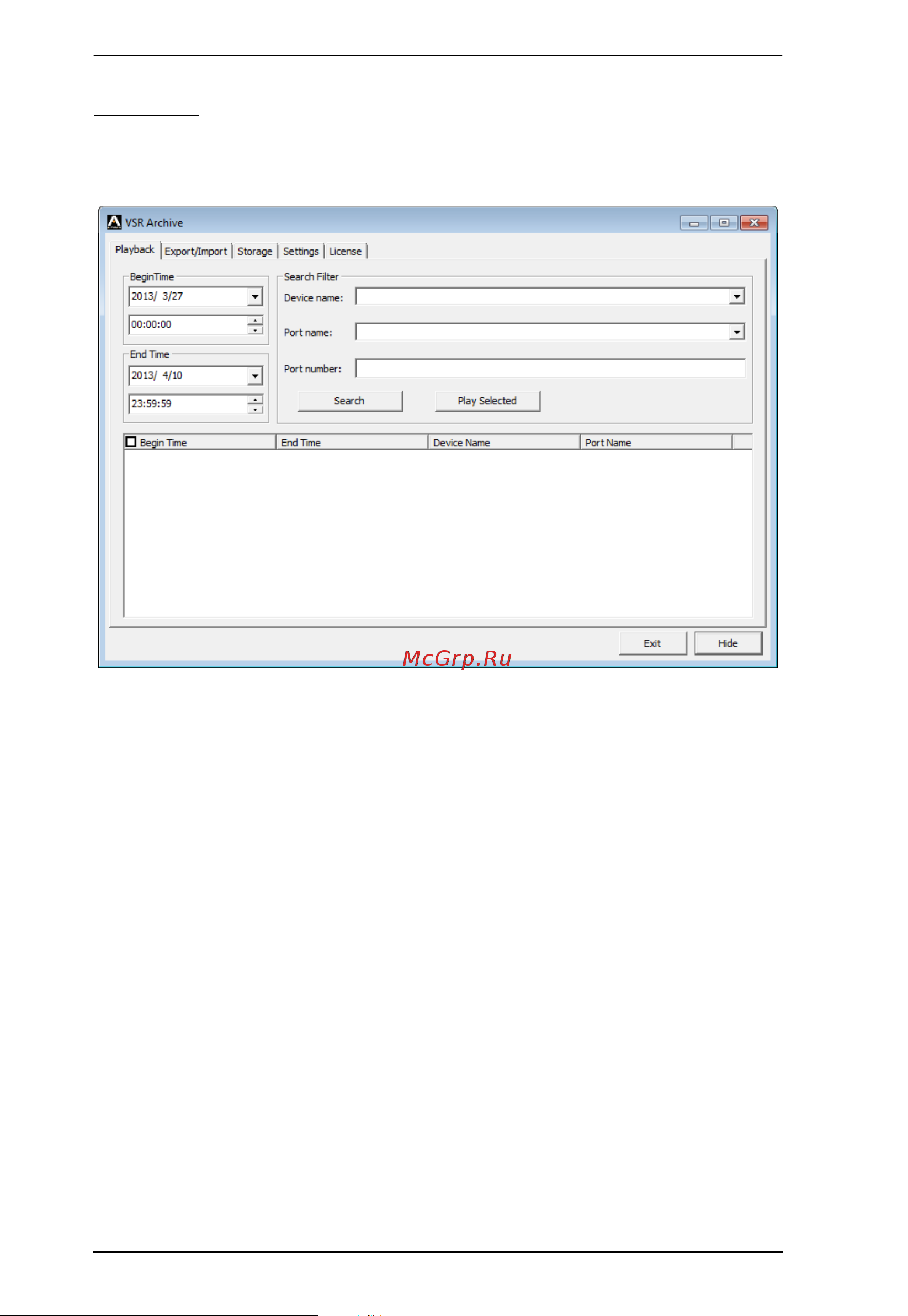

The Playback tab is used to search and playback video log files which have
been archived or manually imported. To see a list of all video log files that have
been archived, simply click the Search button.
The Playback tab has 3 sections used to search and playback archived video log
files.
Begin Time/End Time
This section allows you to filter the search results by the begin and end time.
The Begin Time and End Time refers to the time when the actual video log
recording took place on the KVM switch.
Search Filter
The Search Filter is used to search for archived video log files by the Port
Name, Device Name, or Port Number of the KVM switch they were recorded
on. After inputting the search data, click Search. Your search results* will
appear at the bottom of the page, and you can sort your results using the
columns provided. If you would like to view all archived video logs, simply
leave the fields blank and click Search.
