Chapter 4. Playback
25
Toolbar
The toolbar appears below the video and allows you to view information about
the video and control playback features. The toolbar hides when no mouse
movement is made for 3 seconds. To bring the toolbar into view simply move
the mouse. The toolbar functions are described here:

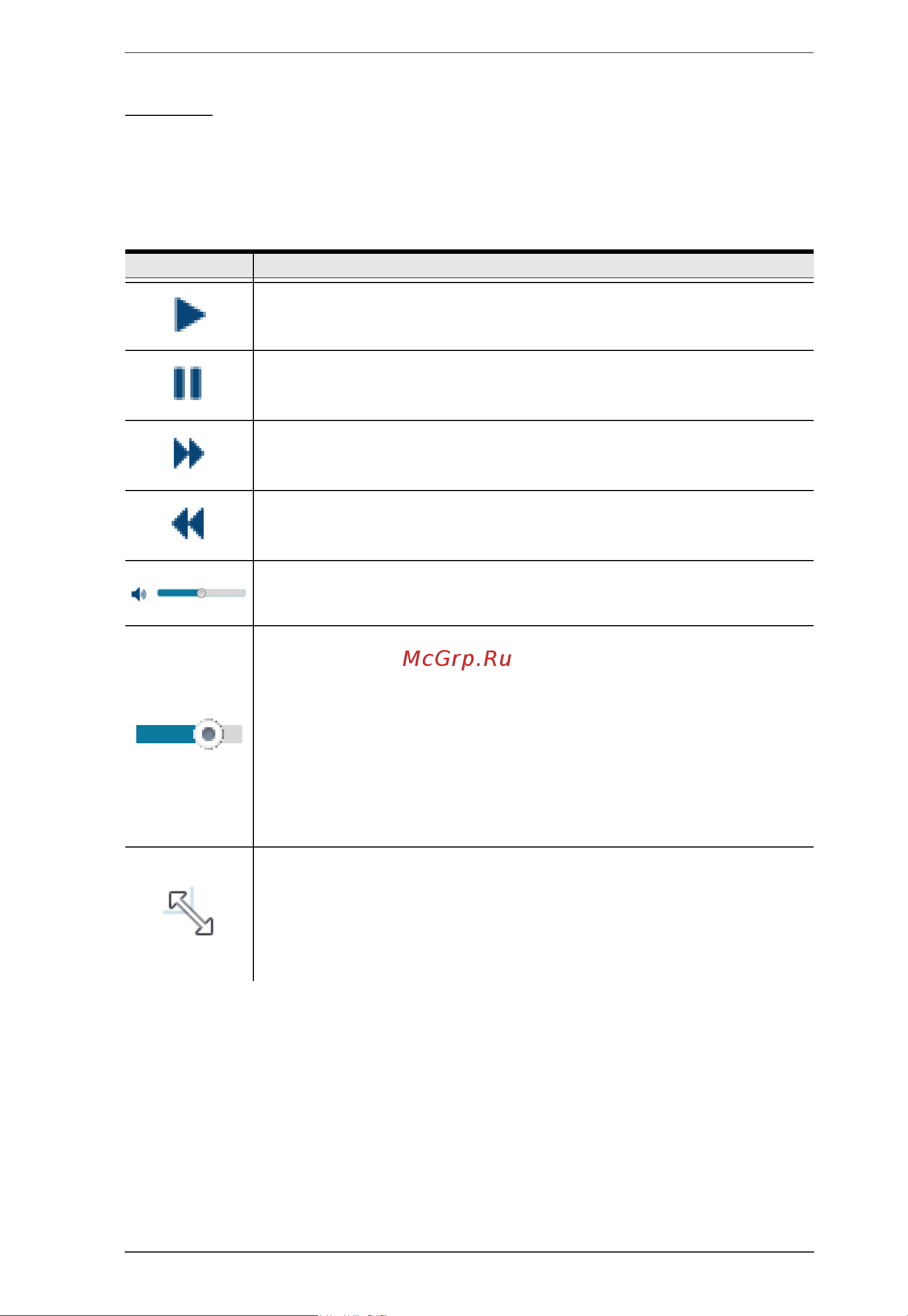

Icon Function
Play: The Play button is used to resume playback of a video log that
has been paused.
Pause: The Pause button is used to stop playback of a video log that is
being played.
Faster: The Faster button is used to increase the playback speed of a
video log. You can increase the speed X2, X4, or X8 of the normal
playback rate.
Slower: The Slower button is used to decrease the playback speed of
a video log. You can decrease the speed 1/2, 1/4, or 1/8 of the normal
playback rate.
Volume: Use the volume bar to adjust the volume. Click the speaker
icon to mute/unmute the video.
Progress Bar: The Progress bar shows how far along you are while
viewing video logs. When viewing multiple video logs using the Play All
feature, a solid red line on the progress bar represents the end of one
video log, and the start of the next.
Placing your mouse over any part of the Progress bar will produce a
pop-up display of the time and date when the video log was captured,
allowing you to quickly locate and go to reference points.
You can click and drag the progress button forward or back to advance
to any point of the video, or click anywhere on the progress bar to
advance to a particular point.
Resize Window: Mouse over the edges of the viewer’s window to see
the resize mouse icon. Click and drag to resize the window. After doing
so if the video doesn’t fit within the resized window, you can scale the
video using the Scale Mode feature (see Scale Mode below).
Note: The entire window can be moved around the screen by holding a
left click anywhere on the top window title bar.
