Aten CCVSR [107/131] Settings

Chapter 10. CCVSR Archive Server

Note: Before a shared network folder can be used, users must first add a local

disk with at least 10 GB of space, for saving temporary transfer files, to

prevent video loss in the event of unstable network.

3. In the Pre-Allocate Space(GB) field enter the maximum amount of disk

space to use, then click Save. The storage location appears in the lower

window.

4. Next, check the Enable Use box and click Save.

Select a Storage Location and click Modify to modify it, or Remove to remove

it. Click Save to save the changes.

Settings

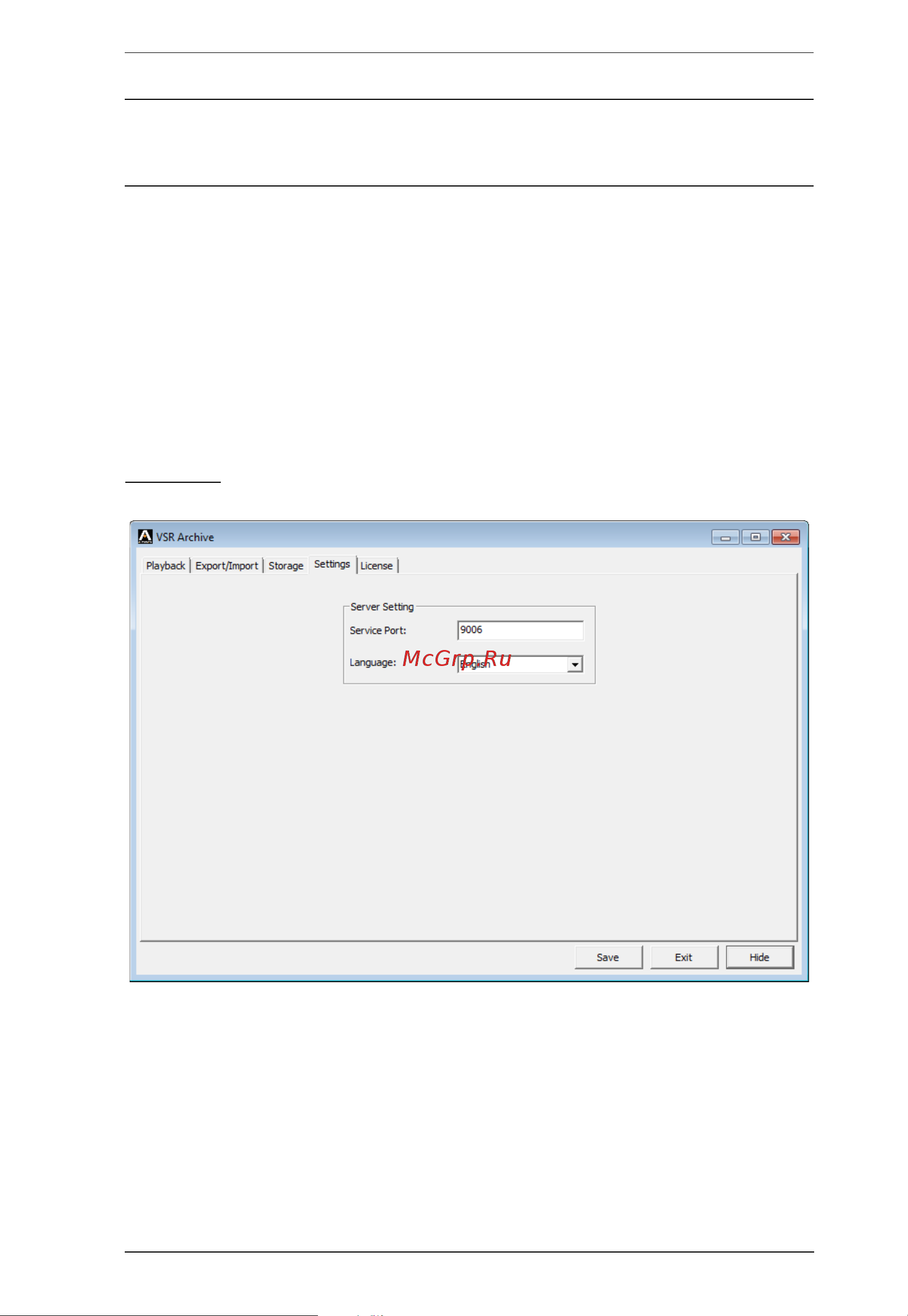

The Settings tab is used to set the Server Settings:

On this tab you can set the Service Port and Language. The default Service Port

is 9006.
