Chapter 8. System

Recording

This page allows you to select the destinations (Primary Server, Secondary

Servers, or shared network folder) and you wish to store the video log files.

Secondary CCVSR Servers are also used to save video log files on alternative

computers in order to consolidate disk space across different computers. To

configure a secondary computer to work as a Secondary CCVSR Server, see

Server Type, page 58 for details. When you select Recording, the following

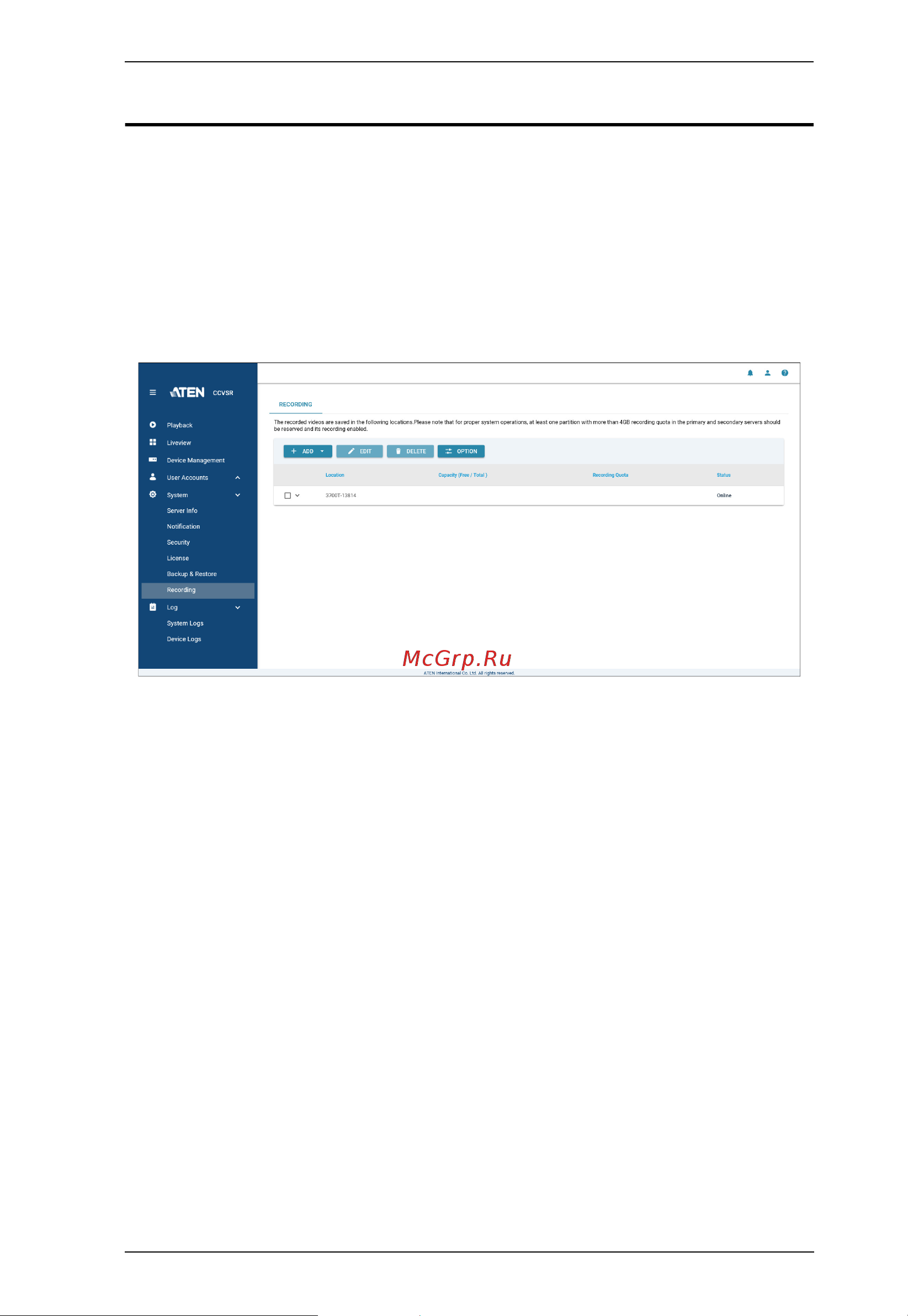

screen appears:

From the Recording menu page you can:

 Add or Delete CCVSR Servers

 Add or Delete Network shared folder

 Enable or Disable recording locations

 Set retention policy for video log files
