CCVSR User Manual

On top of the page, a search section is displayed.

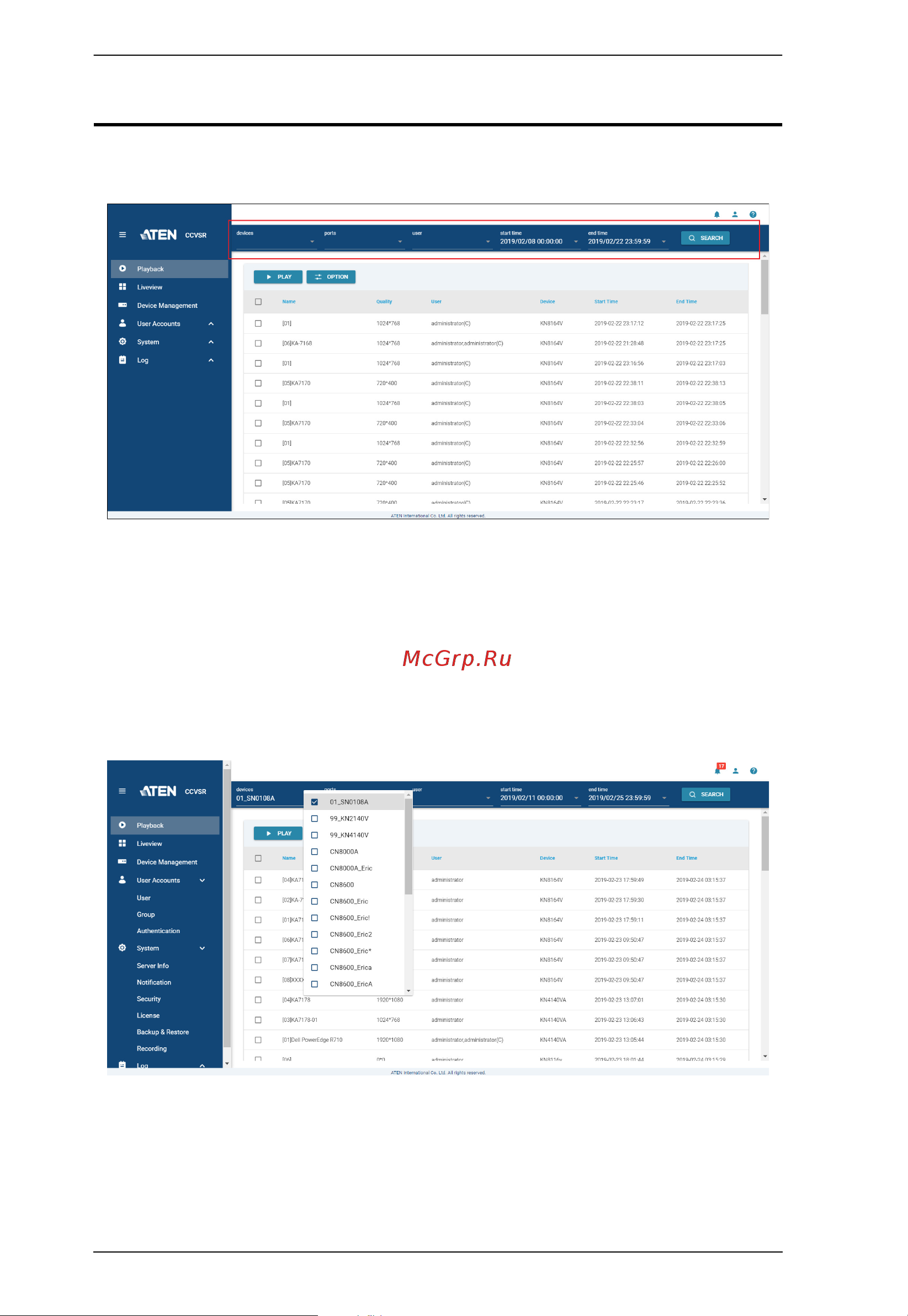

The Search function is used to find video logs by filtering the categories Device

Name, Port Name, User, Begin Time, or End Time, Port Name. The Begin Time

and End Time refers to when the recording took place.

To filter the Video List, fill in the categories by either 1) typing to enter the

information, or 2) clicking the drop-down menu and check the item(s),

followed by clicking Search. An example of checking an item in the drop-

down menu is shown:

To remove the filters, uncheck the selected item and click Search again.
