Aten CCVSR [66/131] Server info

CCVSR User Manual

Server Info

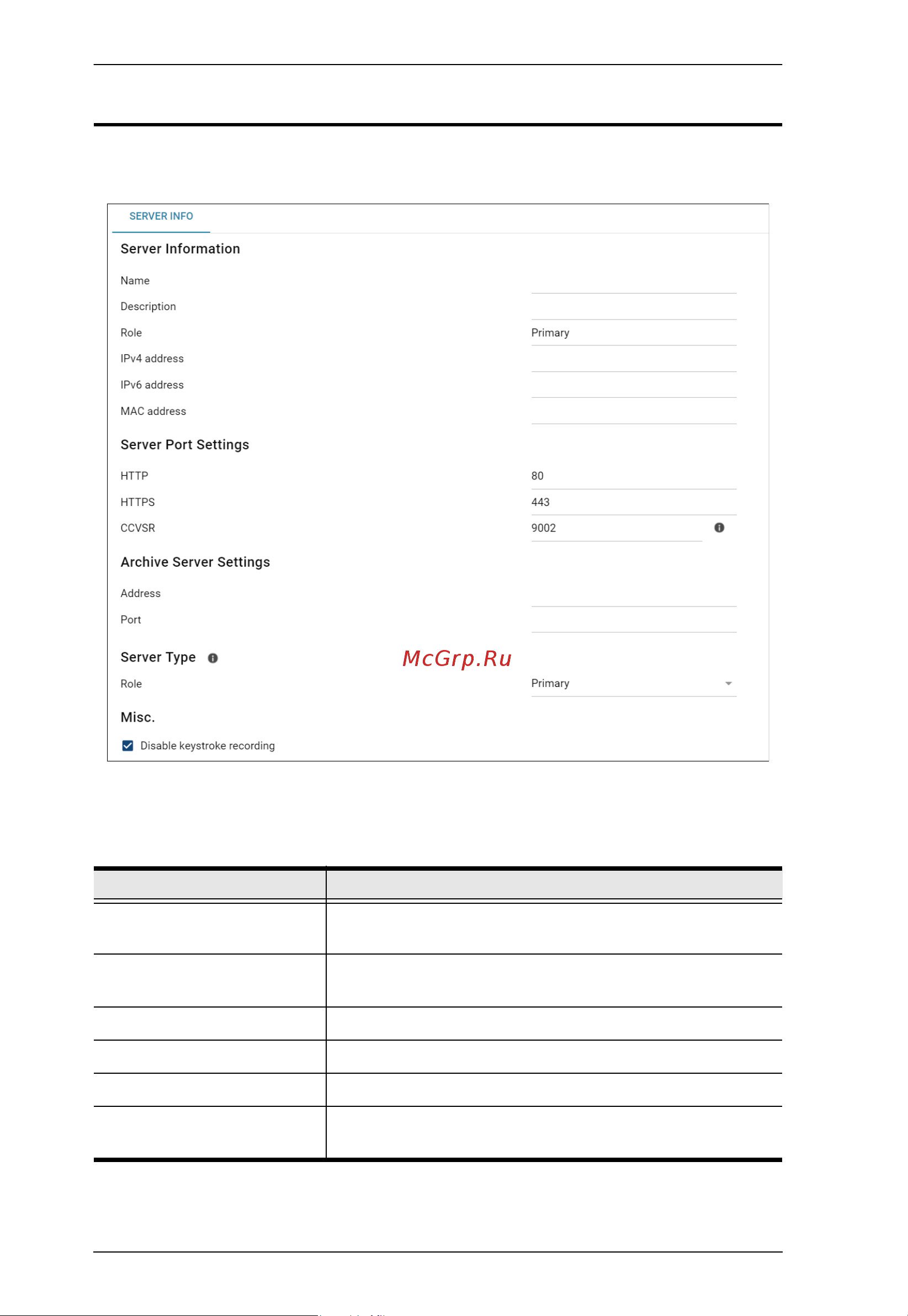

Clicking Server Info sub-menu will bring you to the page below:

Server Information

Item Meaning

Name Displays the computer name of the server hosting the

CCVSR application.

Description Displays the description of the server. You may modify

the information here.

Role Displays the role of the server.

IPv4 Address Displays the CCVSR’s IPv4 address.

IPV6 Address Displays the CCVSR’s IPV6 address.

Server MAC Displays the MAC address of the computer hosting the

CCVSR application.
