Chapter 4. Playback
27
Caption

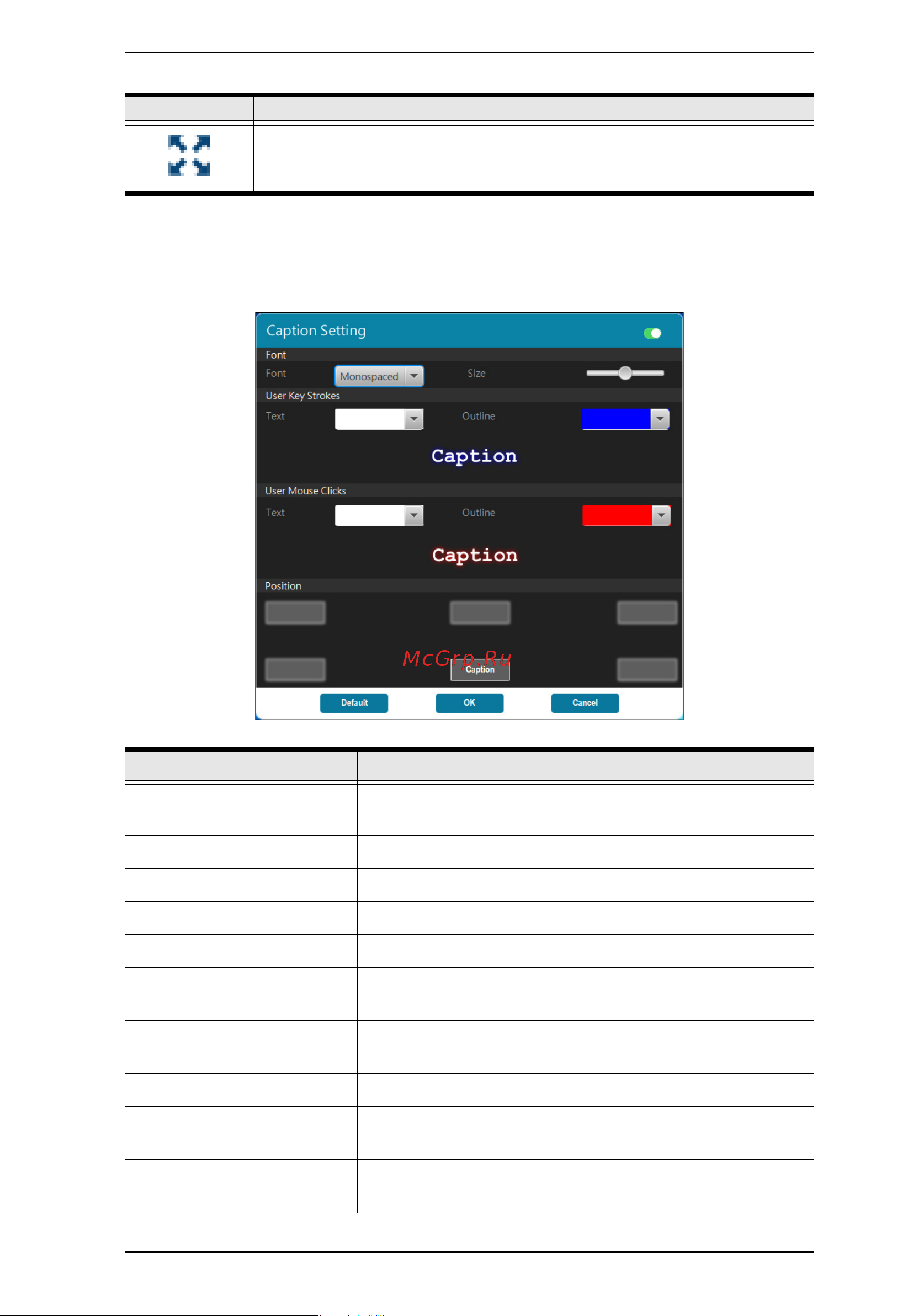

A settings menu will pop-up clicking this option as shown:
Full Screen: This icon expands the Video Log Viewer window to fit the
the entire screen. To exit Full Screen mode, click the Full Screen icon
again.
Settings Description
Caption Setting Click the on/off switch (top-right of menu window) to turn
on/off the caption function
Font
Font Choose the font of the caption.
Size Drag the slider to adjust the size of the caption.
User Key Stroke
Text Click the drop-down menu to choose the font color for
key strokes.
Outline Click the drop-down menu to choose the color of the font
outline for key strokes.
User Mouse Clicks
Text Click the drop-down menu to choose the font color for
mouse clicks.
Outline Click the drop-down menu to choose the color of the font
outline for mouse clicks.
