CCVSR User Manual
16
Note: Since this is the first time you are logging in, use the default Username:
administrator; and the default Password: password.
4. If you are logging in for the first time, the system will prompt you to
change the password.

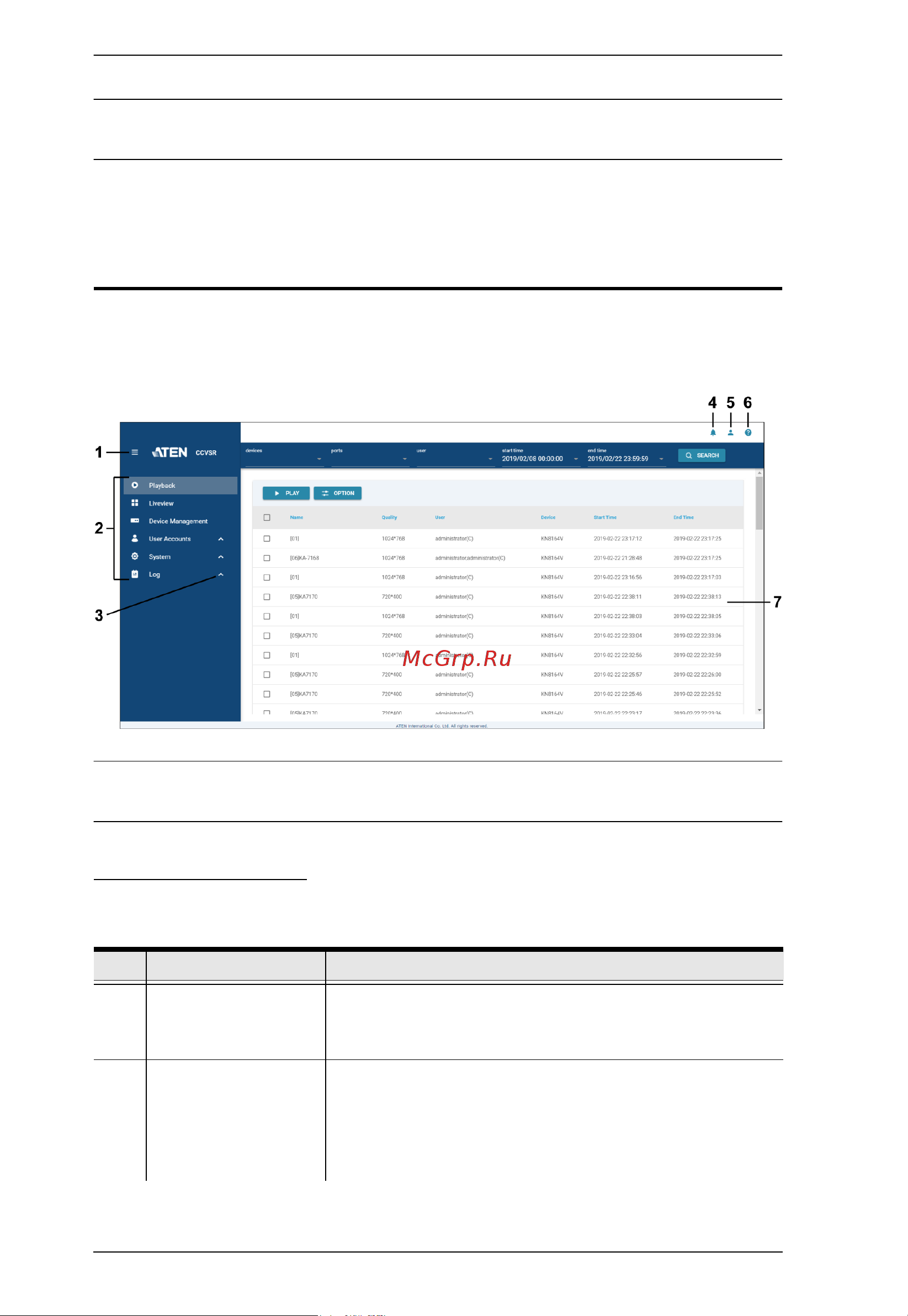

The Web Browser Main Page
Once users login and are authenticated, the Web Browser Main Page comes up,
with the Playback page displayed:
Note: The screen depicts a Super Administrator’s page. Depending on a user’s
type and permissions, not all of these elements appear.
Page Components
The web page screen components are described in the table, below:
No. Item Description
1 Expand / Collapse
Main Menu
Click this icon to expand or collapse main menu.
The sub-menu can be accessed by clicking on their main
operation categories.
2 Main Menu Main Menu contains the Video Session Recording
Software’s main operation categories. The items that
appear here are determined by the user’s type, and the
authorization options that were selected when the user’s
account was created.
