CCVSR User Manual
94
Export/Import

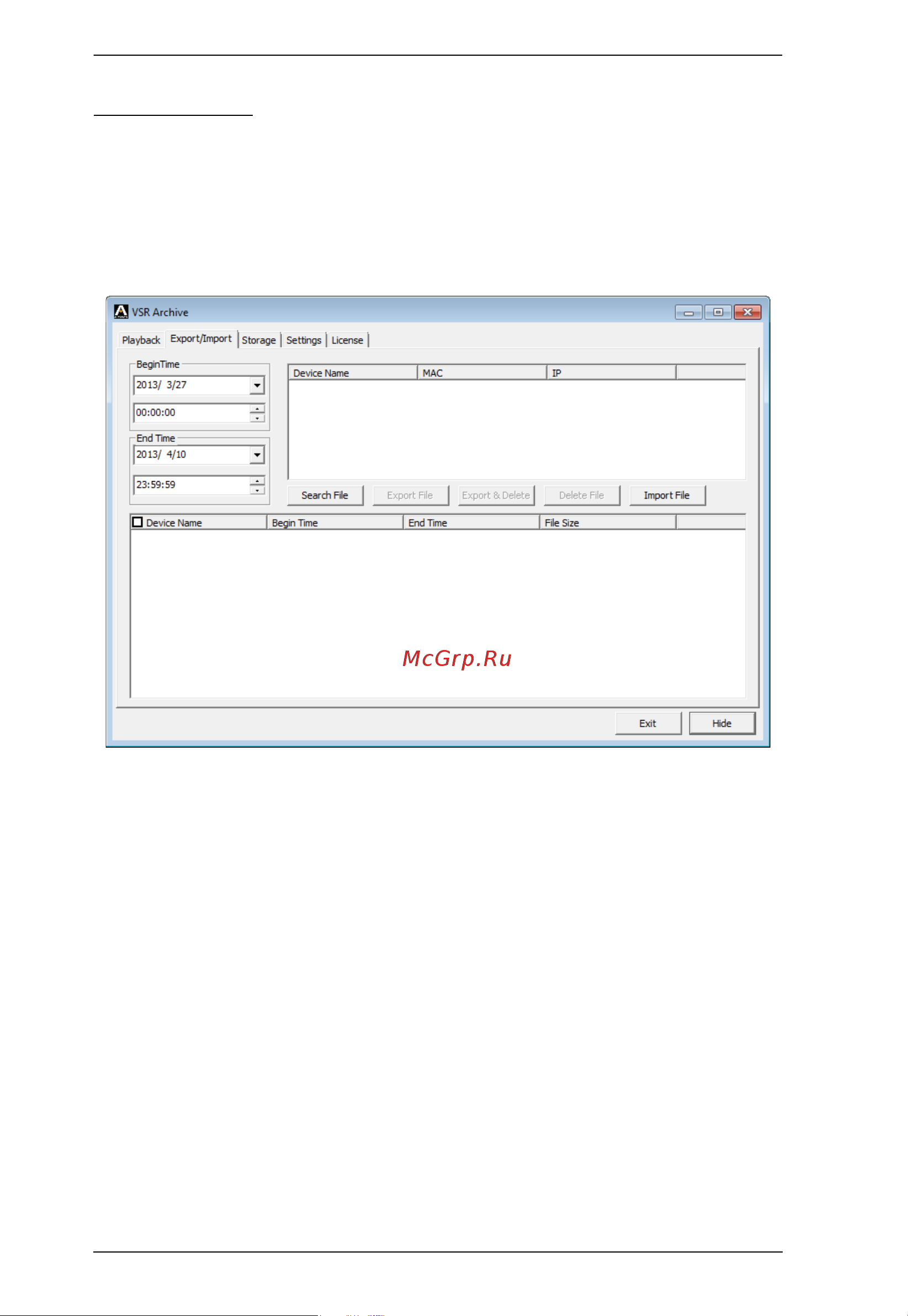

The Export/Import tab is used to export and import video log files in a single
database (.vse) file format. The database (.vse) files can combine a large
number of individual video logs into a single compressed file to reduce disk
space, which can be exported for storage and imported for use. The Export/
Import tab also allows you to import individual video log files (.dat) created on
the CCVSR Primary Server.
You can search for files to export (which are already archived) by selecting a
Device Name and clicking Search File; or manually import .vse or .dat files
into the Archive Server by clicking Import File. For more information on
imported files see Import File below.
Begin Time/End Time
This section allows you to filter the search results by the begin and end time.
The Begin Time and End Time refers to the time when the actual video
recording took place on the KVM switch.
Device Name
This section lists the name(s) of the KVM switches which have been added to
the Primary CCVSR server. You can select a device(s) and click Search for a
list of individual video log files which have been archived from that KVM
switch. After doing so you can select video logs to export into a .vse database
file.
