Aten CCVSR [73/131] Advanced notification

Chapter 8. System

Advanced (Notification)

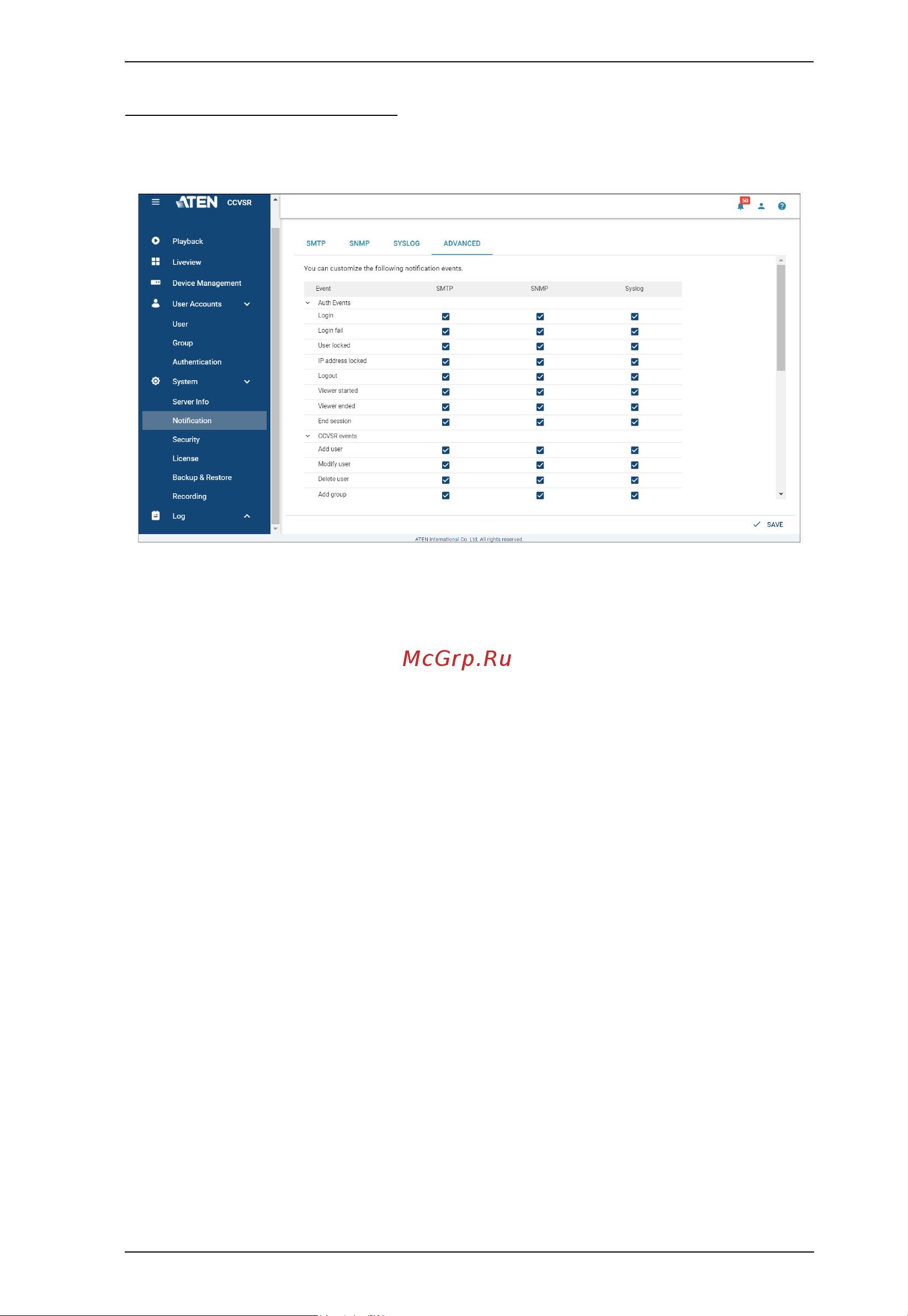

The Advanced (Notification) page lets you decide which events trigger a

notification, and how the notifications are sent out:

Notifications can be sent via SNMP trap, SMTP email, written to the SysLog

file, or any combination of the three. A check mark indicates that notification

of the event is permitted for the method specified in the column heading. An

empty box indicates that notification is not restricted.
