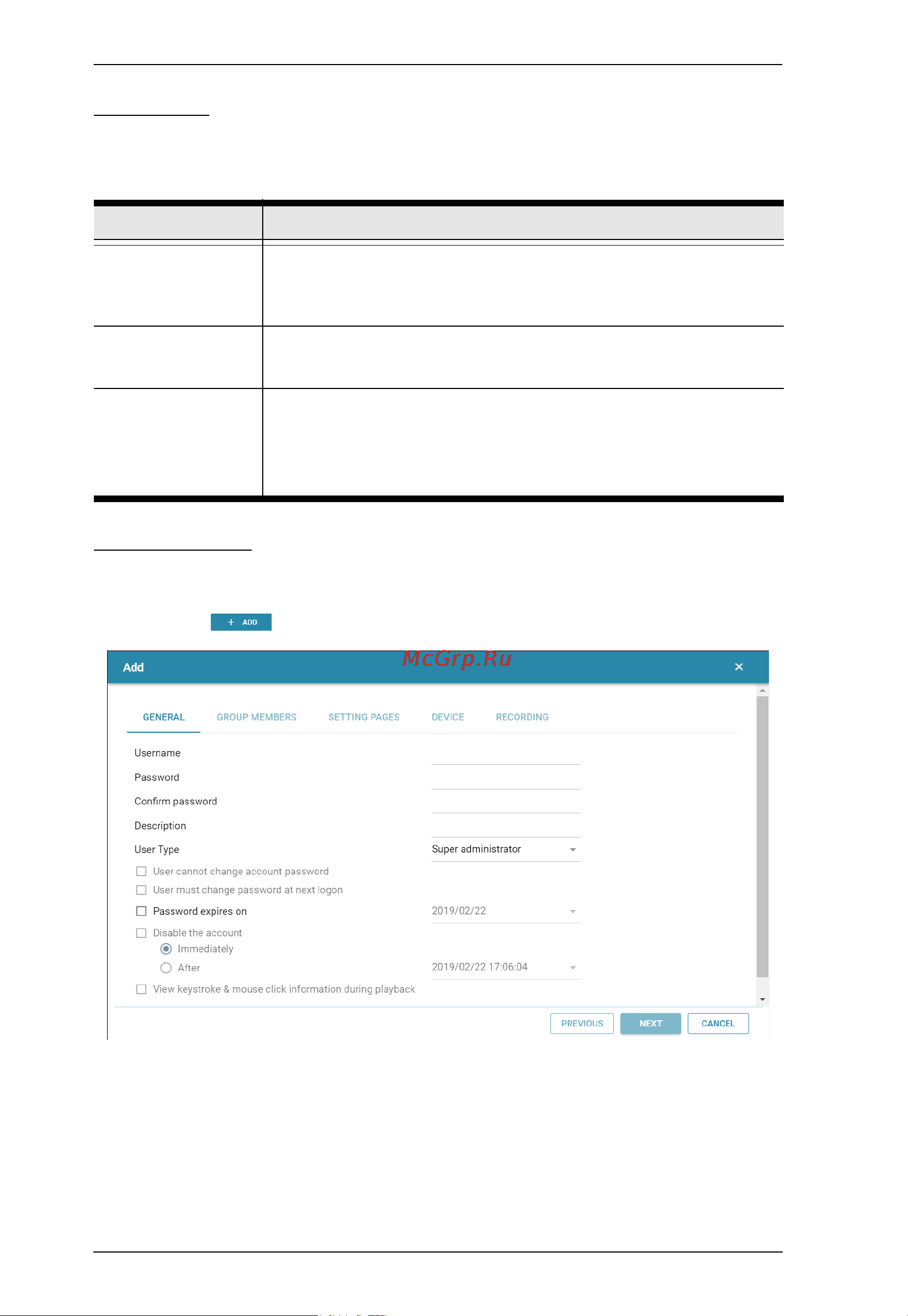

Aten CCVSR [54/131] User type

CCVSR User Manual

User Type

The Video Session Recording Software supports three types of users, as shown

in the table, below:

Adding Users

To add a user, and assign user permissions, do the following:

1. Click the button for the pop-up window below:

User Type Role

Super

Administrator

Access and manage ports and devices. Manage Users, and

Groups. Configure the overall installation. Configure personal

working environment.

Administrator Access and manage authorized ports and devices. Manage

Users and Groups. Configure personal working environment.

User Access authorized ports and devices. Manage authorized ports

and devices; configure personal working environment.

Note: Users who have been given permission to do so, may

also manage other users.
