Chapter 1. Introduction
7
2. All videos recorded on the CCVSR are compressed prior to being
stored.
3. Your computer’s CPU resource is used when the system compresses
the recorded videos. The CPU resource is released as soon as the
compression is complete.
4. For CN9950, 4K’s required bandwidth is lower than that of 1080P
under surveillance scenario because its FPS is lowered when reaching
the upper bound of its performance.

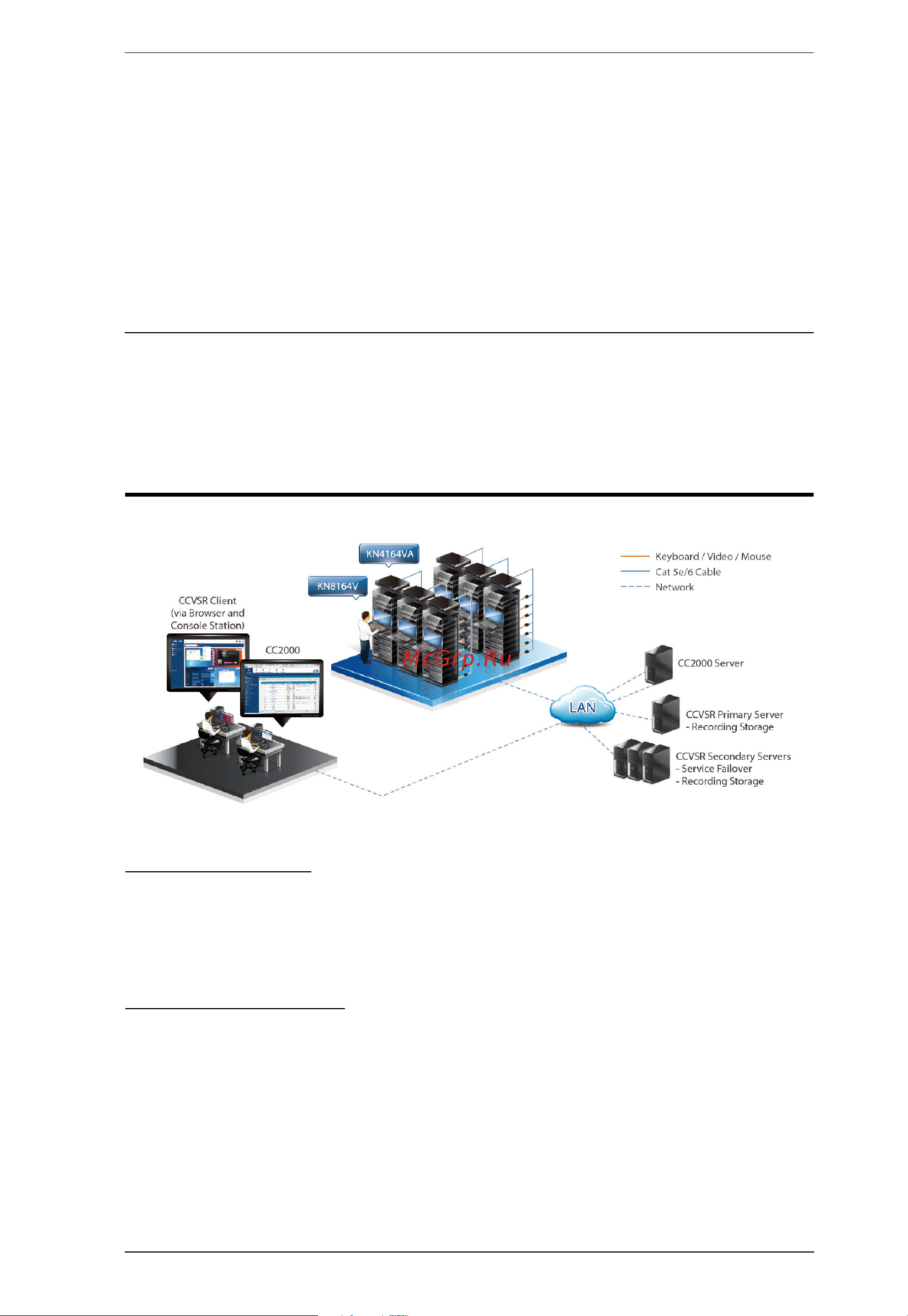

An Example of CCVSR Deployment
Primary Servers
Management - A Primary Server is the central management software used to
record, view, and manage all aspects of a CCVSR installation. All Secondary
Servers, Archive Servers, and Nodes work through the Primary Server.
Secondary Servers
Storage - Secondary Servers reduce the work load and provide extended
storage for the Primary Server - with limited configuration functionality.
Redundancy - When the primary server fails to work, one of the secondary
servers will work as primary server temporarily for service availability.
