Chapter 10. CCVSR Archive Server
87
Chapter 10
CCVSR Archive Server
Overview
The CCVSR Archive Server allows you to store, playback, import, and export
data created on CCVSR servers. The software automatically transfers a copy
of the video log files from the Primary CCVSR server into an organized
archive separate from the main system. This gives you the ability to purge older
files from the main system but keep a safe archive of all videos for future use.
The Archive Server runs in the background and updates the archive
automatically every 15 minutes. To purchase this software, please
see Licenses, page 9, for details.
Installing the CCVSR Archive Server
Starting the Installation
To install the Archive Server on a Windows system, insert the USB License
Key into your computer, and do the following:
1. Put the software CD that came with your package into the computer’s CD
drive, or open the folder with the installation file.
2. Go to the folder where the setup.exe is located and double click it. A

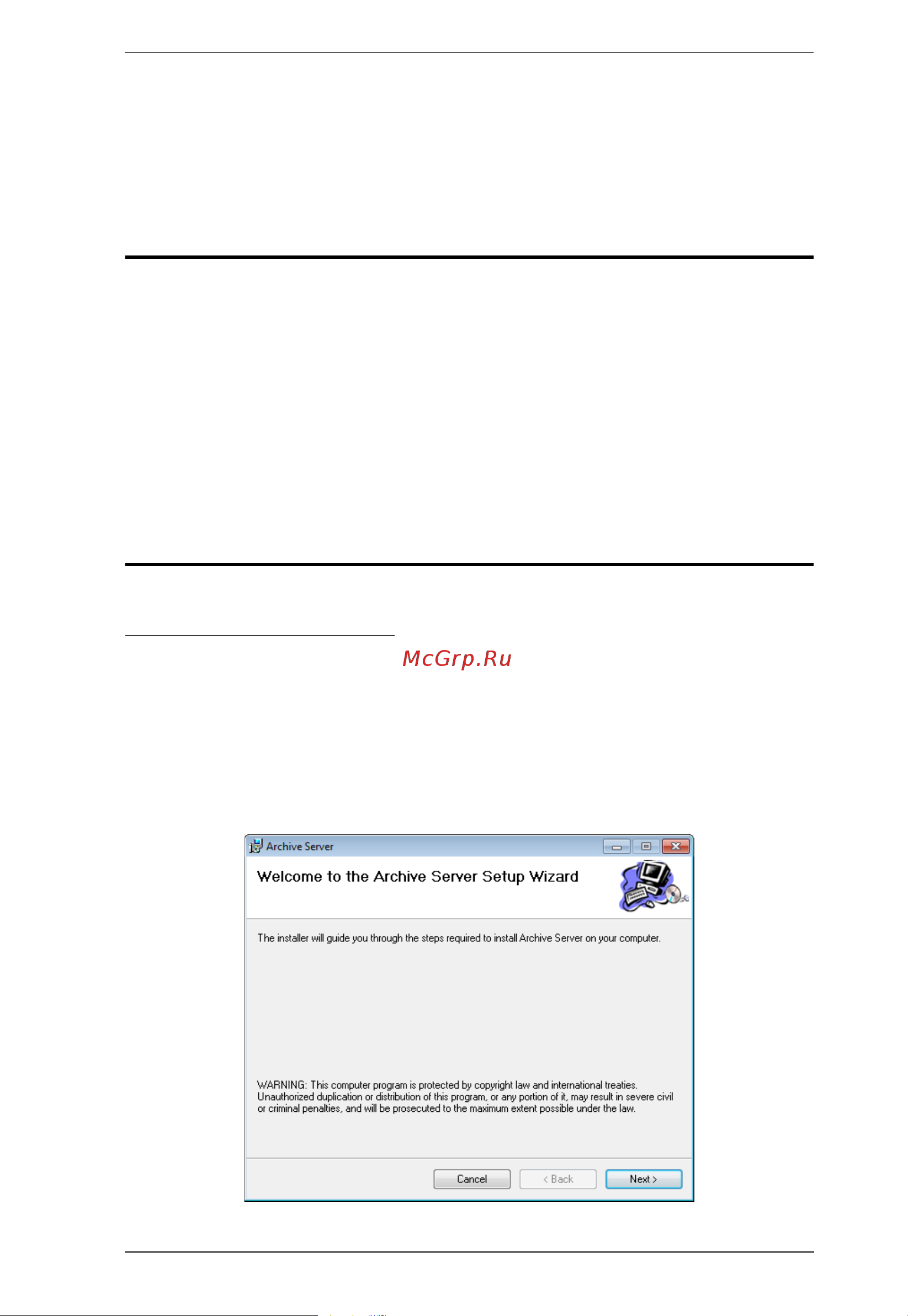

screen similar, to the one below, appears:
