Aten CCVSR [122/131] Upgrade succeeded

CCVSR User Manual

112

11. Click Logout to exit.

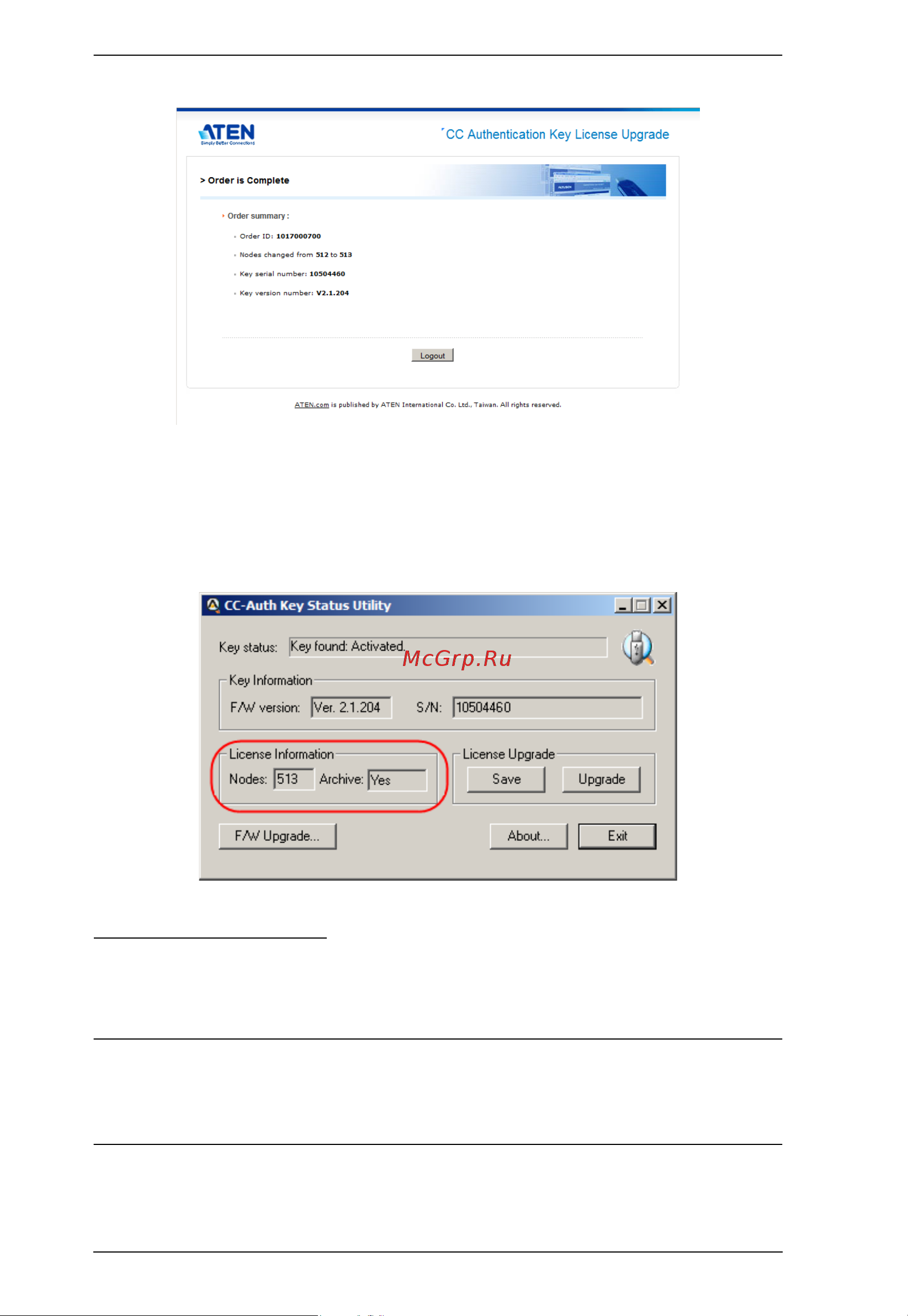

You can use the Key status utility (CCAuthKeyStatus.exe) to confirm that the

number of licenses on the key has been changed to reflect the successful

upgrade:

Upgrade Succeeded

After the upgrade has succeeded, the dealer/distributor receives an email from

Altusen informing him that the upgrade has been completed online. For

example:

Your order (Order ID: 1017000700) has been completed successfully by

the online utility.

The key (PSN: 10504460) server number has been upgraded from 512 to

513.
