Chapter 2. CCVSR Installation
11
Chapter 2
CCVSR Installation
Overview
This chapter describes how to install the Video Session Recording Software
(CCVSR) on a computer. The CCVSR application runs background services
for the Video Session Recording Software to operate and is used to set basic
server configurations. The CCVSR application must be running for the Video
Session Recording Software’s web browser features to work. To install the
CCVSR software on a Linux server, see Linux Installation, page 100.
Installing the CCVSR Software
Starting the Installation
To install the CCVSR application on a Windows system, do the following:
1. Put the CD that came with your package into the computer’s CD drive.
2. Go to the folder where the setup.exe file is located, and execute it. A

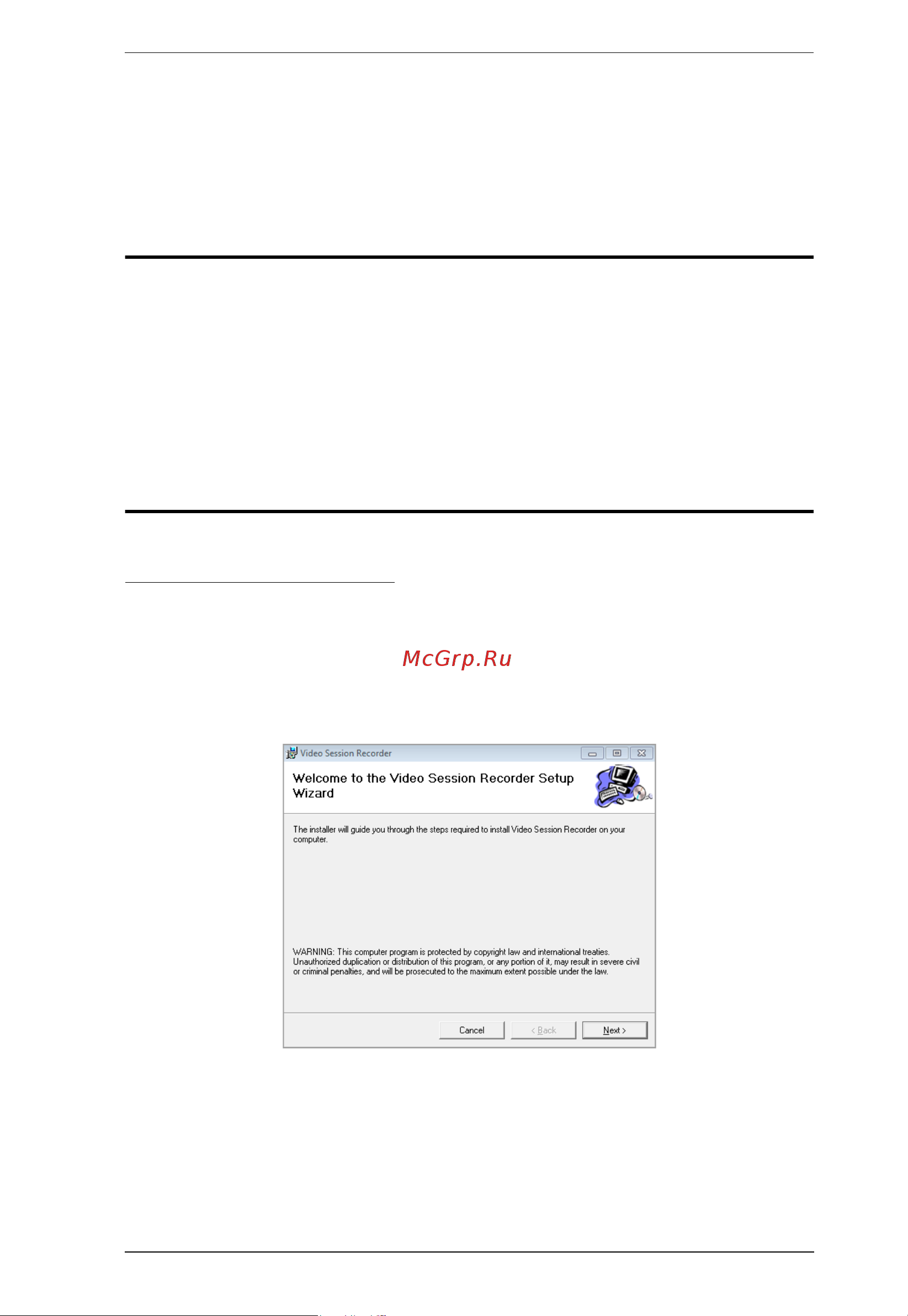

screen, similar to the one below, appears:
Click Next to continue.
3. On the Select Installation Folder page, specify the installation folder, or
click Browse to choose the location where you want to install it. Then
choose if you want to install it for yourself (Just me), or for anyone who
