Chapter 8. System
71
License
The CCVSR license controls the total number of secondary servers and nodes
permitted, including used and available, on your CCVSR installation.
Upon completion of the CCVSR software installation, a default license for one
primary server is automatically provided. To add more CCVSR nodes and/or
secondary servers, you must upgrade the license.
To upgrade the license, contact your dealer to purchase a license key for the
number of nodes and secondary servers desired.
After receiving your purchased USB license key, you can upgrade your
CCVSR license using one of the two following methods:
Upgrade by directing inserting the USB license key into the primary
server.
Upgrade without directly inserting the USB license key.

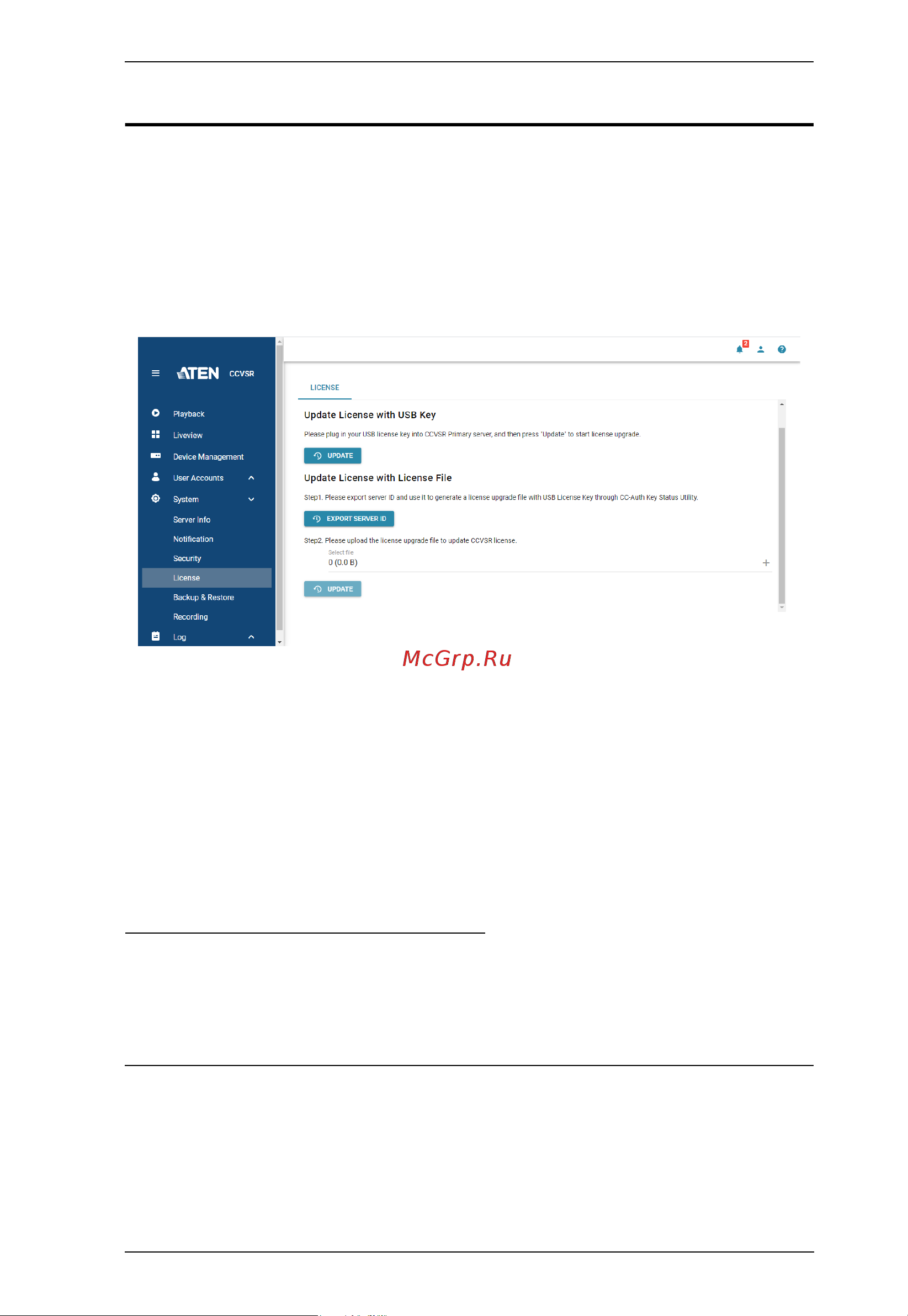

Upgrade License with USB Key
1. Insert the license key into a USB port on your CCVSR server.
2. Log into the CCVSR application, go to License, and click Update under
Update License with USB Key.
Note: 1. Once the upgrade has completed, it is no longer necessary to keep the
license key plugged into the USB port. Remove the key and place it
somewhere safe, since you will need it for future upgrades.
