Aten CCVSR [45/131] Status

Chapter 5. Liveview

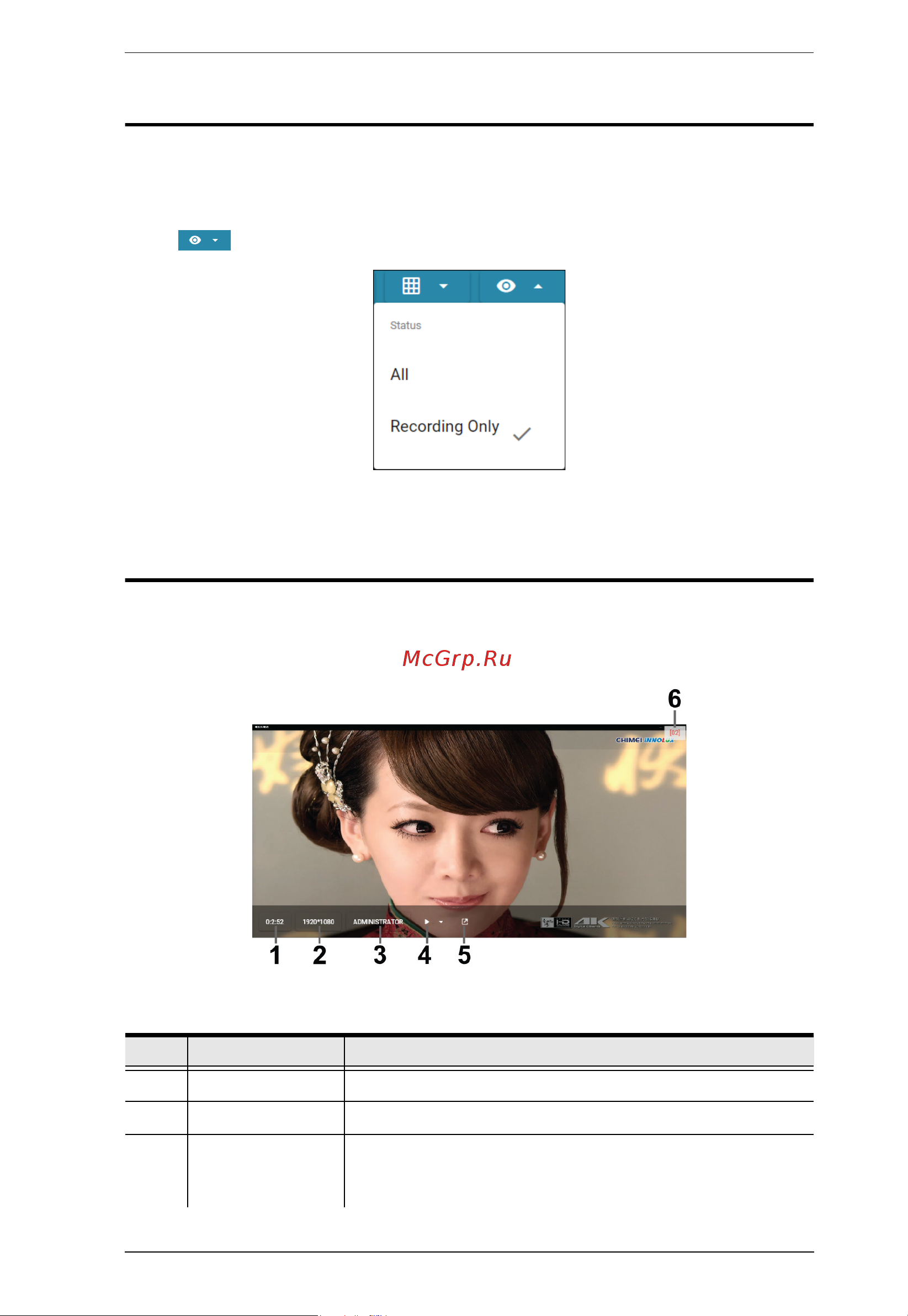

Status

The status button is another filter that allows you to select whether to view all

the ports or only the ports that are recording on the centralized view.

Click for a drop-down menu and select between All or Recording Only:

Port Info / Playback / Liveview Function

Port information, playback and liveview function will appear when moving

your mouse cursor over a port on the centralized view.

The labeled components are explained in the table below:

No. Item Description

1 Recorded time This displays how long the port has been recorded for.

2 Resolution This displays the resolution of the liveview.

3 Logged in

Username

This displays the username of the user accessing the port.

“Local console” is displayed when local console is

accessed.
