Aten CCVSR [53/131] Chapter 7

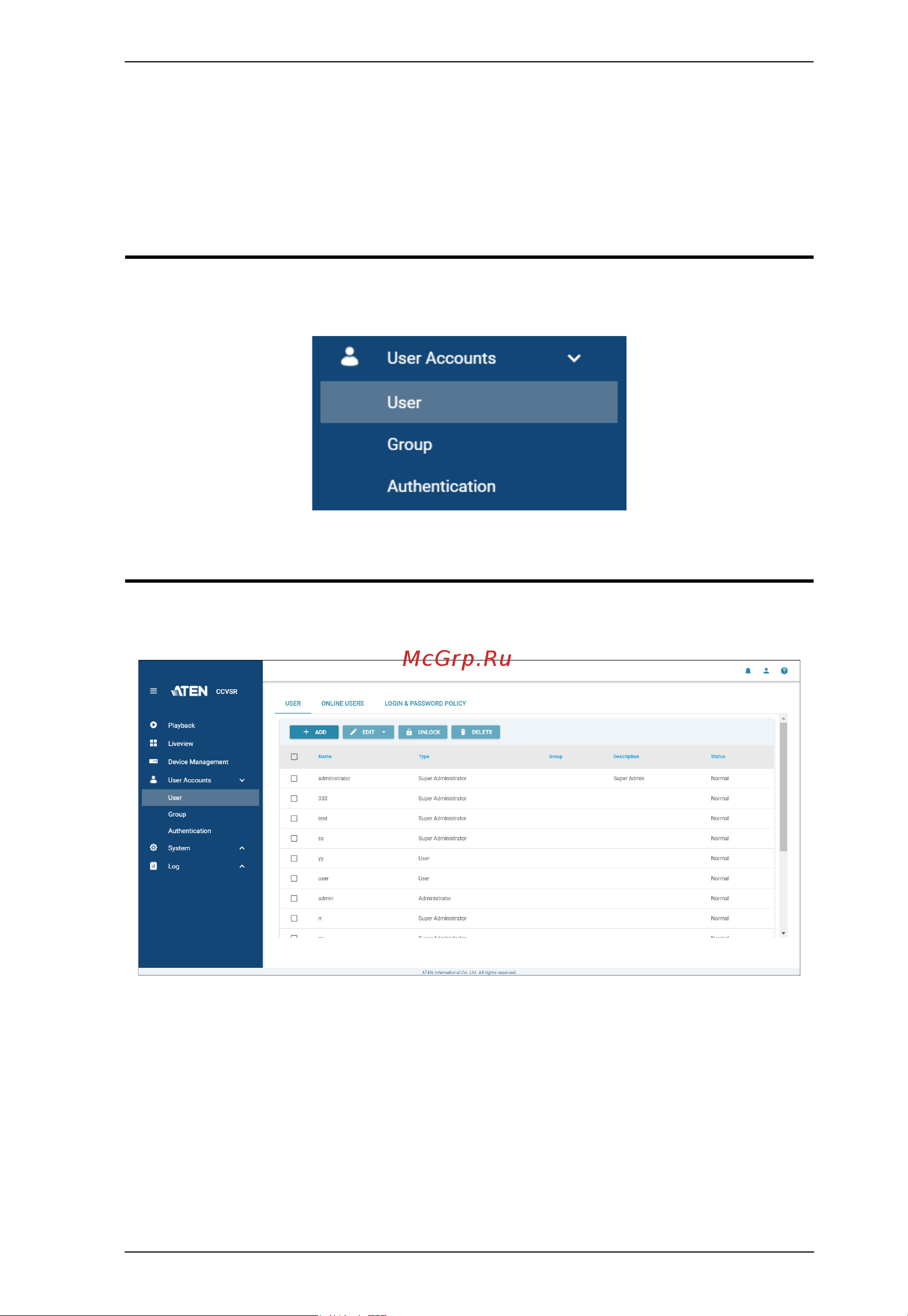

Chapter 7. User Accounts

Chapter 7

User Accounts

Overview

The User Account in the main menu expands into 3 sub-menus.

User

Below is the User sub-menu:

The main panel provides a more detailed user information at-a-glance.

The sort order of the information displayed can be changed by clicking the

column headings.

The buttons on top of the main panel are used to manage users.
