Chapter 5. Liveview
31
Chapter 5
Liveview
Overview
The Liveview page allows the user to have a centralized liveview of a specific
group of ports or select a particular port for liveview display.
Centralized Liveview

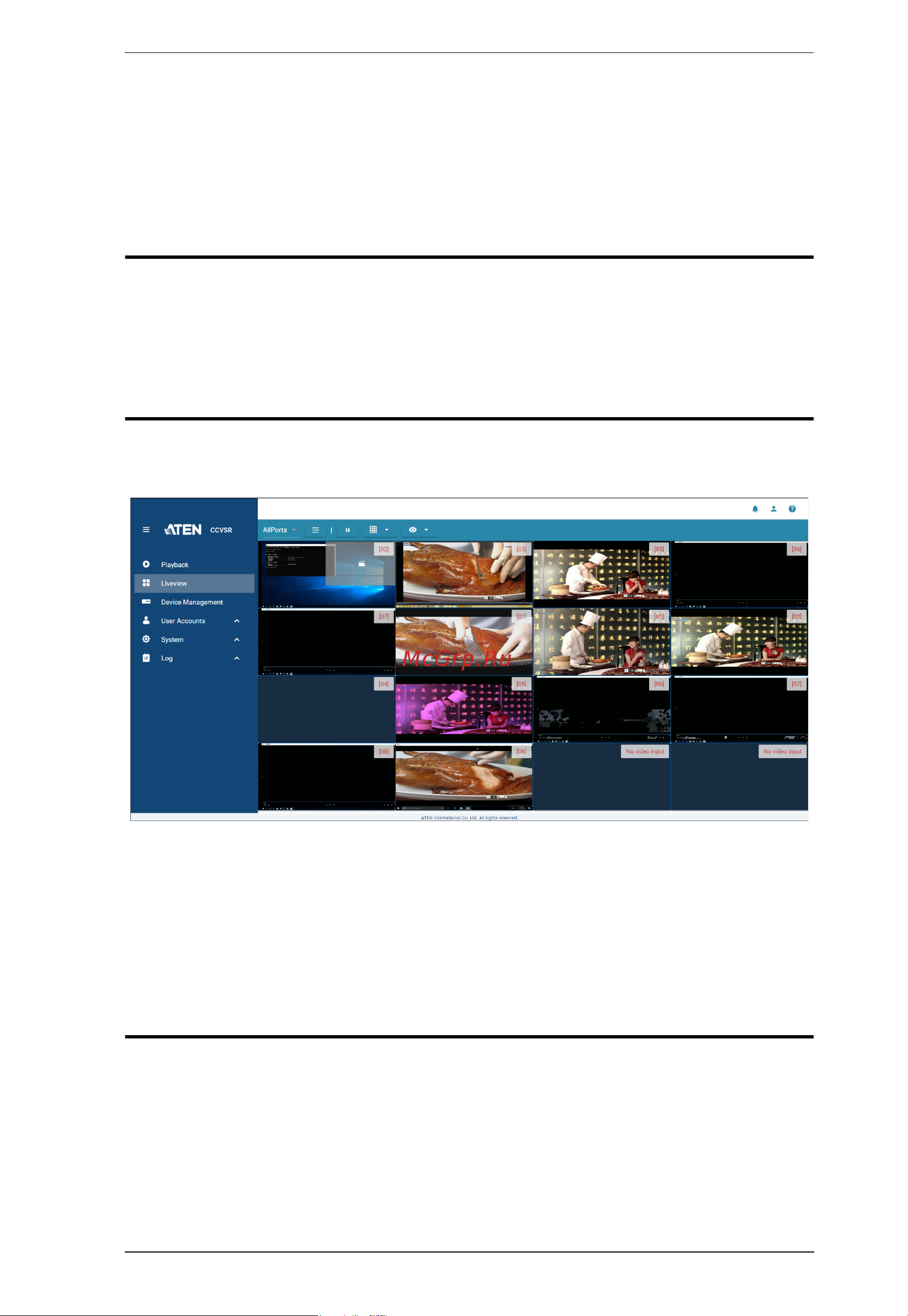

Clicking the Liveview brings you to the page shown below:
The page provides a centralized liveview of the available ports.
If you have setup a favorite, you may choose to only display the ports within
the favorite. You may also choose to only display Recording Only ports. Refer
to the sections below for more details.
Display List
Clicking the display list drop-down menu will show the available lists.
Initially, AllPorts is the only available option as all the ports will be shown in
the centralized liveview.
If you have created favorite(s), the name of the favorite will also be shown in
the drop-down menu.
