Aten CCVSR [51/131] Edit kvm devices

Chapter 6. Device Management

Edit KVM Devices

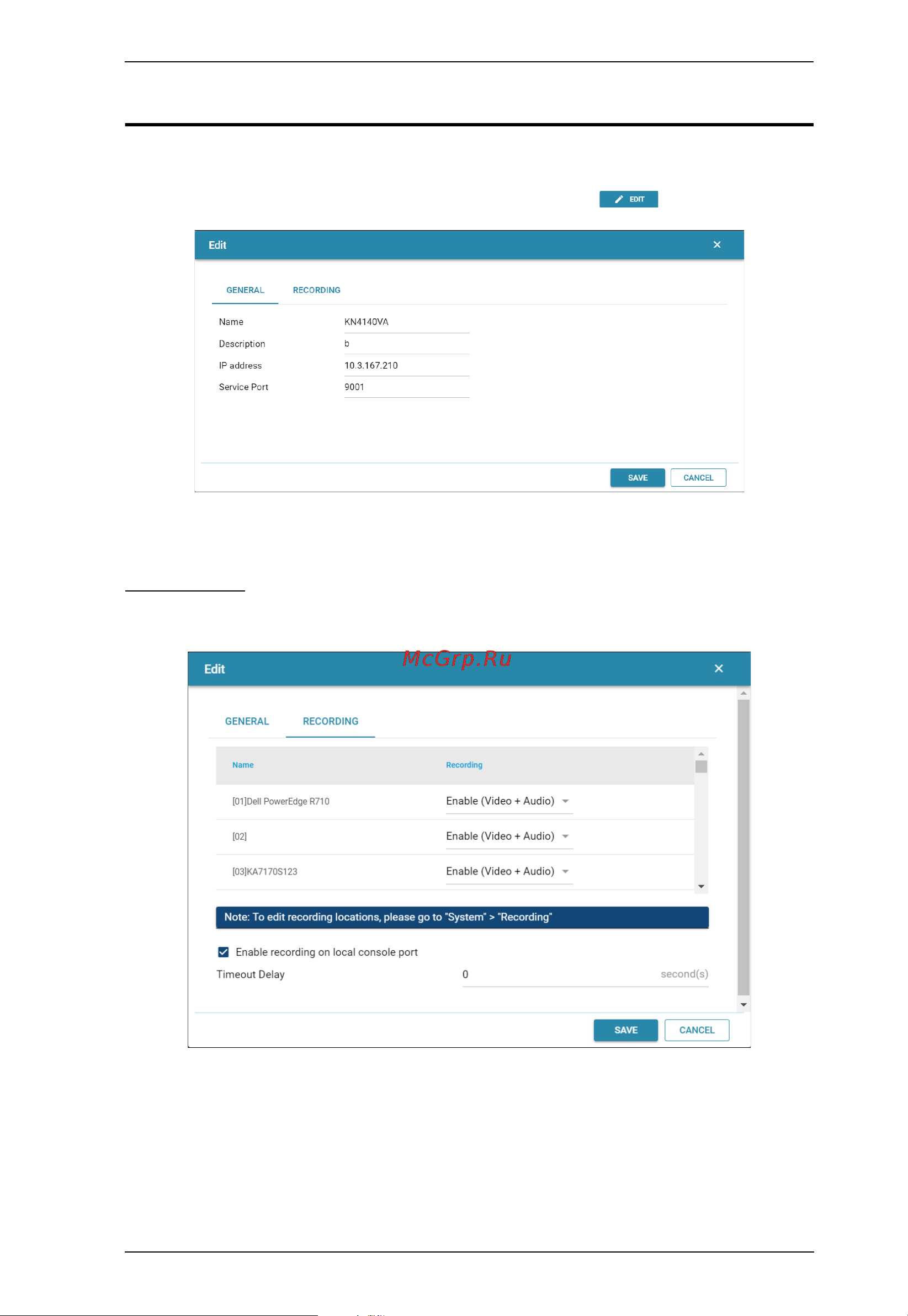

To edit the name, description, IP address, service port and recording options,

check the checkbox of the KVM device and click the button:

Edit the options and click Save to save.

Recording

Click the Recording tab to edit recording options:

Enabling Video/Audio Recording

To enable the ports of a KVM device to record video + audio or video only

sessions, do the following:

1. Check the KVM device’s checkbox.
