Aten CCVSR [42/131] Favorite setting

CCVSR User Manual

Favorite Setting

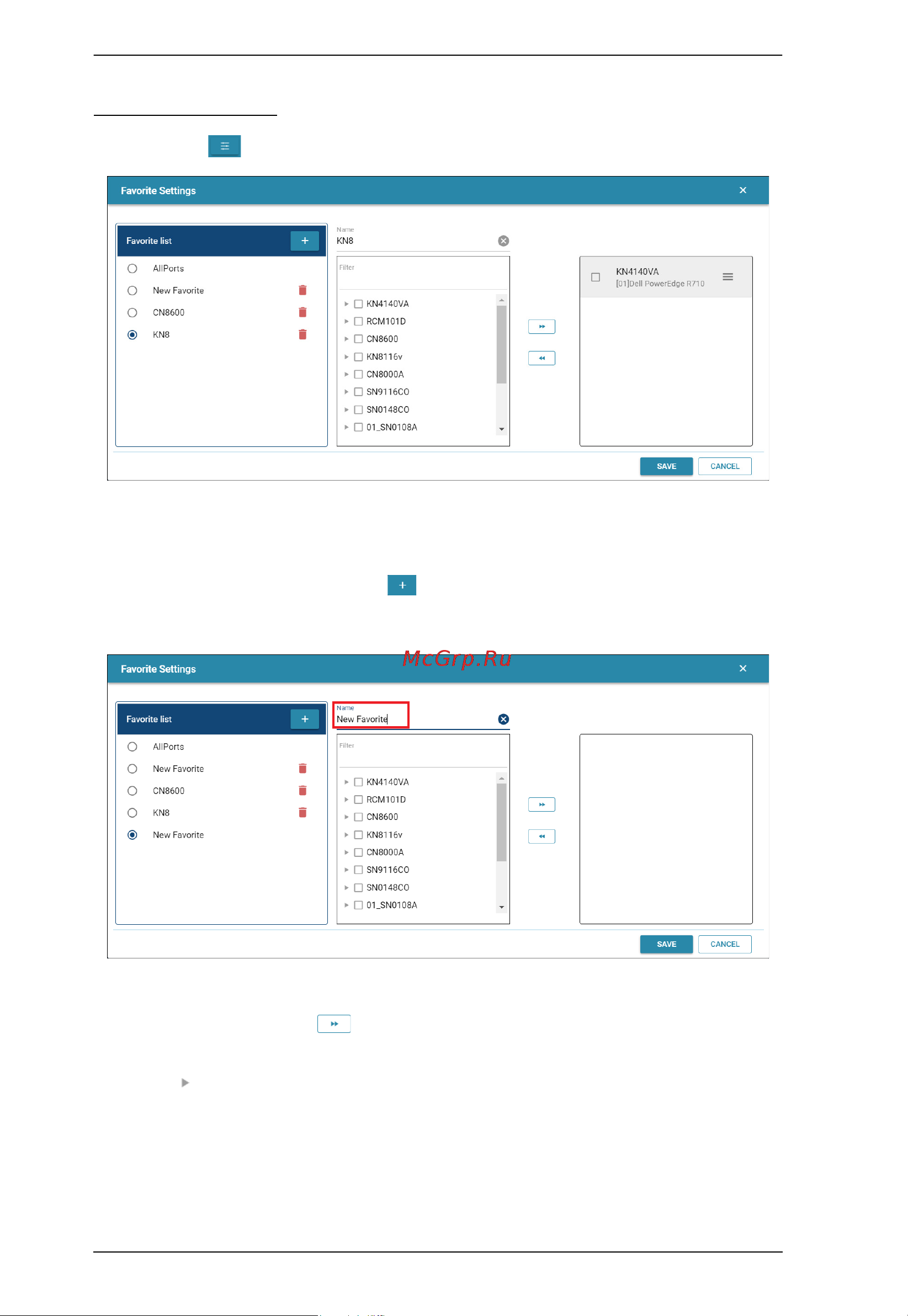

Clicking the icon will bring you to Favorite Settings:

Create Favorite

1. To create a favorite, click the icon.

2. The system will ask you to change the name of the favorite:

3. In the left panel, check the device checkbox that you wish to add to the

favorite and click the button. The device will be shifted to the right

panel.

Click for a device’s ports if you wish to select the ports individually.
