Aten CCVSR [86/131] Adding secondary ccvsr servers

CCVSR User Manual

Adding Secondary CCVSR Servers

The Secondary CCVSR Server you are adding must be on a computer available

over the network. To add a CCVSR Server, do the following:

1. Click Add.

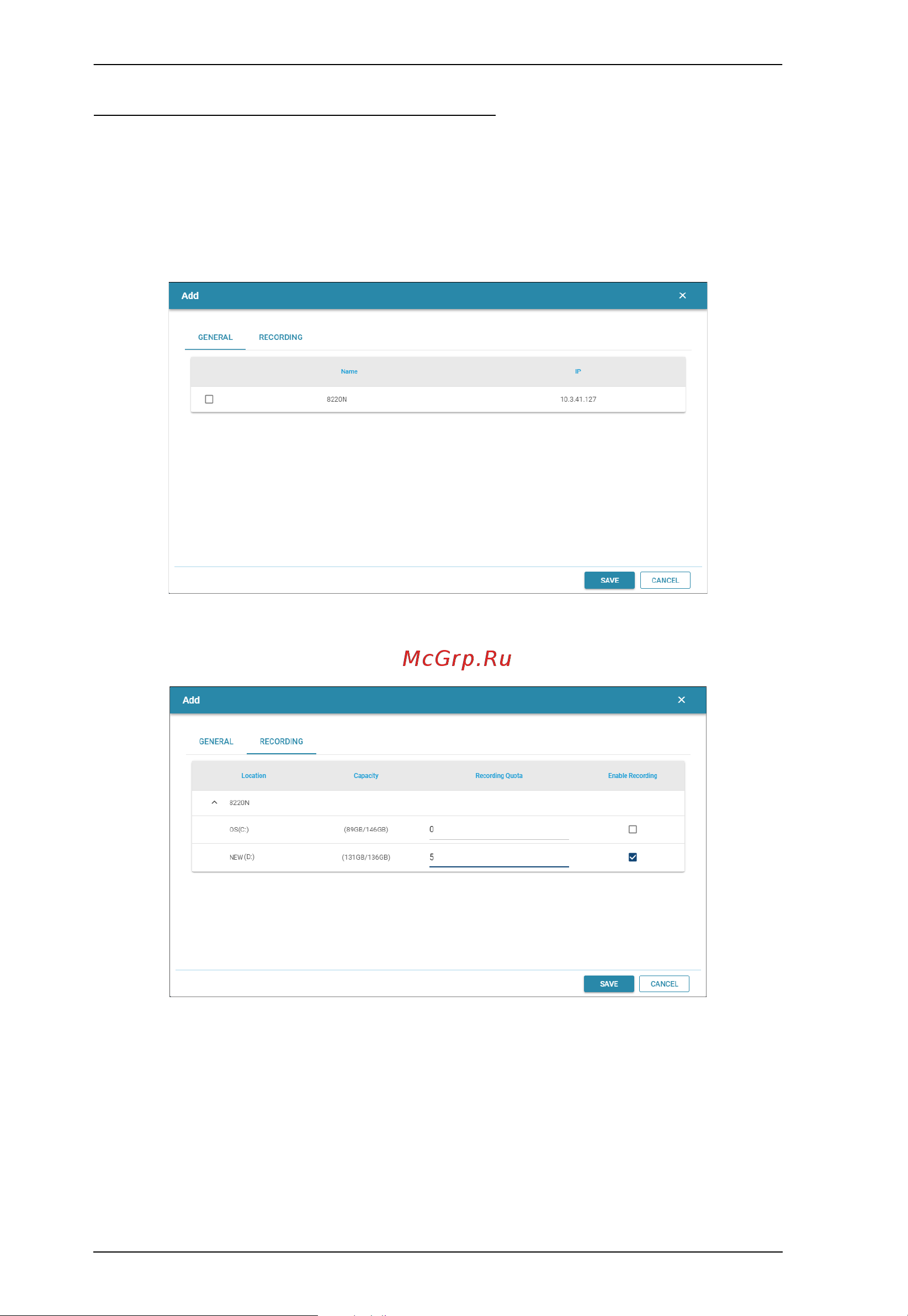

2. A pop-up screen appears to bring you to the General tab:

3. Select a CCVSR Server from the list (in the same LAN as the primary

server) and click Next for the Recording tab:

4. Select the recording location by checking the checkbox of the Enable

Recording column. Enter a value in the corresponding field of the

Recording Quota column.

5. Click Save to save the configuration and the CCVSR Server will now

appear on the Recording main page.
