Aten CCVSR [94/131] Option

CCVSR User Manual

Option

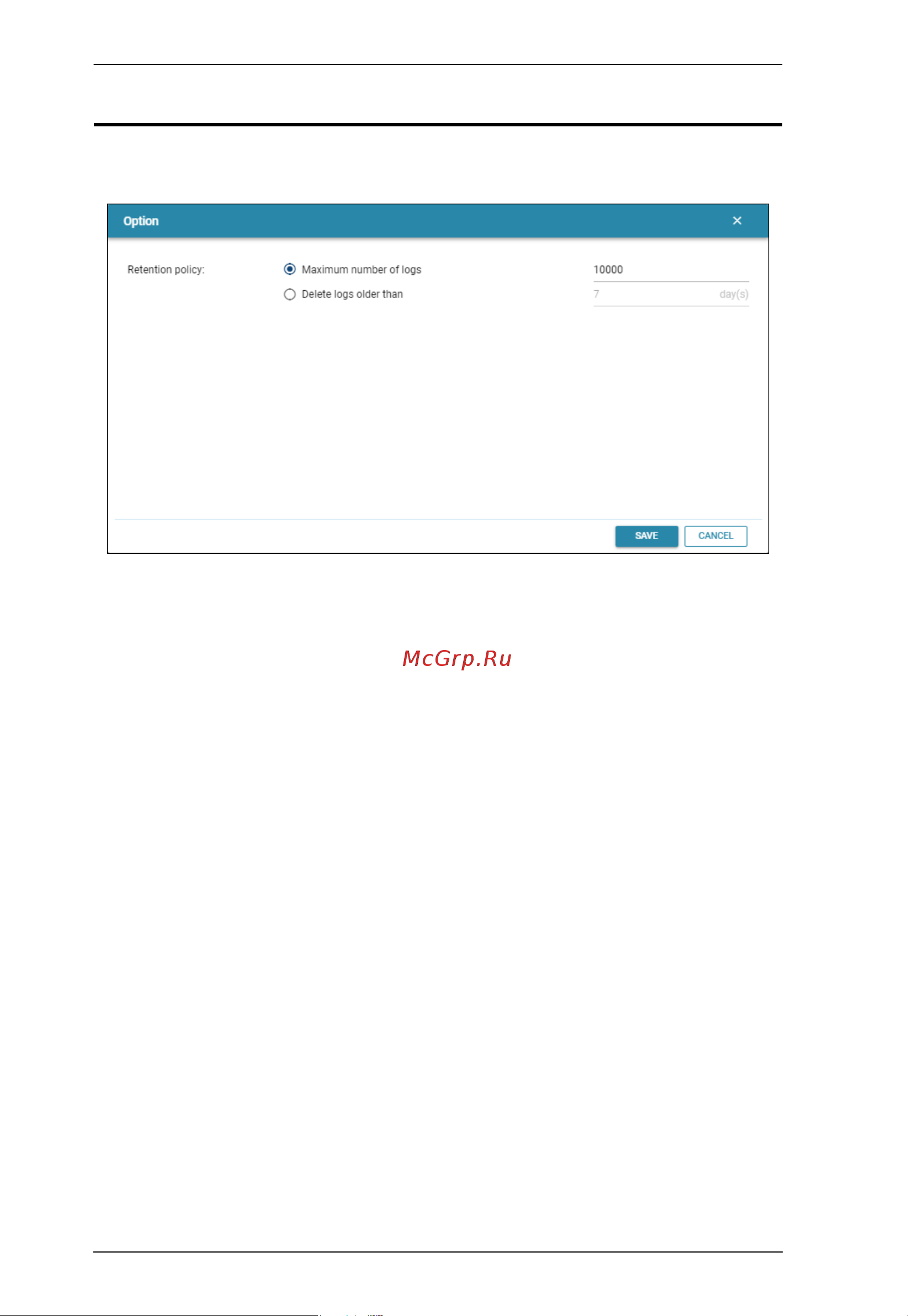

You can set the retention policy of the logs by clicking the Option button:

The system is set to keep a maximum of 10,000 log events by default. The

system will overwrite the oldest entries. You can enter a different number here.

If you wish to keep the log events within a number of days, select Delete logs

older than and enter a value (in days). Log entries older than the entered value

will be discarded automatically.
