Chapter 3. The User Interface
15
Chapter 3
The User Interface
Overview
The Video Session Recording Software’s user interface is accessed via web
browser and contains the main features and functions. This chapter explains
how to login to the Video Session Recording Software and highlights the
browser components.
Browser Login
The Video Session Recording Software is accessed via an Internet browser
running on any platform. To access the Video Session Recording Software’s
browser interface, the CCVSR application must be started.
To access the Video Session Recording Software, do the following:
1. Open the browser and specify the IP address and service port of the Video
Session Recording Software you want to access in the browser's location
bar.
For example:
https://192.168.0.100:9443
2. When a Security Alert dialog box appears, accept the certificate – it can be
trusted. If a second certificate appears, accept it as well (see Trusted
Certificates, page 101).

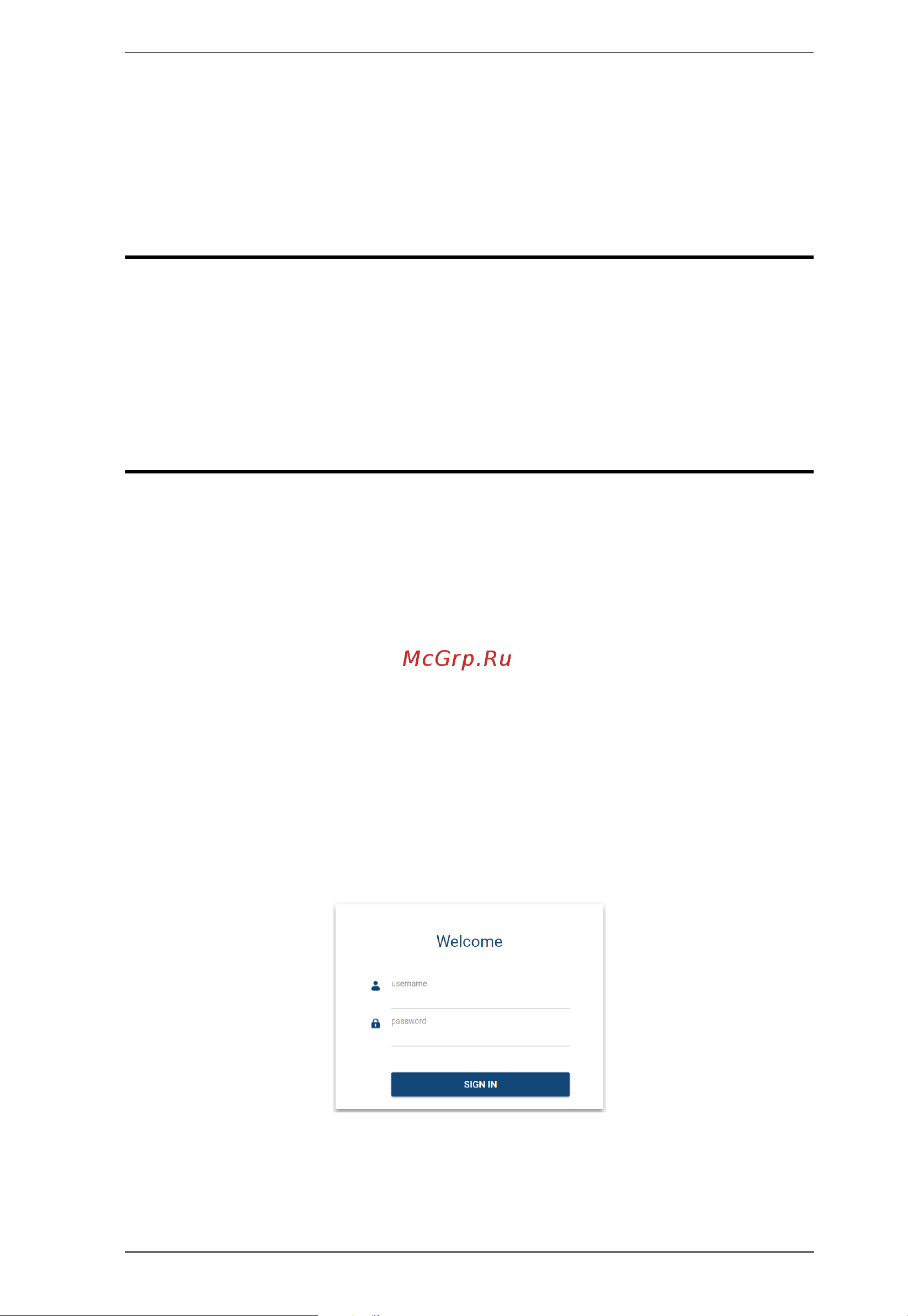

Once you accept the certificate(s), the login page appears:
3. Provide your username and password, then click Login to bring up the
Web Main Page.
