CCVSR User Manual

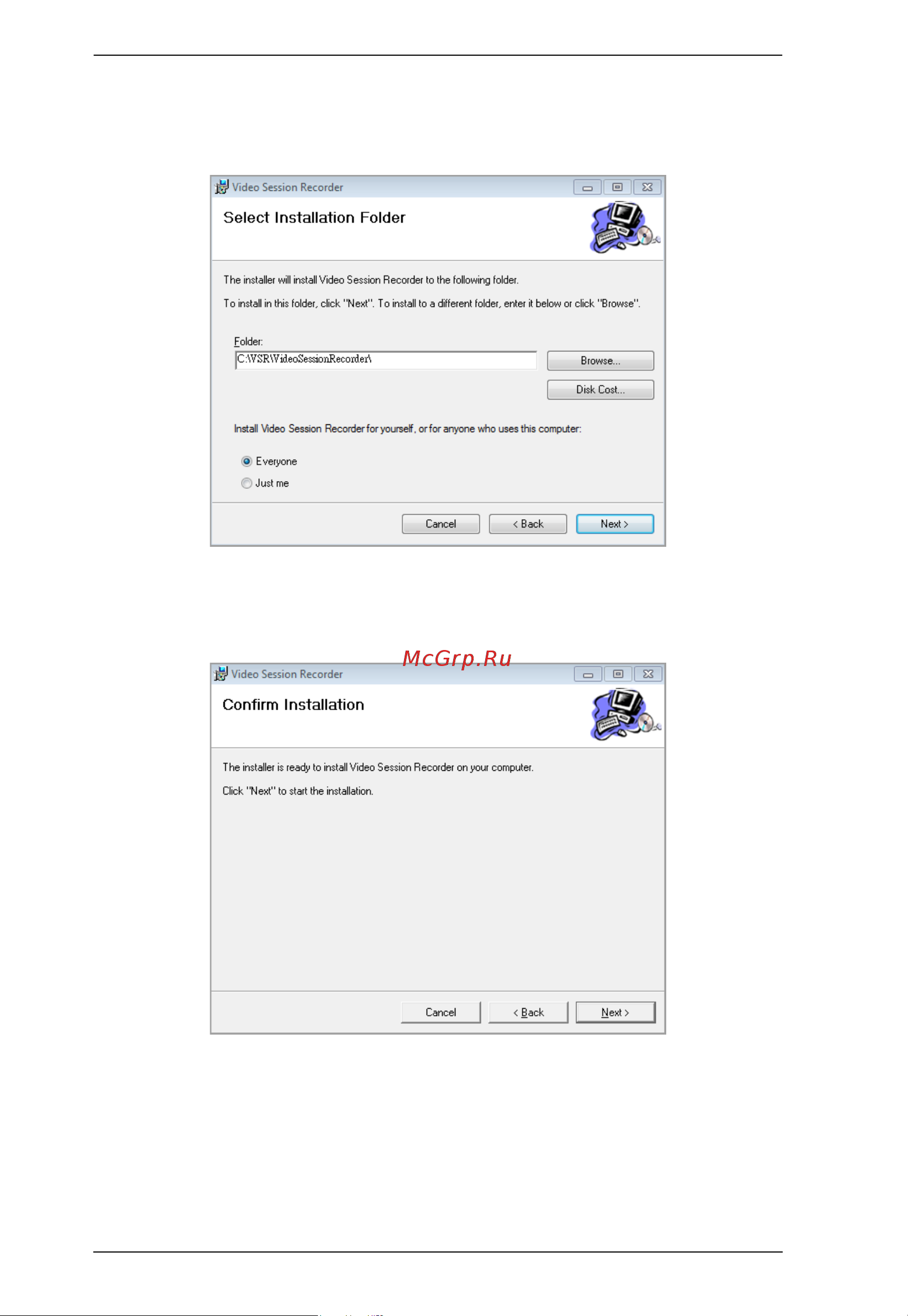

uses this computer (Everyone). Click Disk Cost to view available drives

and disk space.

Click Next to continue.

4. The Confirm Installation window appears, click Next to continue:
