CCVSR User Manual
26
Settings

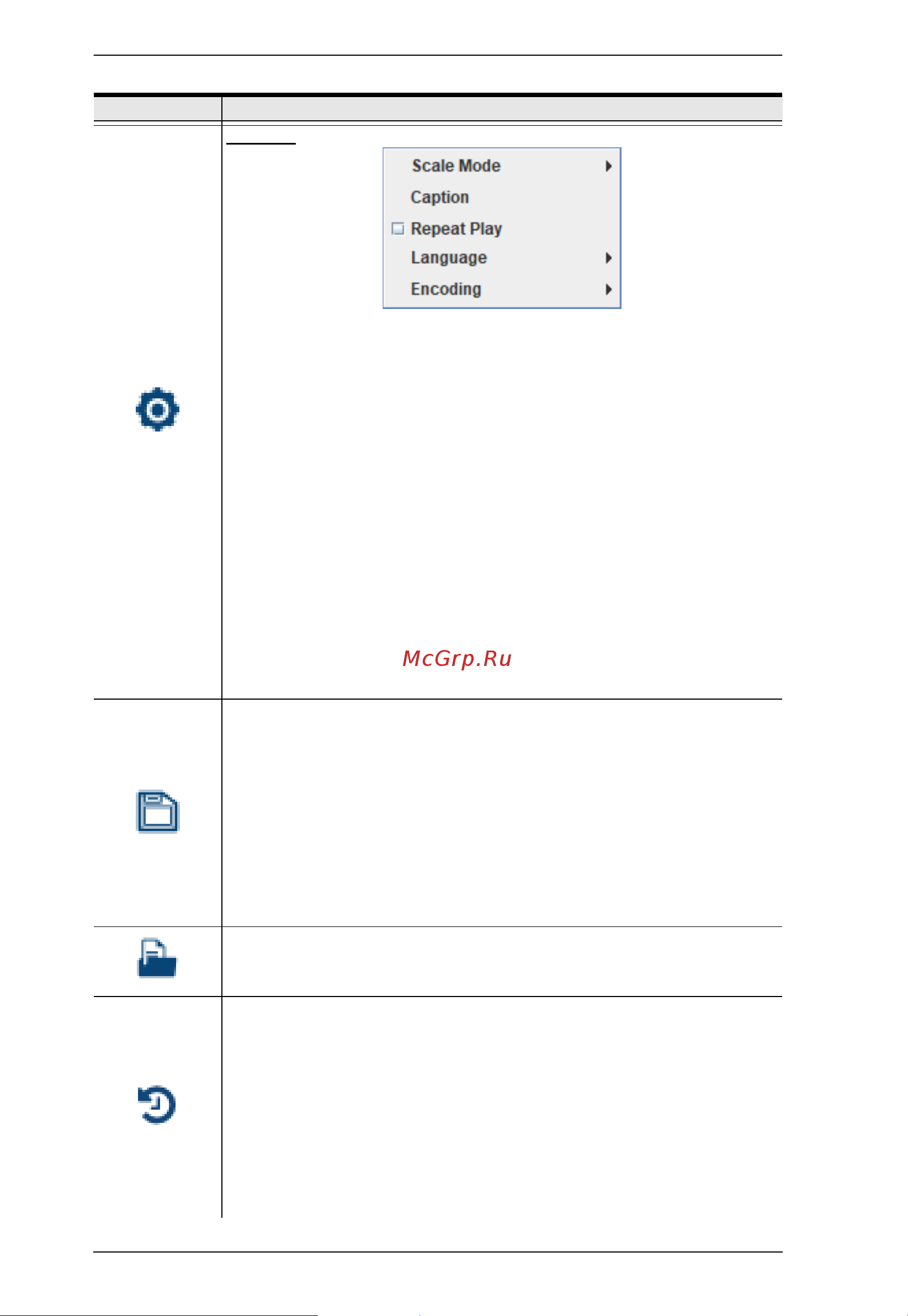

Scale Mode: The Scale Mode icon allows you to change the video
displays size in the Video Log Viewer’s window. When you click the
Scale Mode icon, three choices appear:
Keep Video Size: Keeps the video display scaled at the original
default size.
Keep Video Ratio: Keeps the video display ratio scaled to fit within
the resized window.
Scale Video to Window: Scales the video display to the size of the
entire window.
Caption: Allows you to edit the captions settings. Refer to Caption on
page 27 for more information.
Repeat Play: Click to enable/disable playing this video log repeatedly.
When the checkbox is checked, repeat play is enabled.
Language: Allows you to select the preferred language.
Encoding: Allows you to select the encoding method should there be
any garbled content.
Save Video: The Save Video icon allows you to save the current video
log to a directory and encrypt it with a password.
To save the video log, click Save Video, choose a directory, name the
file, then click Save. After clicking Save the Set Password window will
appear, enter a password for the video log file, or leave it blank for no
password, then click OK.
The video is saved as the .vls format. To open the video, please refer
to Open Video Log Files on page 28.
Note: Clicking Cancel at the Set Password prompt causes the save
process to end and the file is not saved.
Open Video: This icon is used to open previously saved video files.
Click the icon, choose a video log file, then enter the password.
Control Panel: When playing videos, in addition to the video image,
the Control Panel shows the operations (mouse clicks and key-
strokes), username, and IP address of the person logged into the
computer, arranged in order of execution time. If multiple people are
logged into the KVM port, the Control Panel will display the users, and
who conducts each operation.
Click the icon to bring up the Control Panel window, and use the Pin
icon located at the top left corner to hold/release the open window.
The User List displays the users logged into the KVM port at the time
the video log was recorded.
Icon Function
