Document Transport Belt
1139O1910A

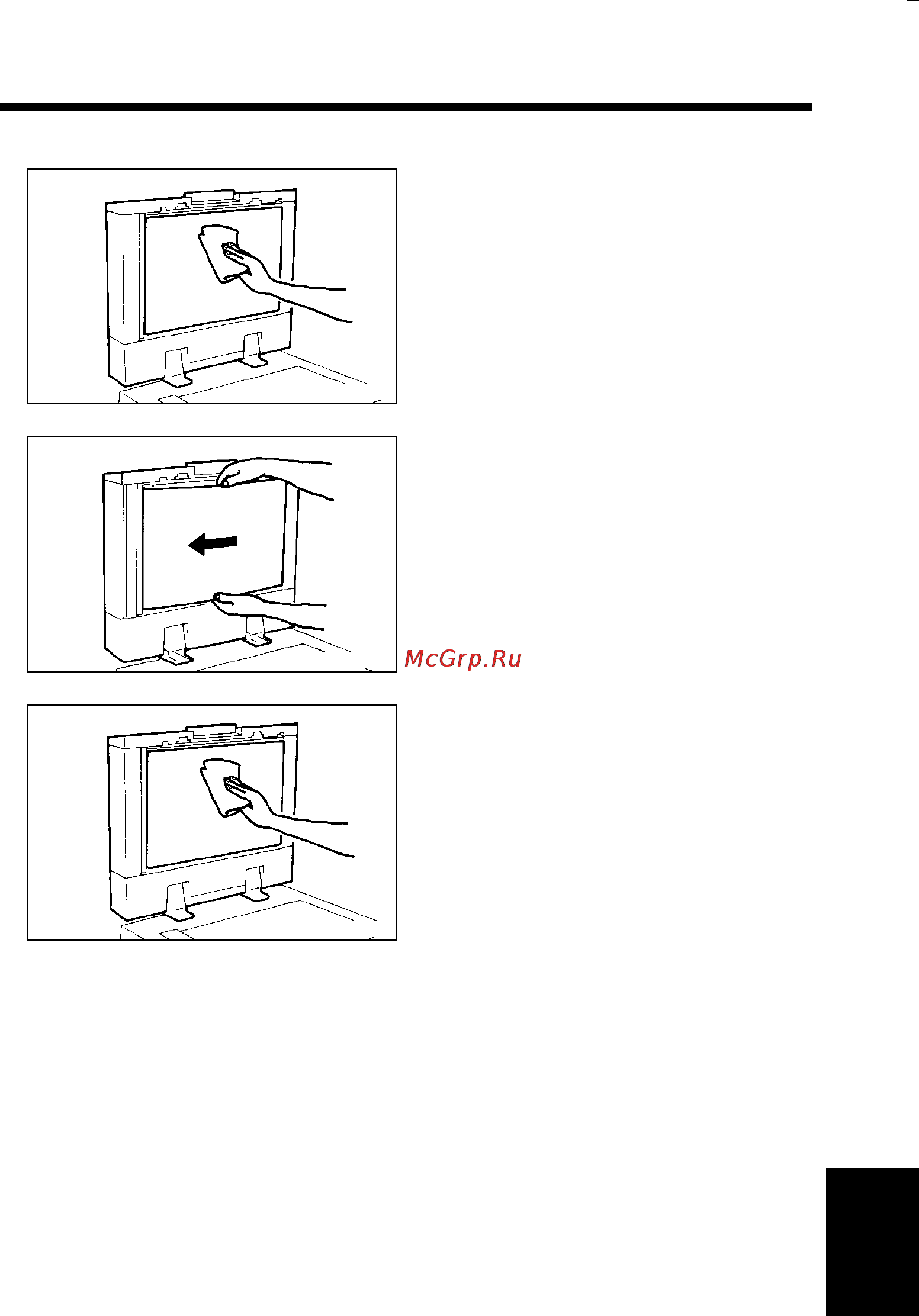

Raise the AF-3.
Wipe the surface of the
Document Transport Belt clean
with a soft cloth dampened with
neutral home detergent.
1
2
1139O1920A
Hold the Document Transport
Belt on both edges and pull it to
the left to expose a fresh surface.
3
4
1. Care of the Copier
1139O1910A
Wipe the fresh surface clean with
a soft cloth dampened with
neutral home detergent.
Repeat these steps until the entire
surface of the Belt is wiped clean.
Chapter 8
Miscellaneous
115
