Auto Size Sort Book
1142O151CA
Auto Size Sort Book
1142O151CA

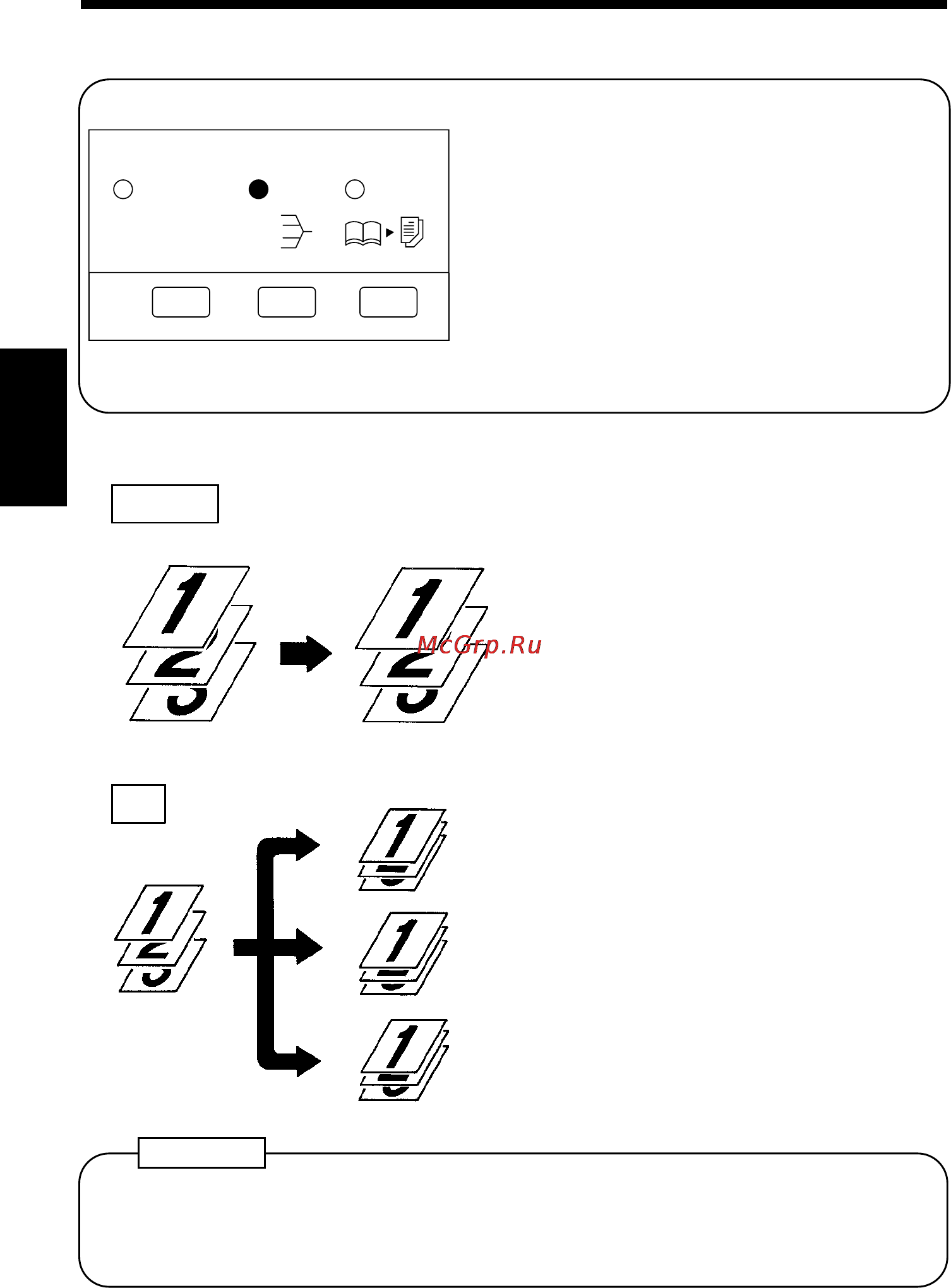

There are two different finishing modes:
Non-Sort and Sort.
Select the appropriate mode according to
your particular needs.
Non-Sort
Originals
Copies
1076O145
•
In the Non-Sort Mode, all copies are
fed out onto the Top Bin without
being sorted.
* The capacity of the Top Bin is 50.
If more than 50 copies are made in
the Non-Sort Mode, the Sorter uses
the 2nd, 3rd, and subsequent Bins
to hold those excess copies.
Finishing Modes
Finishing Modes
Sort
Top Bin
Originals
2nd Bin
3rd Bin
Copies
Copies
1076O146
Copies
•
In the Sort Mode, copies are sorted
into complete sets of the originals.
Copies are fed out into Sorter Bins.
This mode is effective when
making multiple copies from a
multiple number of originals.
The copier has been factory-set to automatically select Non-Sort. The User’s
Choice can, however, be used to change this default setting to give priority to
Sort. User’s Choice
➭
p. 61
Useful Tip
Chapter 3
Making Copies
2. Copying Procedure
44
