Konica Minolta EP1050 [27/131] First things to know about your copier
![Konica Minolta EP1050 [27/131] First things to know about your copier](/views2/1122092/page27/bg1b.png)

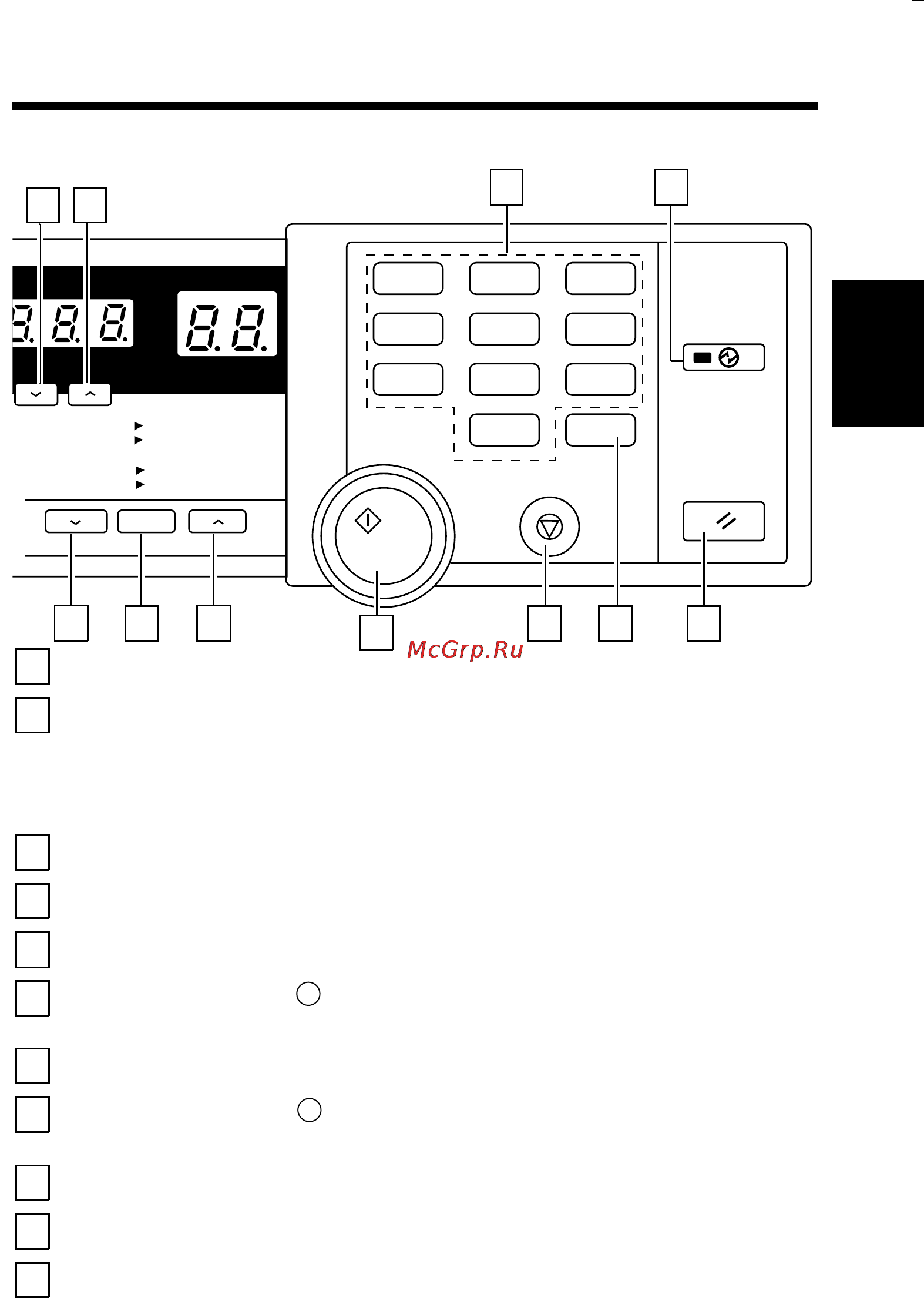

13
Stop Key:
Press to stop a multi-copy cycle.
➭
p. 48
14
Start Key:
Press to start a copy cycle.
➭
p. 48
It also tells the status of the copier as follows:
Green Light: The copier is ready to make copies.
Orange Light: The copier is making copies or warming up, or the Add Paper,
Misfeed, or Call-Tech.-Rep. Indicator is lit.
15
Enlargement Key:
Press to select a desired fixed enlargement ratio.
➭
p. 35
16
Full Size Key:
Press to select full size (100%).
➭
p. 35
17
Reduction Key:
Press to select a desired fixed reduction ratio.
➭
p. 35
18
Exposure Control Key ( > , Darker):
Press as necessary to make the exposure level higher in the Manual Exposure Mode.
➭
p. 41
19
Auto Exposure Mode Key:
Press to select either the Auto or Manual Exposure Mode.
➭
p. 41
20
Exposure Control Key ( < , Lighter):
Press as necessary to make the exposure level lower in the Manual Exposure Mode.
➭
p. 41
21
Book Key:
Press as necessary to select the Book Copying Mode.
➭ p. 42
22
Finishing Mode Select Key:
Press as necessary to select the Sort or Non-Sort Mode.
➭
p. 45
23
Auto Size Mode Key:
Press as necessary to select the Auto Size Mode.
➭ p. 37
1
4
7
3
6
9
C
2
5
8
0
100%
%
50%~200%
Energy Saver
Panel Reset
Start Stop
141% A4
A3
115% B4
A3
100% Full Size
81% B4 A4
70% A3 A4
13
10 9
8
14
17 16 15
7
1142O131DC
12 11
Chapter 2
First Things to Know about your Copier
3. Control Panel Keys and Indicators
