Konica Minolta EP1050 [29/131] First things to know about your copier
![Konica Minolta EP1050 [29/131] First things to know about your copier](/views2/1122092/page29/bg1d.png)
1142O020AA
1142O020AA
•

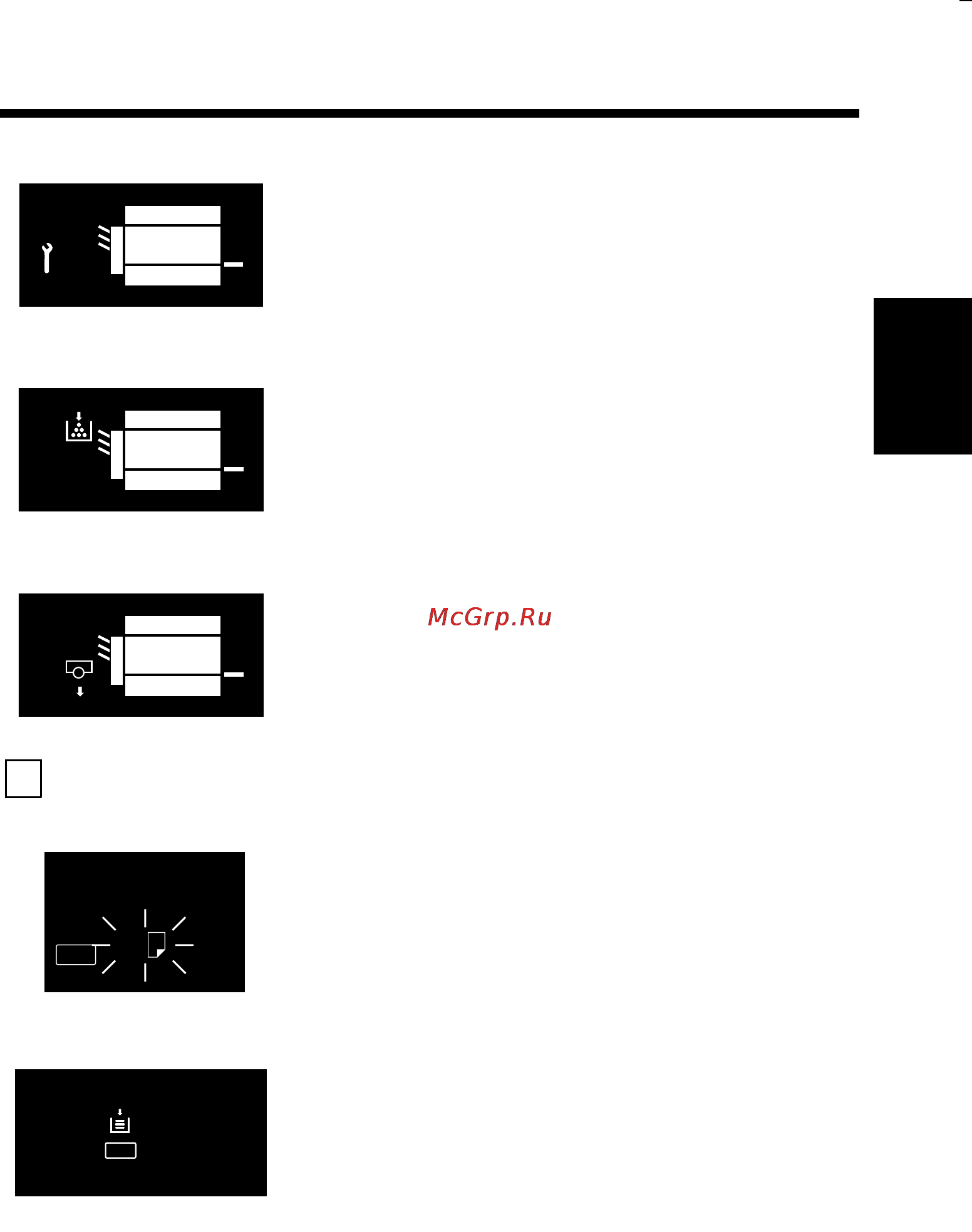

Call-Tech.-Rep. Indicator
Indicates that the copier has developed a
malfunction.
When a malfunction occurs, the corresponding
malfunction code is shown across the Zoom Ratio
Indicator and Multi-Copy Display.
➭
p. 93
•
Add Toner Indicator
Indicates that the Toner Bottle is running out of
toner. Replace the Toner Bottle as soon as
possible.
➭
p. 70
•
I.U. Service Life Indicator
It is now time to replace the Imaging Unit.
Replace the Imaging Unit by following the steps
given in "I.U. Service Life Indicator."
➭
p. 76
2
Paper Information Display
•
Paper Size Indicators
Show the size of paper currently loaded in the
Drawer.
➭
p. 33
•
Add Paper Indicator
Lights up when the currently selected Drawer has
run out of paper. Add paper as necessary.
➭
p. 72
1142O021AA
1142O021AA
1142O022AA
1142O022AA
Paper
A4
1142O143DA
1142O143DA
1142O170CA
Paper
1142O170CA
Chapter 2
First Things to Know about your Copier
3. Control Panel Keys and Indicators
17
