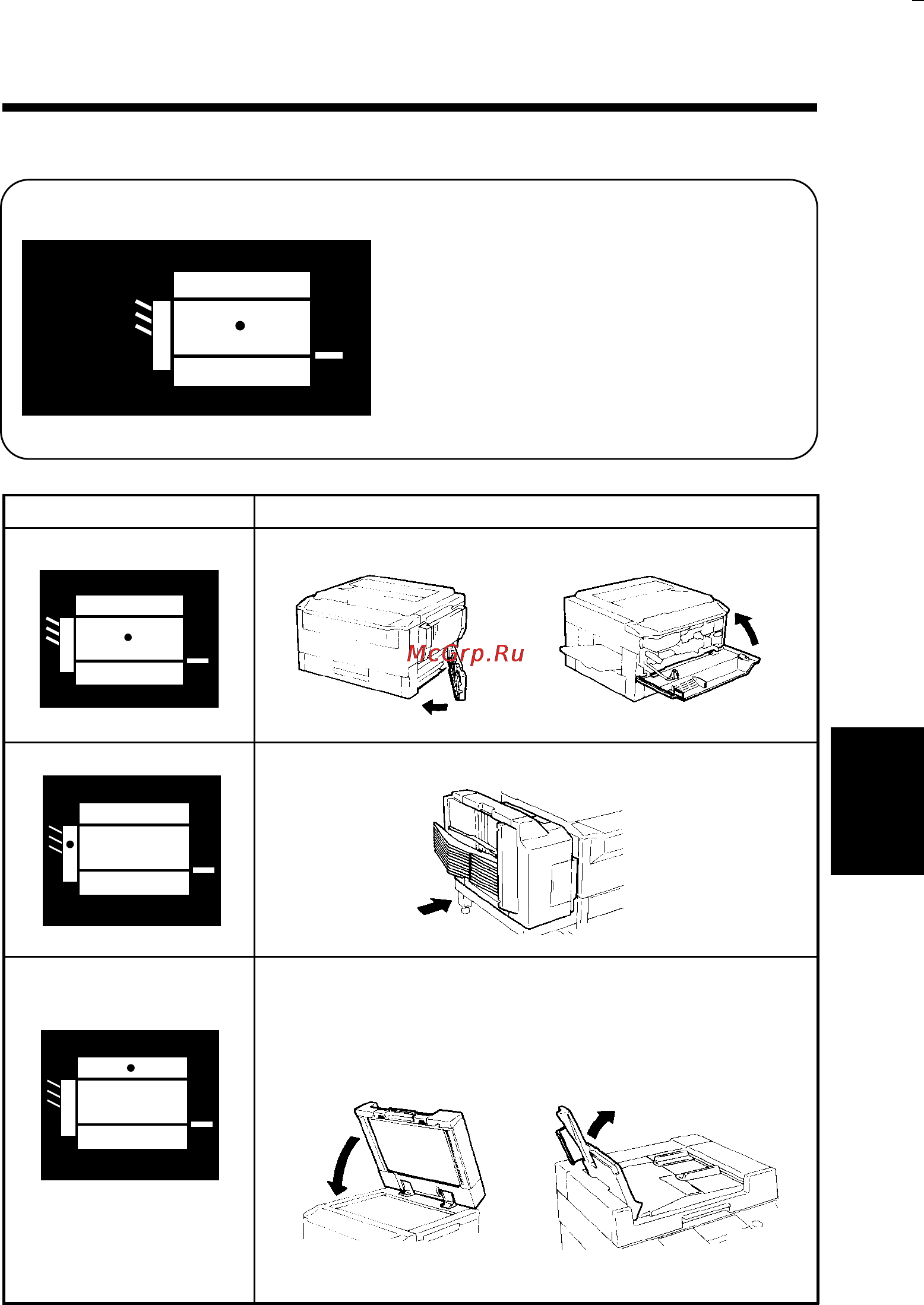

Closure Failure Indicator
1142O018AA
1142O018AA
The Closure Failure Indicator lights up if
a copier door is left open, or an option is
not attached properly. At this time, the
Monitor Display shows the location of
the closure failure. The Start Key turns
orange, and you can no longer start a new
copy cycle.
Correct the closure failure by following
the procedure given below.
2. Detailed Instructions for Indicator Lights
Monitor Display Check Locations
Check that the Right Door or Front Door is closed.
Check that the Sorter S-104 is in postion
•
Check that the Document Exit
Tray of the Automatic
Document Feeder is in
position.
•
Check that the Automatic
Document Feeder is
lowered.
1142O065AA
1142O018AA
1142O064AA
1139O0650A
1142O063AA
1139O0600A
1139O0560A
1142O062AA
Chapter 5
When an Indicator Lights Up
85
