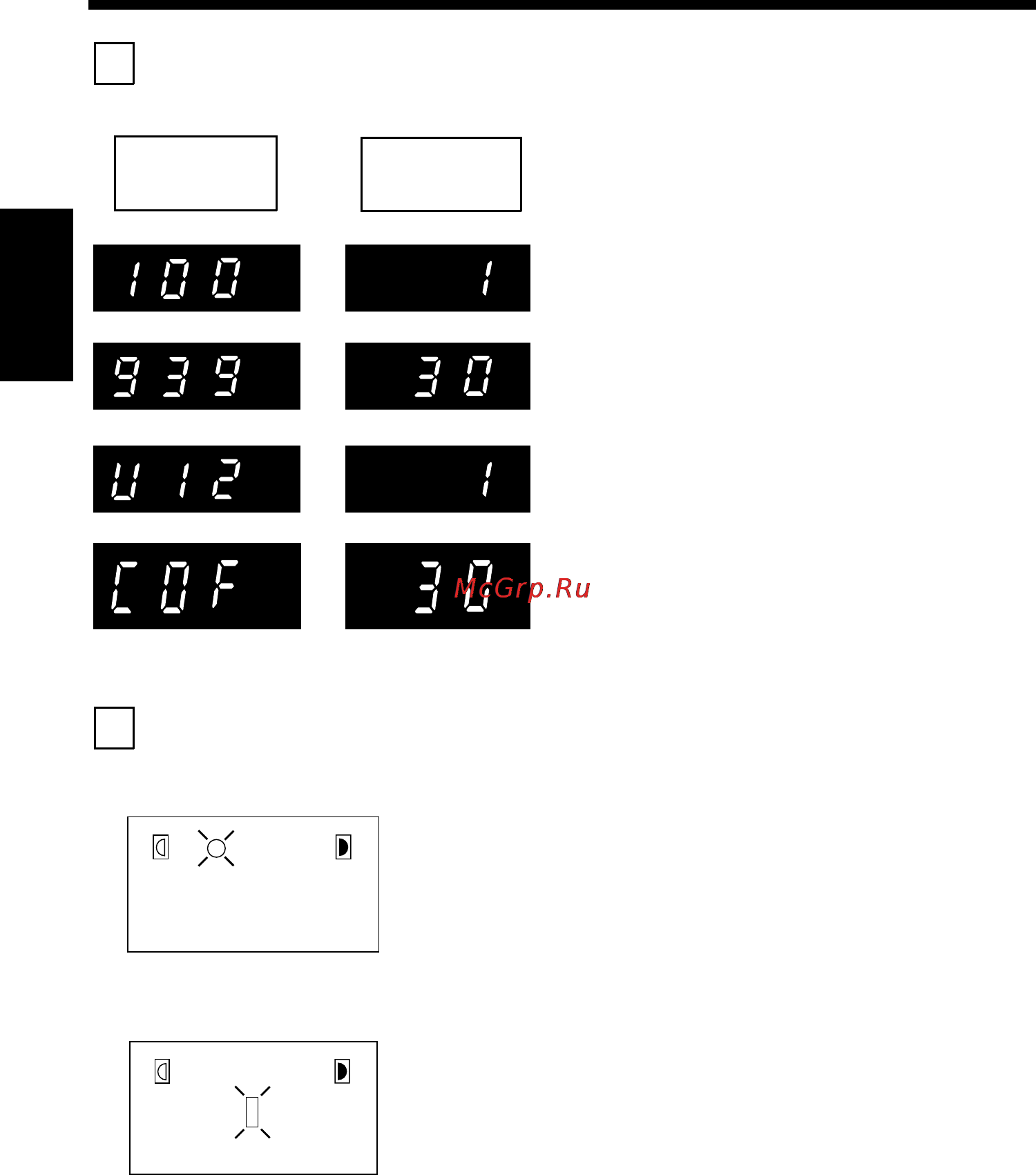

Zoom Ratio Indicator /
Multi-Copy Display
: Each shows the following data.
%
Zoom Ratio
Indicator
Multi-Copy
Display
•
Example
Zoom ratio: 100%
No. of copies: 1
%
•
Count of the Total Counter
Example: 93,930 (copies)
%
•
User’s Choice code and setting value
Example: Choice code: 12, Setting: 1
%
1142O025AA
•
Malfunction code
Example: Malfunction code C0F30
Auto
Lighter Darker
1142O167CA
Lighter Darker
1142O168CA
4
Exposure Information Display
•
Auto Exposure Indicator
Indicates that the copier is now in the Auto
Exposure Mode.
➭
p. 40
•
Exposure Level Indicator
Shows the exposure setting level in the Manual
Exposure Mode.
➭
p. 40
The center LED is normally lit.
Chapter 2
First Things to Know about your Copier
3. Control Panel Keys and Indicators
18
