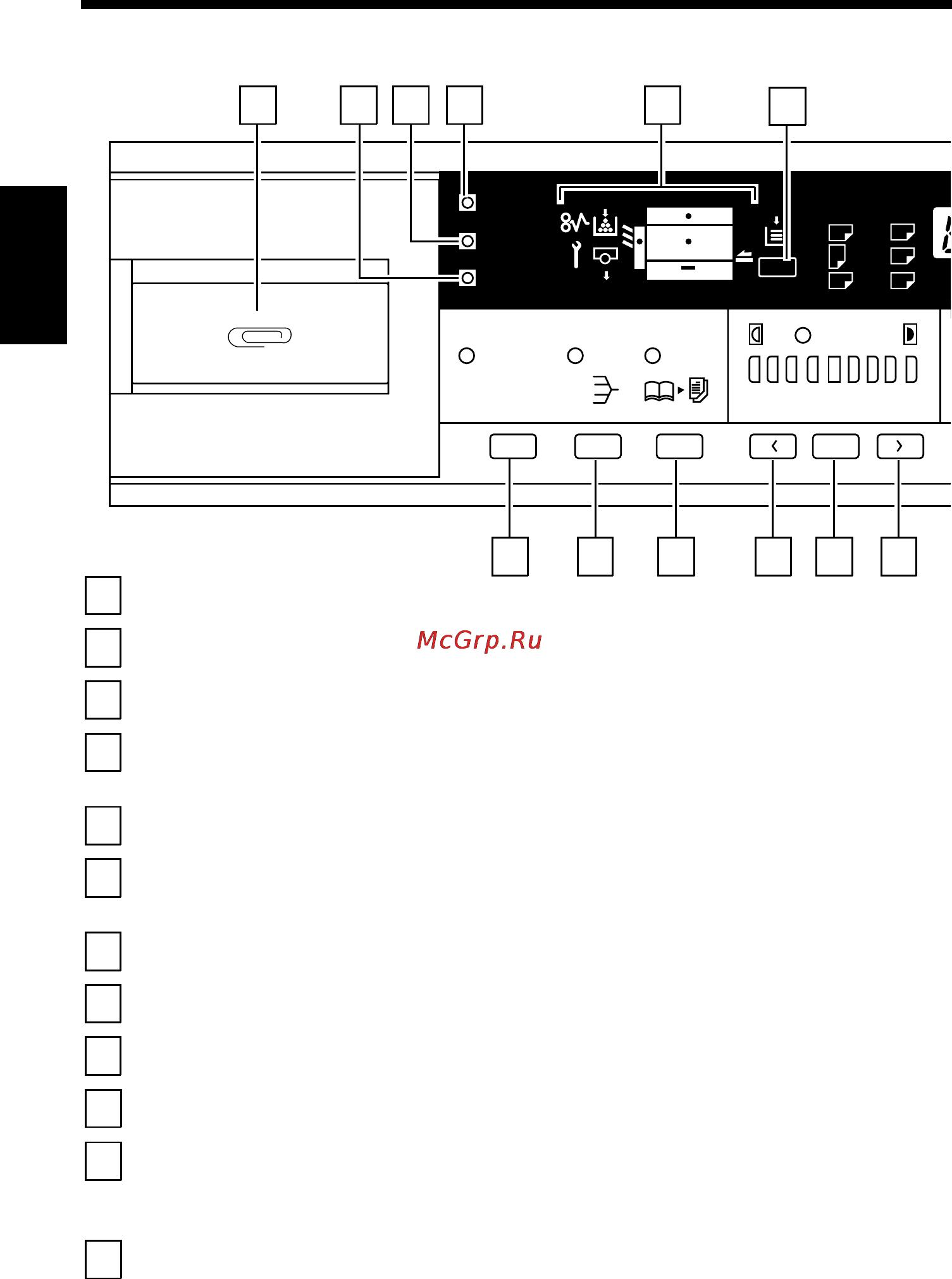

Konica Minolta EP1050 [26/131] Control panel keys and indicators
![Konica Minolta EP1050 [26/131] Control panel keys and indicators](/views2/1122092/page26/bg1a.png)
Control Panel
A
Meter Count
Toner
Drum Dehumidify
Paper
A3 A5
A4 B4
A4
FLS.
Auto
Lighter Darker
Auto Size Sort Book
2 1
20
19 18
3 4 5
6
23
22 21
1
Clip Tray:
Use this tray to put the paper clips used with the documents.
2
Drum Dehumidify Key:
Press to remove condensation formed on the surface of the PC Drum.
➭ p. 55
3
Auxiliary Toner Replenishing Key:
Press when the image on the copy becomes too light.
➭ p. 54
4
Meter Count Key:
Press to check for the current counts of four electronic counters of the copier.
➭ p. 52
5
Display:
See the other pages in this manual.
➭
p. 16
6
Paper Select Key:
Press to select the paper source, Drawer or Multi Bypass Table (option), when the
Multi Bypass Table is mounted to the copier.
➭ p. 33
7
Zoom Down Key:
Press as necessary to make the zoom smaller in 1% increments.
➭
p. 36
8
Zoom Up Key:
Press as necessary to make the zoom larger in 1% increments.
➭
p. 36
9
Multi-Copy Keys:
Use to enter the number of copies to be made and other numeric data.
➭
p. 47
10
Energy Saver Key:
Press to set the copier into the Energy Saver Mode.
➭
p. 21
11
Panel Reset Key:
Press to set the copier into the initial mode, clearing all settings made previously on
the control panel.
➭
p. 23
Holding down the Key for 3 seconds will initiate the User’s Choice.
➭
p. 64
12
Clear Key:
Press to clear the number of copies, zoom and other settings.
➭
p. 47
3. Control Panel Keys and Indicators
Chapter 2
First Things to Know about your Copier
14
