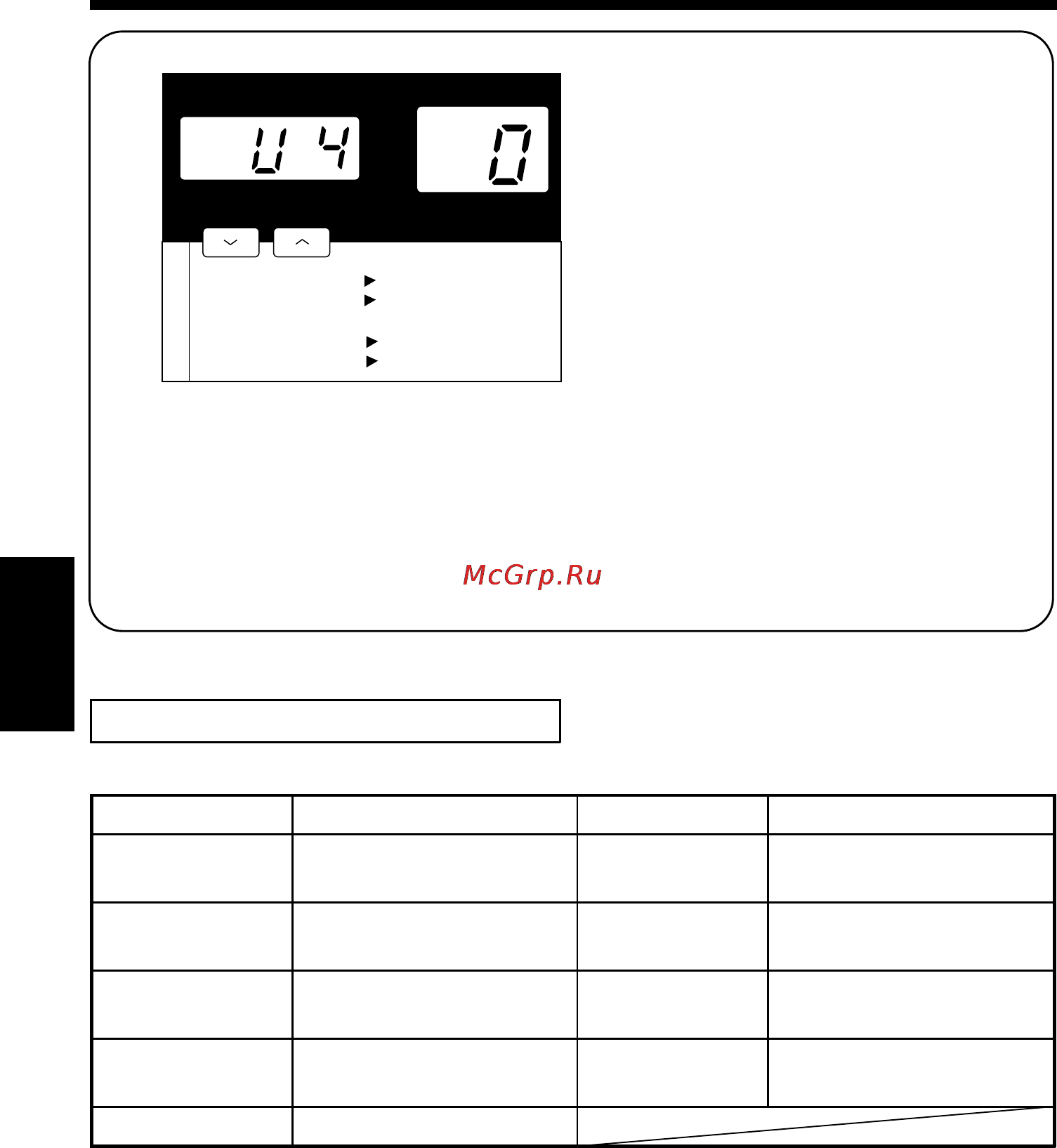

Functions Available in User’s Choice
Choice Code Function Choice Code Function
U- 4
Lightweight Original
Mode
U-20
Auto Panel Reset
ON/OFF
U-12
Auto Size/Manual
priority
U-21
Energy Saver Mode
ON/OFF and Timing
U-13
Default auto exposure
level
U-23
Auto Panel Reset for
Plug-In Counter
U-14
Default exposure
mode/level
U-24
Sort/Non-Sort Auto
Switching ON/OFF
U-15 Default Finishing mode
The copier has been set so that
the most frequently used settings
are automatically selected in the
initial mode.
The User’s Choice allows you to
select the default settings which
are automatically selected in the
initial mode according to your
own needs.
By setting defaults for the paper size, zoom ratio and other settings that are
most frequently used, time and effort to make extra settings will be
eliminated when the copier is turned ON or when the auto reset function is
activated.
For more details, consult your Technical Representative.
%
50%~200%
1142O145DB
141%
A4
A3
115% B4
A3
100% Full Size
81% B4 A4
70% A3 A4
1142O145DB
4. User’s Choice
Chapter 4
Auxiliary Functions
56
