Konica Minolta EP1050 [98/131] Misfeed indicator
![Konica Minolta EP1050 [98/131] Misfeed indicator](/views2/1122092/page98/bg62.png)

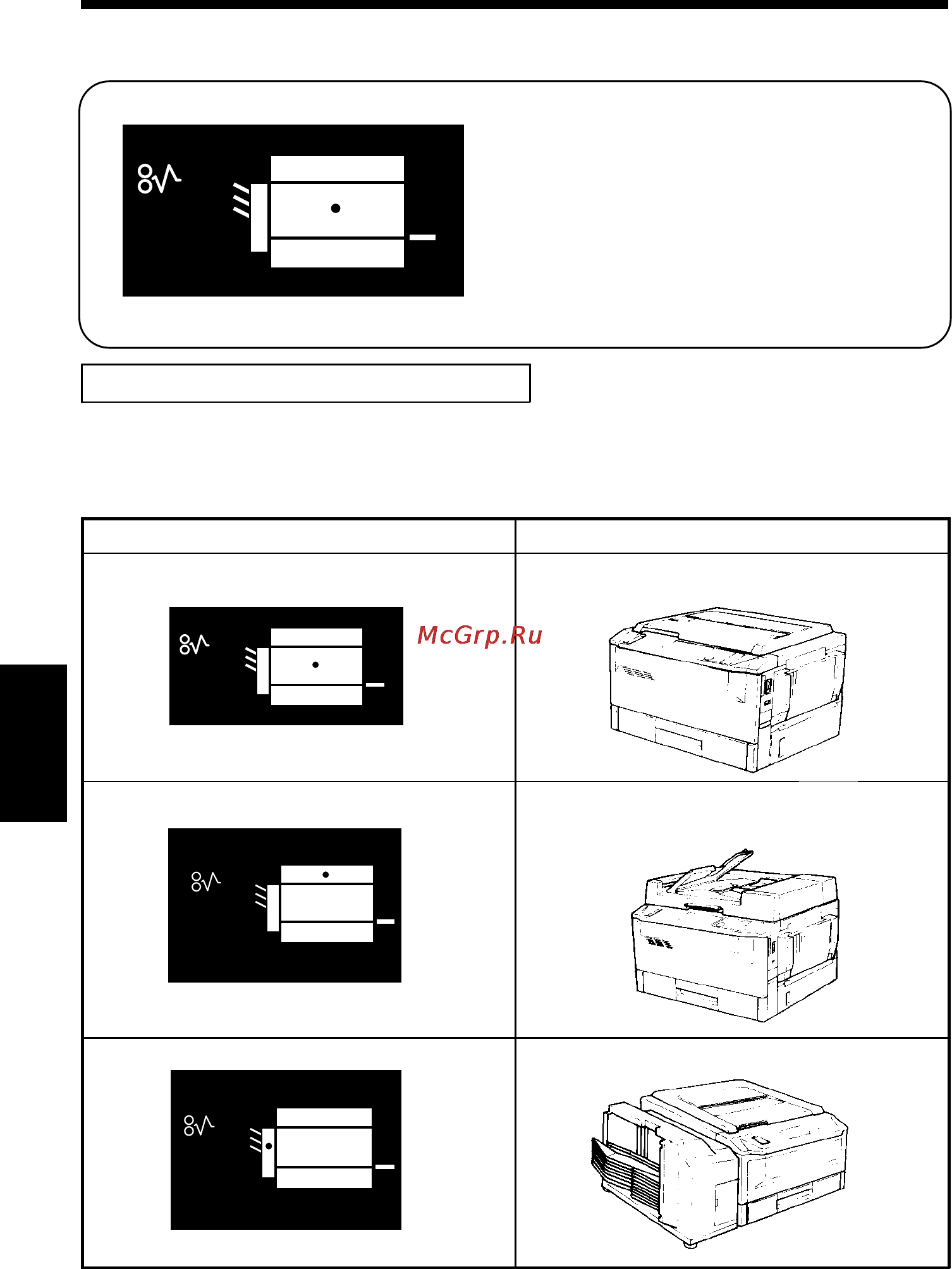

Misfeed Indicator
Misfeed Indicator and Monitor Display
Check the Monitor Display for the location of the misfeed, and clear the misfed
sheet of paper according to the procedure given for each location.
1142O019AB
1142O019AB
If a paper misfeed occurs during a copy
cycle, that copy cycle stops. At this time,
the Misfeed Indicator lights up and the
Monitor Display shows the location. In
addition, the Start Key turns orange and
you cannot start a new copy cycle.
Monitor Display Misfeed Location
Misfeed in the copier
➭
p. 87
Misfeed in the Automatic Document
Feeder
➭
p. 90
Misfeed in the Sorter
➭
p. 92
1142O019AB
1142O019AB
1142O068AB
1142O068AB
1142O066AA
1142O067AA
2. Detailed Instructions for Indicator Lights
1142O069AB
1142O069AB
1142O070AA
Chapter 5
When an Indicator Lights Up
86
