Konica Minolta EP1050 [28/131] Display
![Konica Minolta EP1050 [28/131] Display](/views2/1122092/page28/bg1c.png)

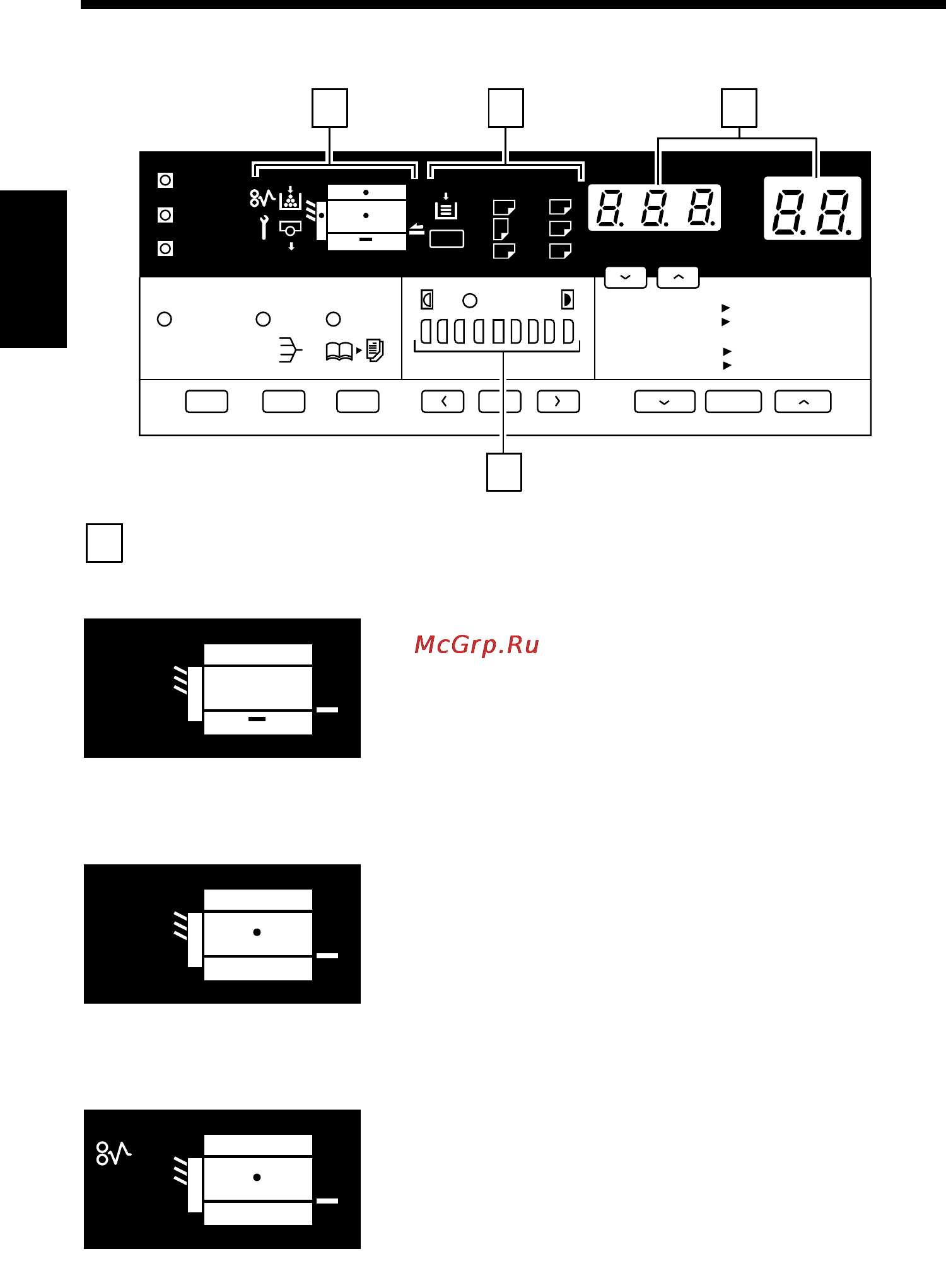

Display
1142O132DC
A
100%
Meter Count
Toner
Drum Dehumidify
Paper
A3 A5
A4 B4
A4
FLS.
%
50%~200%
Auto
Lighter Darker
Auto Size Sort Book
141% A4
A3
115% B4
A3
100% Full Size
81% B4 A4
70% A3 A4
1
1142O132DC
4
2 3
1
Monitor Display
•
Paper Source Indicator
Shows the paper source which is currently
selected for use.
➭
p. 33
Example: Shows that the Drawer is currently
Example: selected for use.
•
Closure Failure Indicator
The location of a Door left open is also indicated
by a round marker.
➭
p. 85
Example: Indicates that the Front Door or Right
Door is left open.
•
Misfeed Indicator
Indicates that a paper misfeed has occurred.
The location of the misfeed is also indicated by a
round marker.
➭
p. 86
Example: Shows that a misfeed has occurred
Example: inside the copier.
1142O017AA
1142O017AA
1142O018AA
1142O018AA
1142O019AA
1142O019AA
Chapter 2
First Things to Know about your Copier
3. Control Panel Keys and Indicators
16
