Konica Minolta EP1050 [25/131] First things to know about your copier
![Konica Minolta EP1050 [25/131] First things to know about your copier](/views2/1122092/page25/bg19.png)

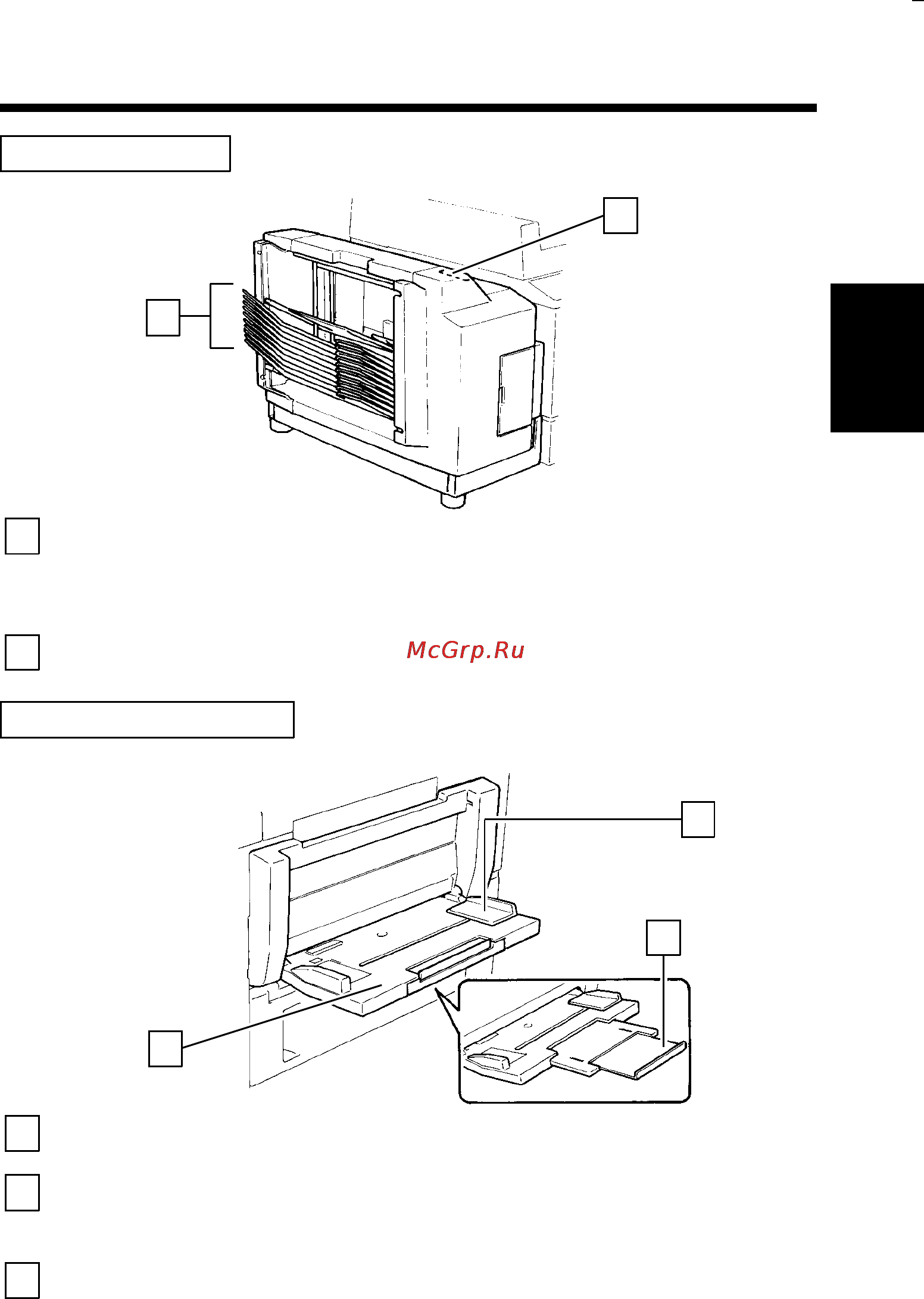

10-Bin Sorter S-104
1
Sorter Bins
: Hold sorted copies. The Top Bin is capable of
holding up to 50 copies and each of the 2nd to 10th
Bins up to 25 copies, a total of 275 copies.
➭
p. 44
2
Lock Release Lever
: Press to unlock the Sorter.
➭
p. 92
1
2
1142O014AA
1
2
1139O1090A
3
1
Paper Guide Plate
: Slide as necessary to the size of the copy paper.
➭
p. 50
2
Multi Bypass Table
: Load your paper on this Table. It allows you to
make copies continuously on paper fed from this
Table.
➭
p. 50
3
Multi Bypass
Table Extender
: Slide this Extender out to use large-size copy paper.
➭
p. 50
Multi Bypass Table MB-1
Chapter 2
First Things to Know about your Copier
2. Copier Parts and Accessories
13
