Konica Minolta EP1050 [21/131] Copier parts and accessories
![Konica Minolta EP1050 [21/131] Copier parts and accessories](/views2/1122092/page21/bg15.png)

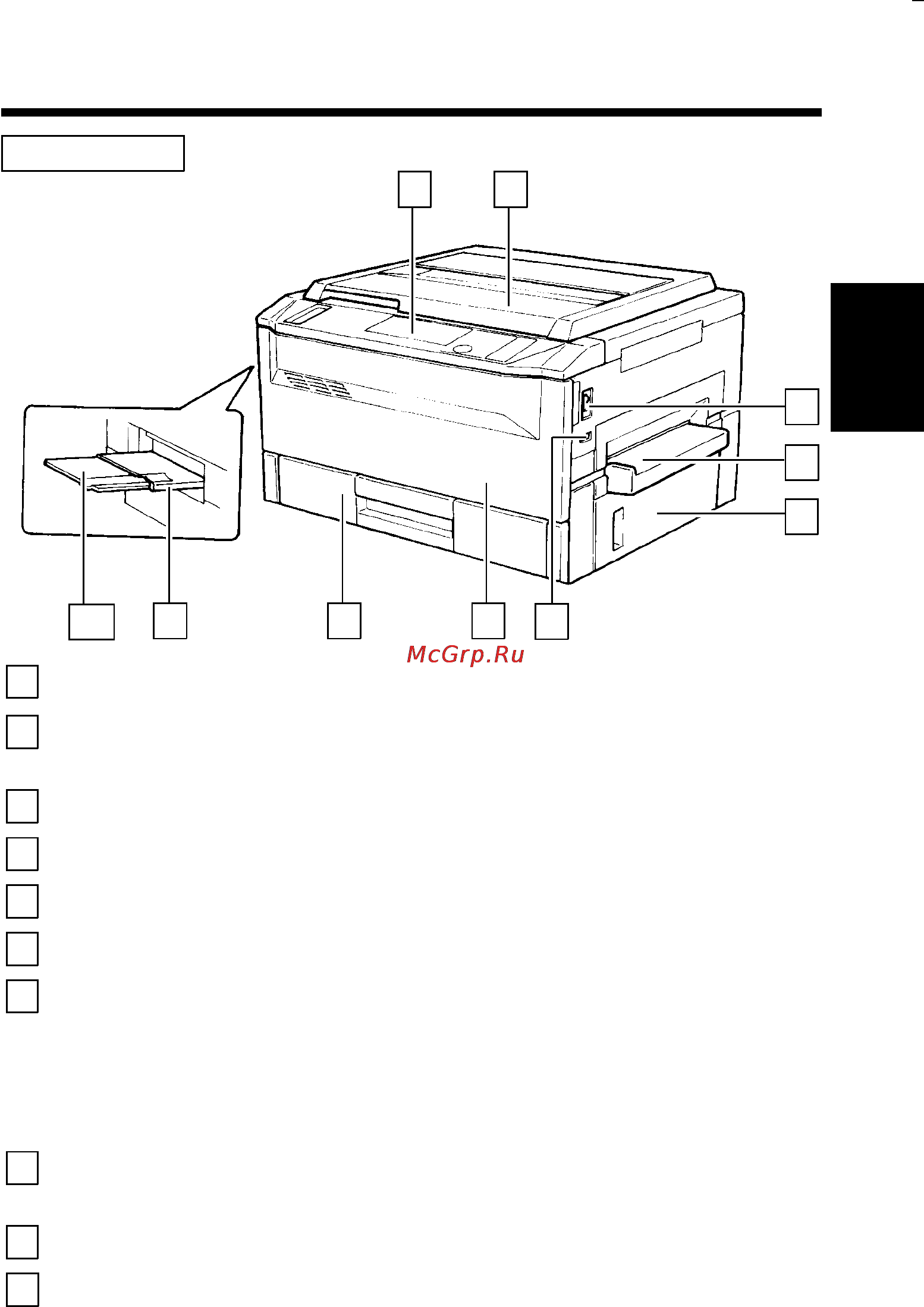

Outside Copier
3
1 2
4
5
1142O011AA
6
7
8
10
9
2. Copier Parts and Accessories
1
Control Panel
: Use to start a copy cycle or to make copying-job settings.
➭
p. 14
2
Original Cover
: Holds the original placed on the Original Glass in
position. To place an original, raise the Cover and place
it in position on the Original Glass.
➭
p. 28
3
Power Switch
: Use to turn the copier ON and OFF.
➭
p. 19
4
Manual Bypass Table
: Use for manual feeding of paper into the copier.
➭
p. 49
5
Right Door
: Open to clear a paper misfeed.
➭
p. 88
6
Total Counter
: Shows the total number of copies made so far.
7
Front Door
: Open to:
• Replace the Toner Bottle.
• Clear a paper misfeed.
• Clean the Corona Units.
Closing the Front Door after a misfeed has been cleared
will turn the Misfeed Indicator on the control panel OFF.
➭
pp. 87, 114
8
Paper Drawer
: Holds up to 250 sheets of paper.
The Edge Guide and Trailing Edge Stop are movable,
allowing you to load paper of different sizes.
➭
p. 72
9
Exit Tray
: Holds copies fed out of the copier.
10
Copy Tray Extender
: Slide this Extender out when making copies on large-size
paper.
Chapter 2
First Things to Know about your Copier
9
