Konica Minolta EP1050 [22/131] First things to know about your copier
![Konica Minolta EP1050 [22/131] First things to know about your copier](/views2/1122092/page22/bg16.png)
1
3
2
7
6
5
4
1142O012AA

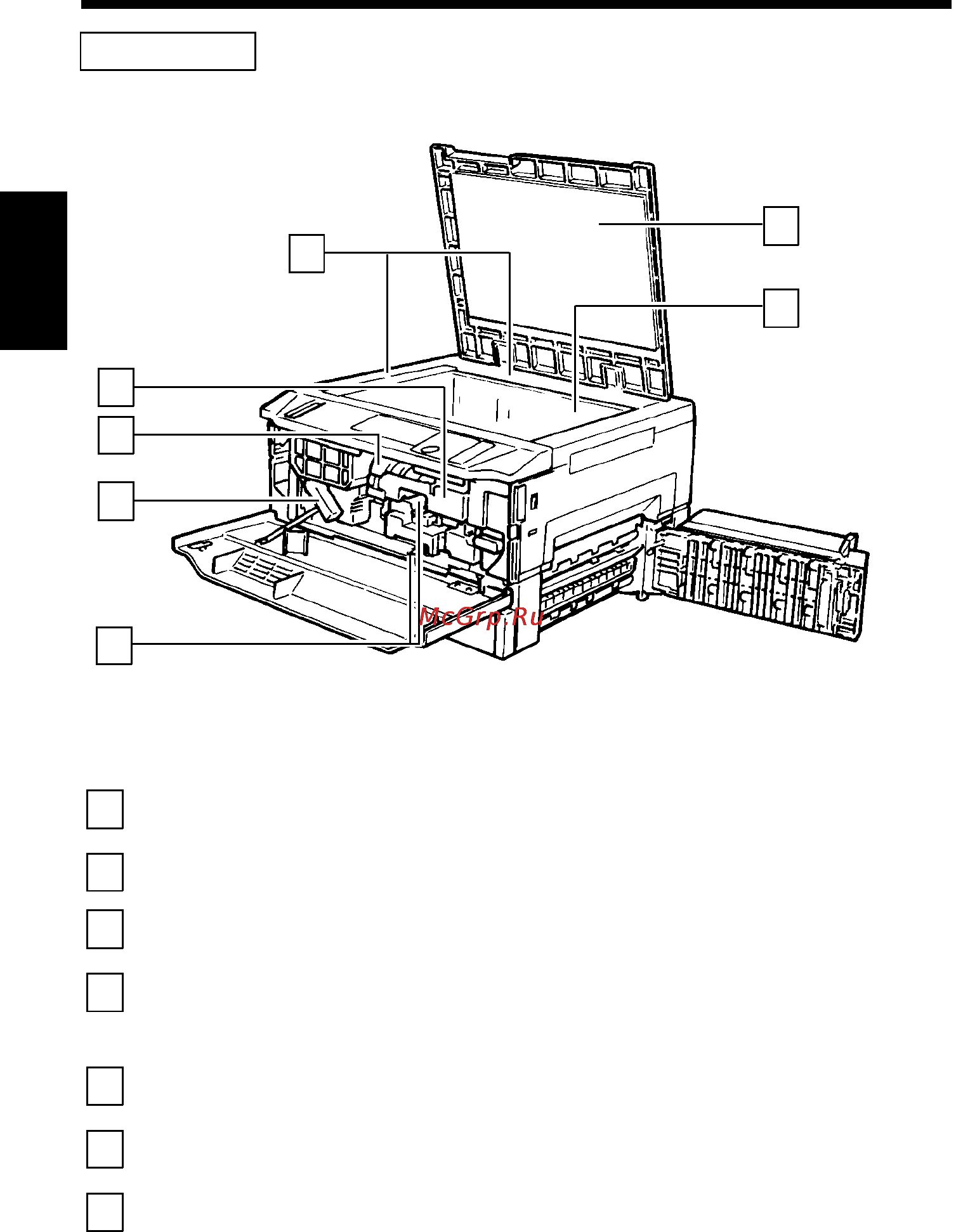

Inside Copier
1
Original
Width/Length Scale
: Place the original along these Scales for correct
positioning.
➭
p. 28
2
Original Pad
: Holds the original in position on the Original Glass.
3
Original Glass
: Place the original face down on this Glass.
➭
p. 28
4
Corona Unit
Cleaning Lever
(Upper/Lower)
: Operate the Lever to clean the corresponding
Corona Unit if unwanted lines are produced on the
copy.
➭
p. 114
5
Lock Release Lever
: Turn counterclockwise to swing up the Upper Half
of the copier to clear a paper misfeed.
➭
p. 87
6
Toner Bottle
: Contains toner. Replace it with a new one when the
Add Toner Indicator lights up.
➭
p. 87
7
Toner Bottle
Holder
: Swing open to replace the Toner Bottle.
➭
p. 70
Chapter 2
First Things to Know about your Copier
2. Copier Parts and Accessories
10
