WDR-3124A Introduction
1-10

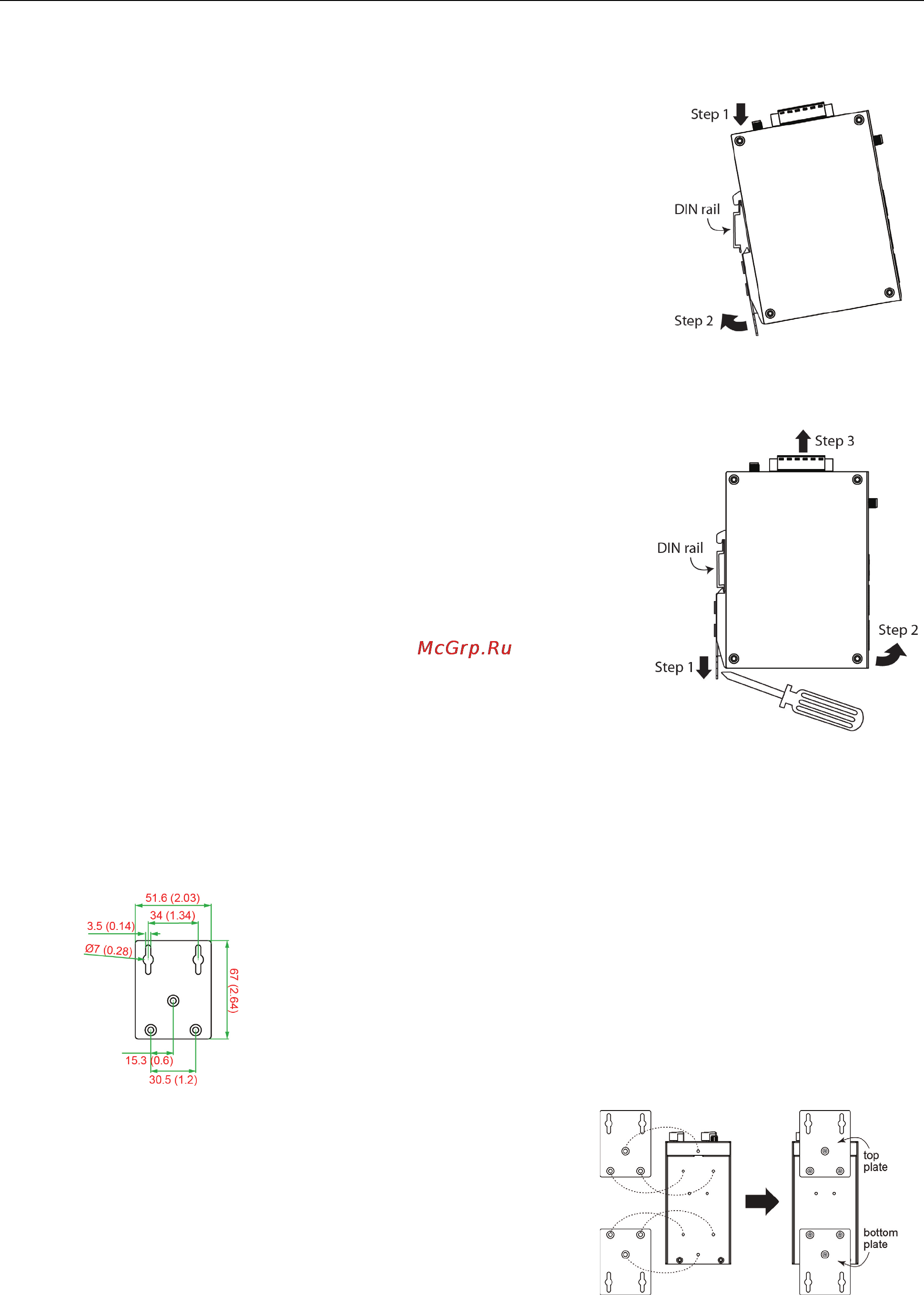

Installation
1. Insert the upper lip of the DIN rail into the DIN-rail mounting kit.
2. Press the WDR-3124A towards the DIN rail until it snaps into place.
Removal
1. Pull down the latch on the mounting kit using a screwdriver.
2. Slightly pull the WDR-3124A forward.
3. Lift up to remove the WDR-3124A from the DIN rail.
Wall Mounting (optional)
For some applications, it may be more convenient to mount the WDR-3124A to a wall.
The following figure shows the DIN-rail kit dimensions (unit = mm (inch)).
1. Remove the aluminum DIN-
rail attachment plate from the
WDR-
3124A, and then attach the wall mount plates with M3
screws, as shown in the adjacent diagram.
