WDR-3124A Web Console Configuration

3-15

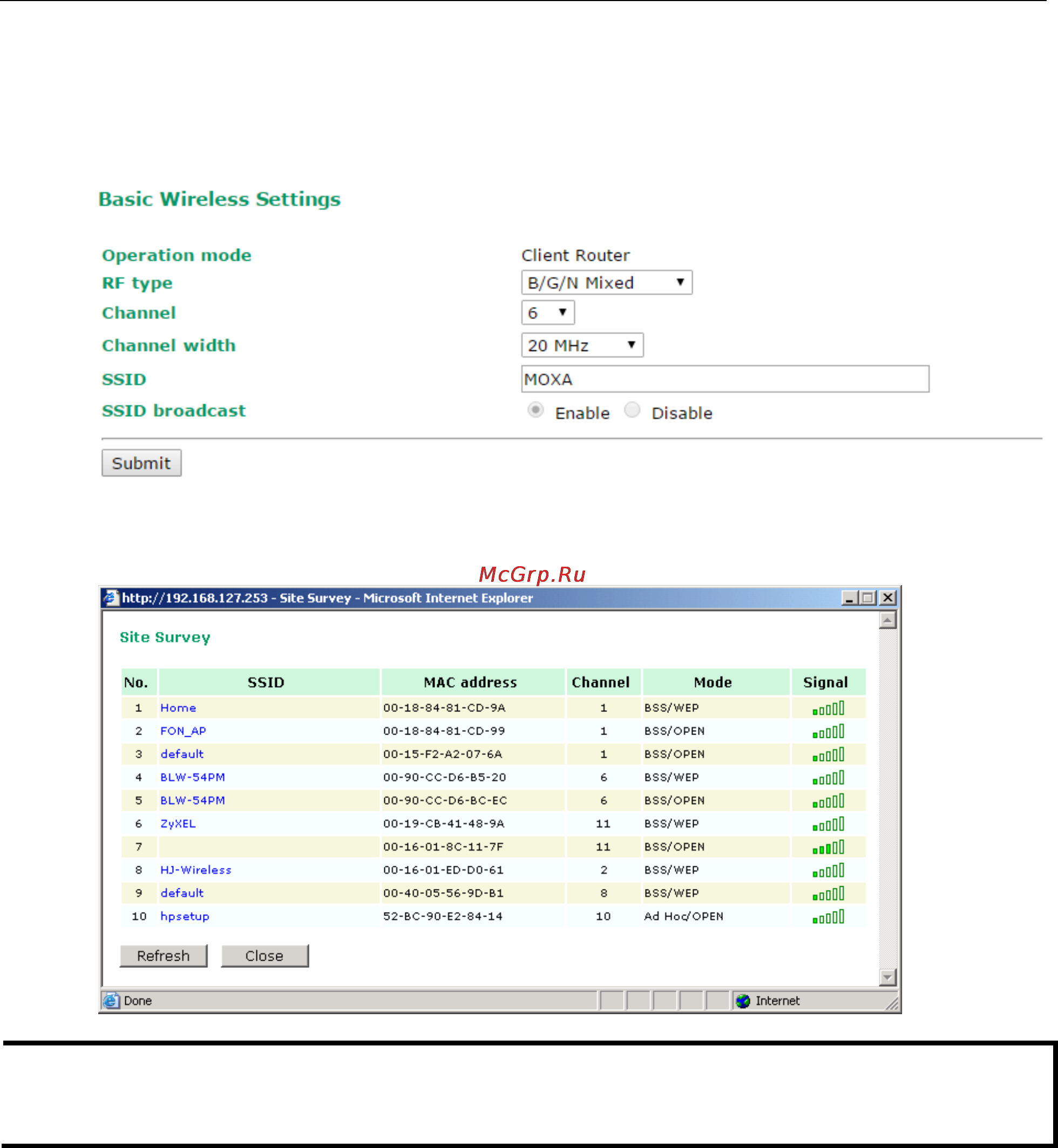

Site Survey (Client mode only)

When you set the WDR-3124A to operate in Client-Router mode, you can click Site Survey in the Basic

Wireless Settings screen to search for available APs nearby.

The following figure shows the search result. You can click an SSID to view detailed information. To scan and

update the AP list, click Refresh.

NOTE

If the

Gateway field in Basic Settings > Network Settings is empty, a warning message appears,

prompting

you to set the default gateway when Client-Router mode is enabled

. You can ignore this message

if you

are setting up a local network that does not send data outside the network.

WLAN Security Settings

The WDR-3124A provides four wireless security modes: Open, WEP (Wired Equivalent Privacy), WPA (Wi-Fi

Protected Access), and WPA2. Several security modes are available in the WDR-3124A by selecting Security

mode and WPA type:

• Open: No authentication, no data encryption.

• WEP: Static WEP (Wired Equivalent Privacy) keys must be configured manually.

• WPA/WPA2-Personal: Also known as WPA/WPA2-PSK. You will need to specify the Pre-Shared Key in the

Passphrase field, which will be used by the TKIP or AES engine as a master key to generate keys that

actually encrypt outgoing packets and decrypt incoming packets.

WPA/WPA2-Enterprise: Also called WPA/WPA2-EAP (Extensible Authentication Protocol). In addition to

device-based authentication, WPA/WPA2-Enterprise enables user-based authentication via IEEE802.1X.

The WDR-3124A supports three EAP methods: EAP-TLS, EAP-TTLS, and EAP-PEAP.
