Configuring a VPN Tunnel

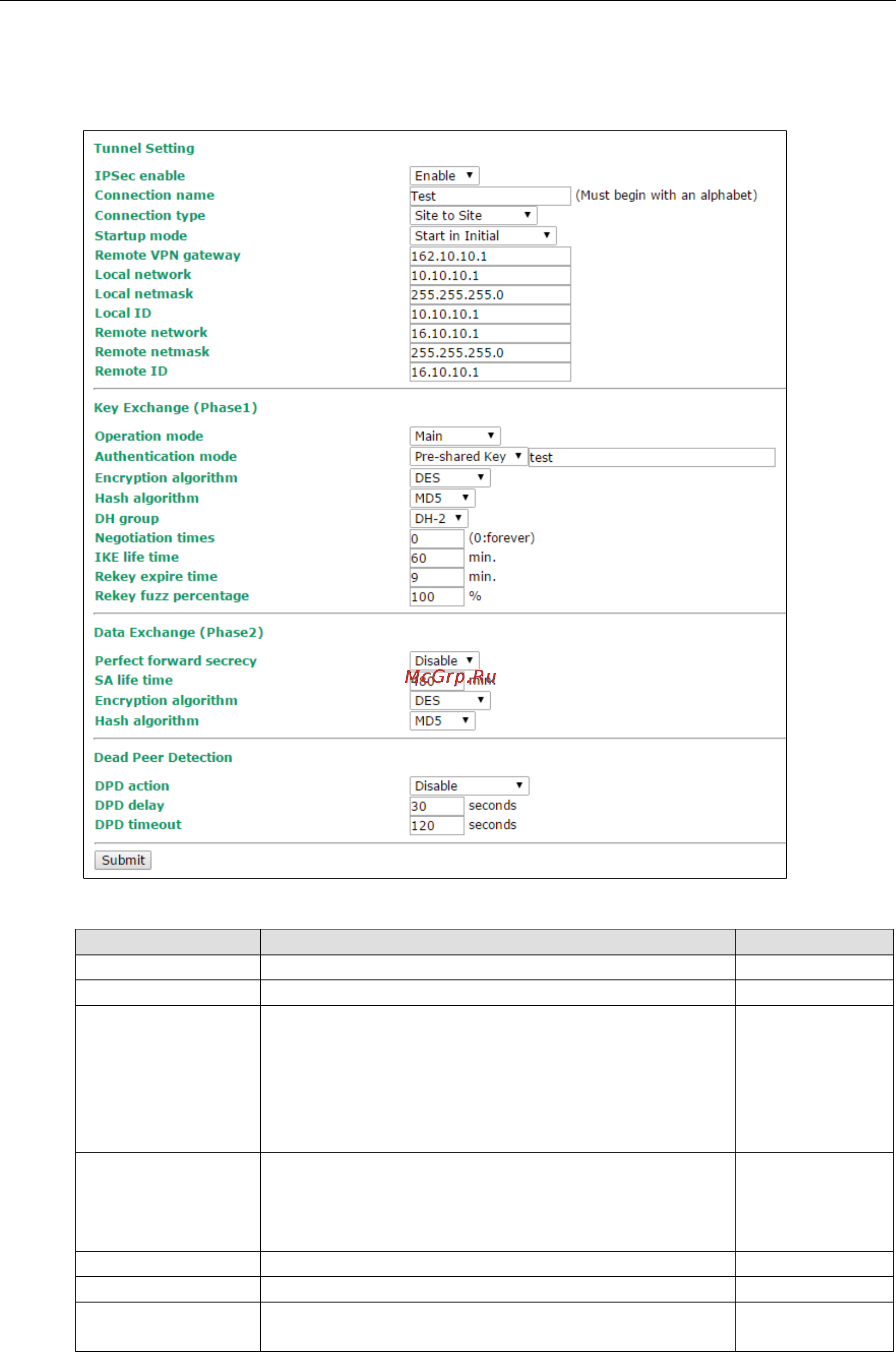

To configure a VPN tunnel, click Edit in the IPSec Settings screen.

The following table provides the field descriptions.

Field Description Factory Default

IPSec enable Select Enable to activate the VPN tunnel. Disable

Connection name Enter a descriptive name for the VPN tunnel.

Connection type Select one of the following connection types:

• Site-to-Site –

Select this option to create a VPN tunnel for

static local and remote subnets.

• Site-to-Site(any) – Select this option to create a VPN

tunnel between a static local subnet and a dynamic remote

subnet.

Site-to-Site

Startup mode Select Start in Initial to set the WDR-3124A to initiate a

connection with the remote VPN gateway.

Select Wait for Connecting to set the WDR-3124A to wait

for

a remote VPN gateway to initiate a connection.

Start in Initial

Remote VPN gateway Enter the WAN IP address of the remote VPN gateway.

Local network Enter the remote VPN server subnet IP of the local network.

Local netmask Enter the remote VPN server subnet netmask of the local

network.
