WDR-3124A Web Console Configuration
3-56
Restart
If you submitted configuration changes, you will find a blinking string in the upper right corner of the screen.
After making all your changes, click the Restart function in the left menu box. One of two different screens will
appear.

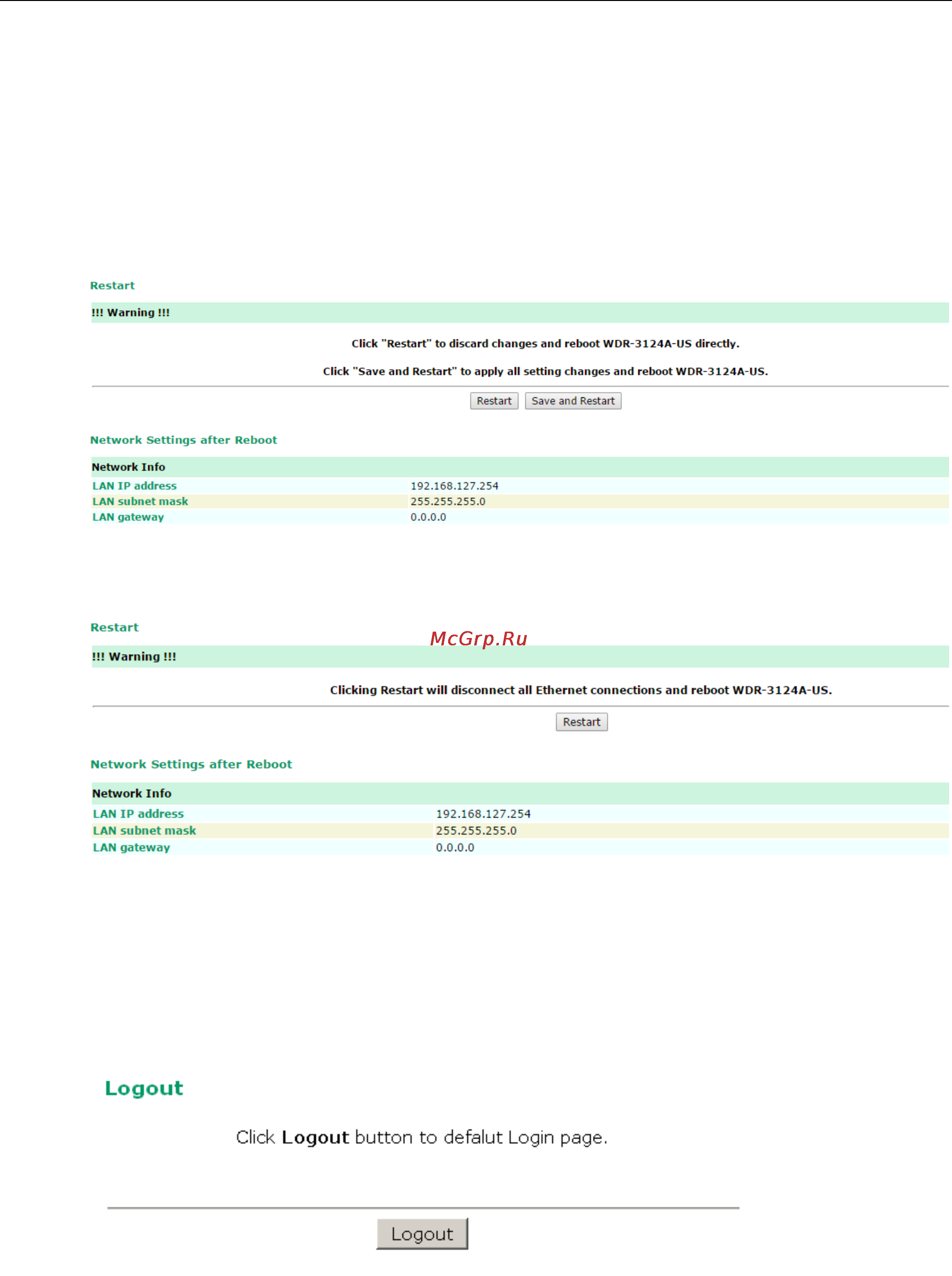

If you made changes recently but did not save, you will be given two options. Clicking the Restart button here
will reboot the WDR-3124A directly, and all setting changes will be ignored. Clicking the Save and Restart
button will apply all setting changes and then reboot the WDR-3124A.
If you run the Restart function without changing any configurations or saving all your changes, you will see
just one Restart button on your screen.
You will not be able to run any of the WDR-3124A’s functions while the system is rebooting.
Logout
Logout helps users disconnect the current HTTP or HTTPS session and go to the Login page. For security
reasons, we recommend you logout before quitting the console manager.
