WDR-3124A Software Installation and Configuration
4-6
ATTENTION
For security purposes, we
strongly recommend that you change the login password for the Wireless
Search
Utility
.

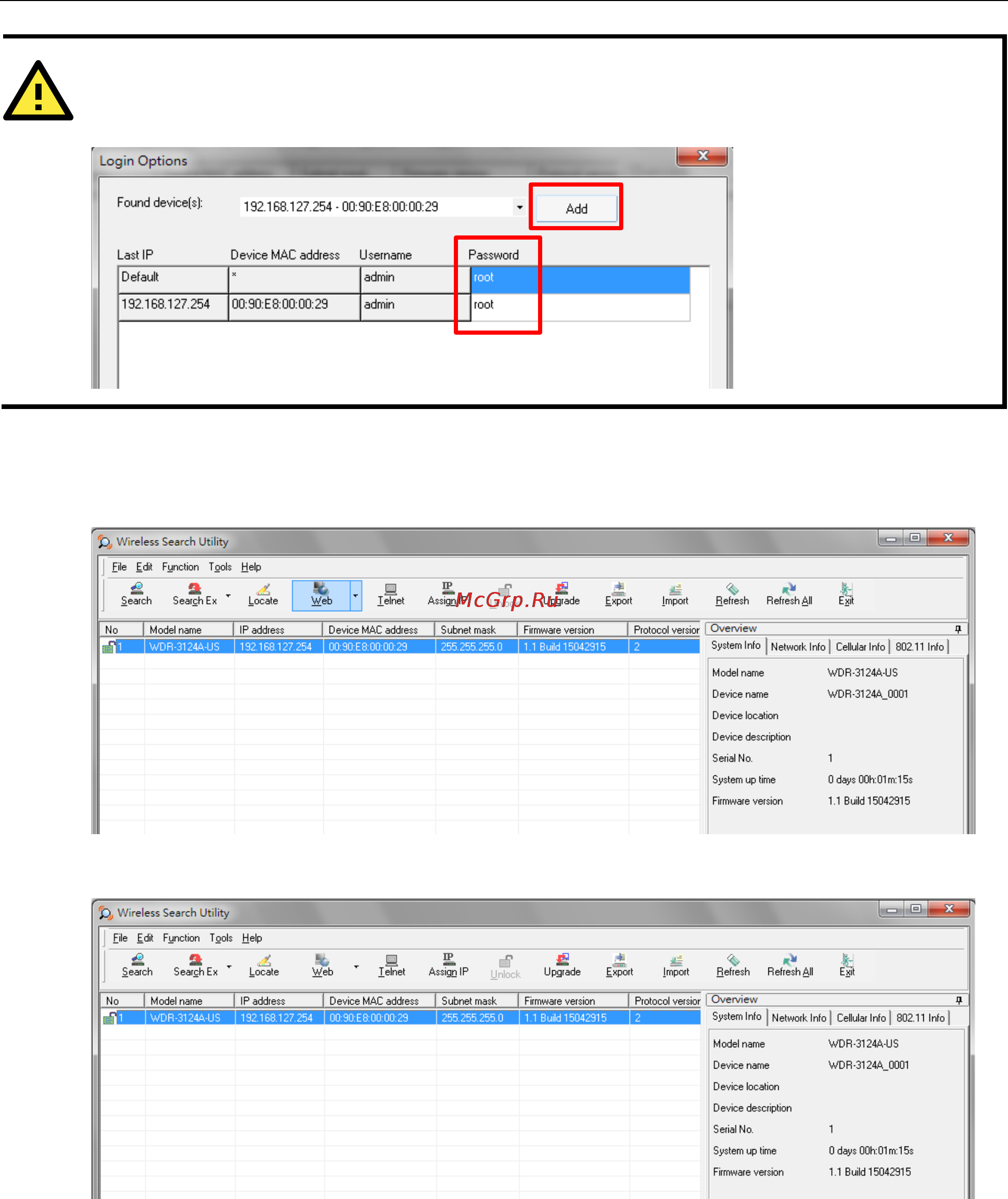

To modify the configuration of the selected WDR-3124A, click the Web icon to open the web console where you
can make all configuration changes. Refer to Chapter 3, “Using the Web Console,” for information on how to use
the web console.
Click Telnet if you would like to use telnet to configure your WDR-3124A.
