WDR-3124A Web Console Configuration
3-24
GuaranLink Recovery Process
With the GuaranLink feature, the WDR-3124A automatically tries to re-establish a connection when a
connection failure has occurred.
The WDR-3124A performs one of the following actions, depending on the number of enabled SIM cards:
• One SIM card – Resets the cellular module without rebooting the device to force negotiation between the
WDR-3124A and the base station.
• Dual SIM cards – Reset the cellular module without rebooting the device and establish a cellular connection
using the second SIM card account.
Configuring GuaranLink Settings

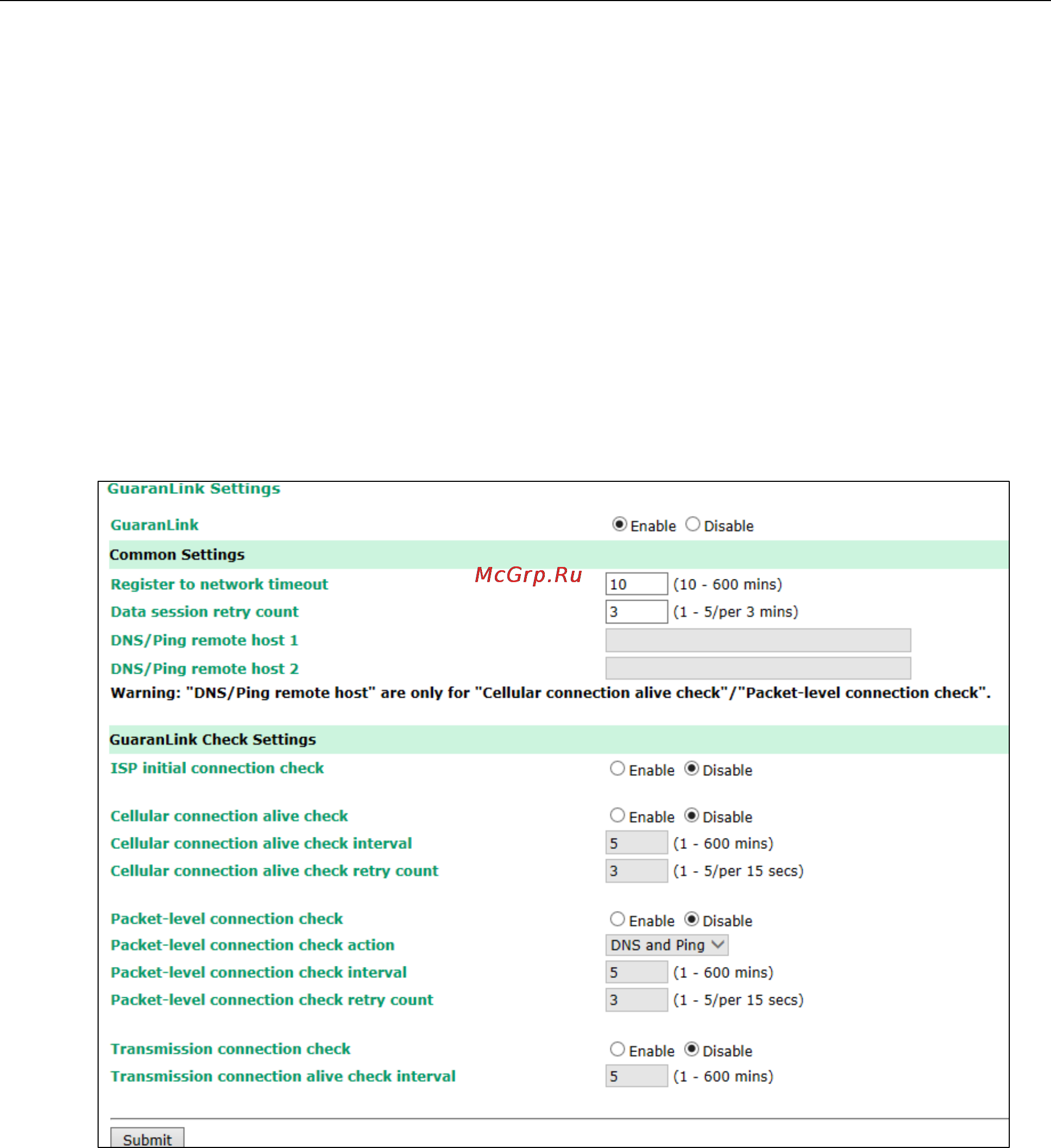

In the navigation panel, click Network Settings > GuaranLink Settings to display the configuration screen.
Advanced Settings
You can use the Advanced Settings screens to configure the following settings:
• Network gateway preference (Client-Router mode)
• DHCP server
• Dynamic DNS (DDNS)
• Packet filtering
• SNMP
• Port forwarding
• VPN
