Moxa WDR-3124A-EU-T [74/94] Firmware upgrade

WDR-3124A Web Console Configuration

3-51

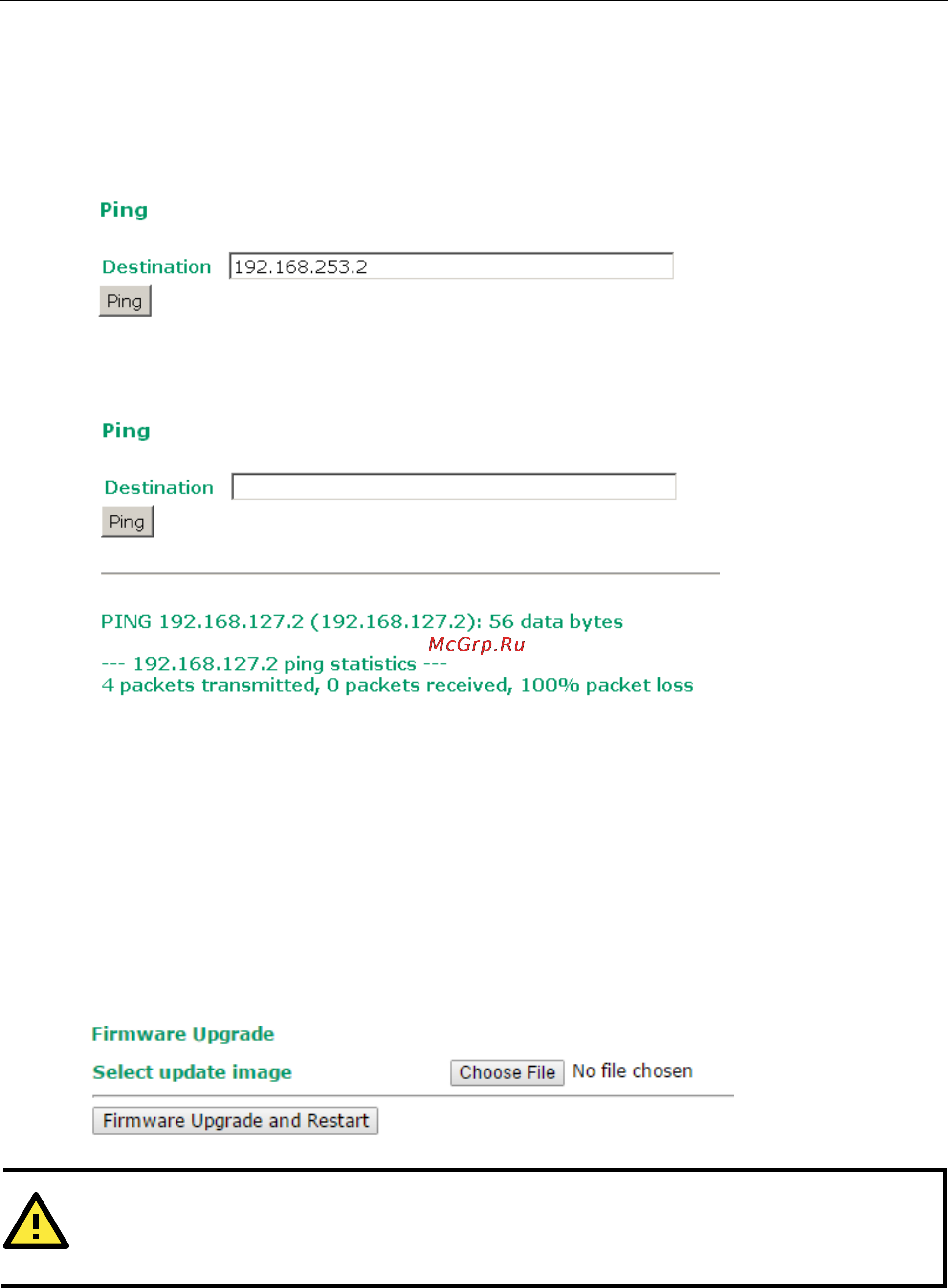

Ping

Ping helps to diagnose the integrity of wired or wireless networks. By inputting a node’s IP address in the

Destination field, you can use the ping command to make sure it exists and whether or not the access path

is available.

If the node and access path are available, you will see that all packets were successfully transmitted with no

loss. Otherwise, some, or even all, packets may get lost, as shown in the following figure.

Firmware Upgrade

The WDR-3124A can be enhanced with more value-added functions by installing firmware upgrades. The latest

firmware is available at Moxa’s download center.

Before running a firmware upgrade, make sure the WDR-3124A is off-line. Click Choose File to select the

firmware image file and click Firmware Upgrade and Restart to start the firmware upgrade. After the

progress bar reaches 100%, the WDR-3124A will reboot itself.

When upgrading your firmware, the WDR-3124A’s other functions are forbidden.

ATTENTION

Please make sure the power source is stable when you

upgrade your

firmware. An unexpected power breakup

may damage your WDR

-3124A.
