WDR-3124A Web Console Configuration

3-52

Configuration Import Export

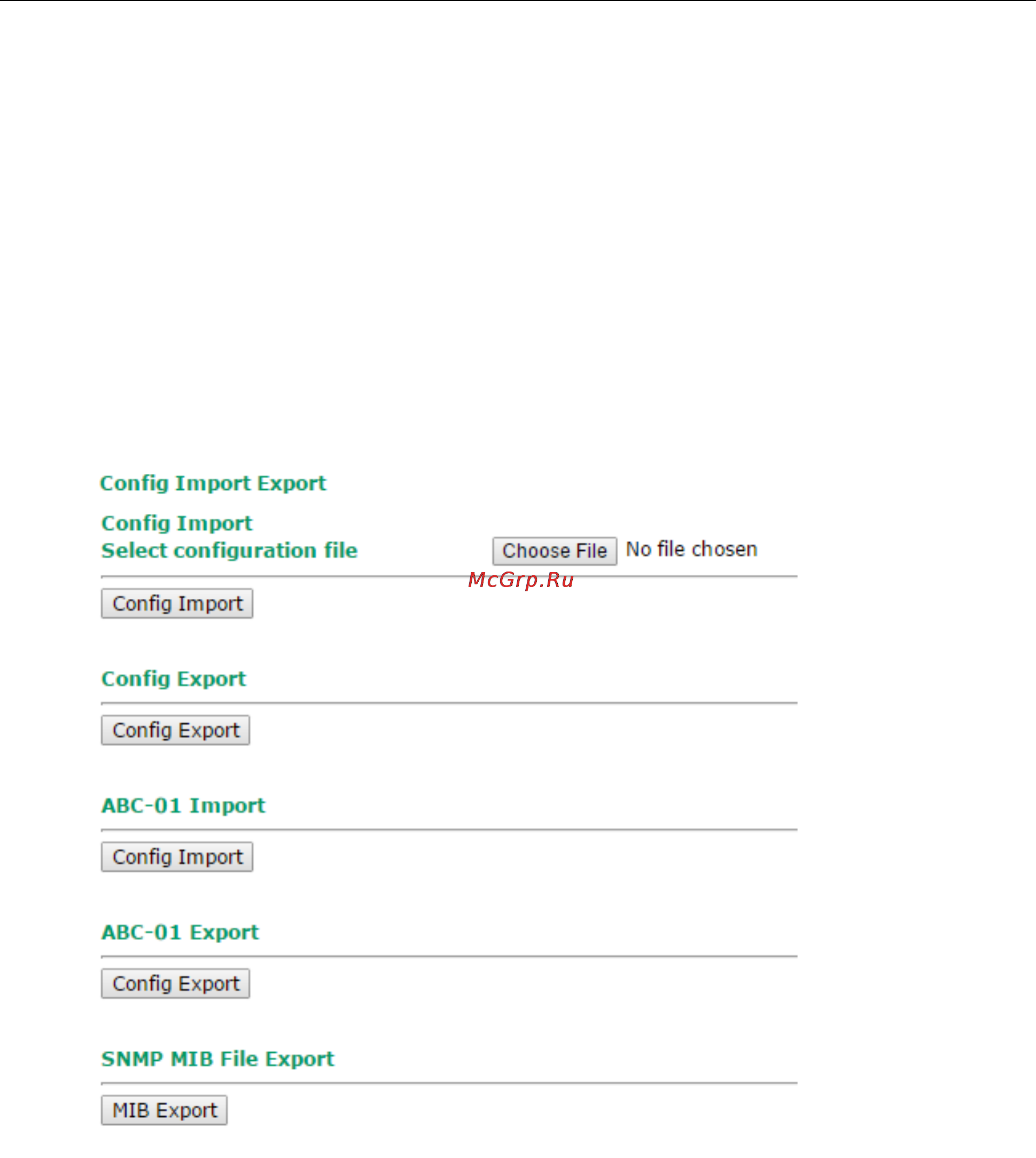

You can use the Config Import Export screen to back up or restore the following information:

• Configuration settings on the WDR-3124A

• ABC-01 configuration

• MIB

In the Config Import section, click Choose File to select a configuration file and click Config Import button

to begin importing configuration.

To save the configuration file to a storage media, click Config Export. The configuration file is a text file and

you can view and edit it with a general text-editing tool.

For MIBs, click MIB Export to save the MIB file to a storage media. The configuration file is a .my file and you

can import it with a general SNMP tool to remote control or set WDR-3124A.

To download the configuration to the WDR-3124A, complete the following steps:

1. Turn off the WDR-3124A.

2. Connect ABC-01 to the WDR-3124A’s RS-232 console.

3. Turn on the WDR-3124A.

4. The WDR-3124A detects ABC-01 during bootup and automatically downloads the configuration from

ABC-01. After the configuration is downloaded and if the configuration format is correct, the WDR-3124A

emits three short beeps before continuing the bootup process.

5. After the bootup process is complete, the WDR-3124A emits two beeps, and the Ready LED turns solid

green.
