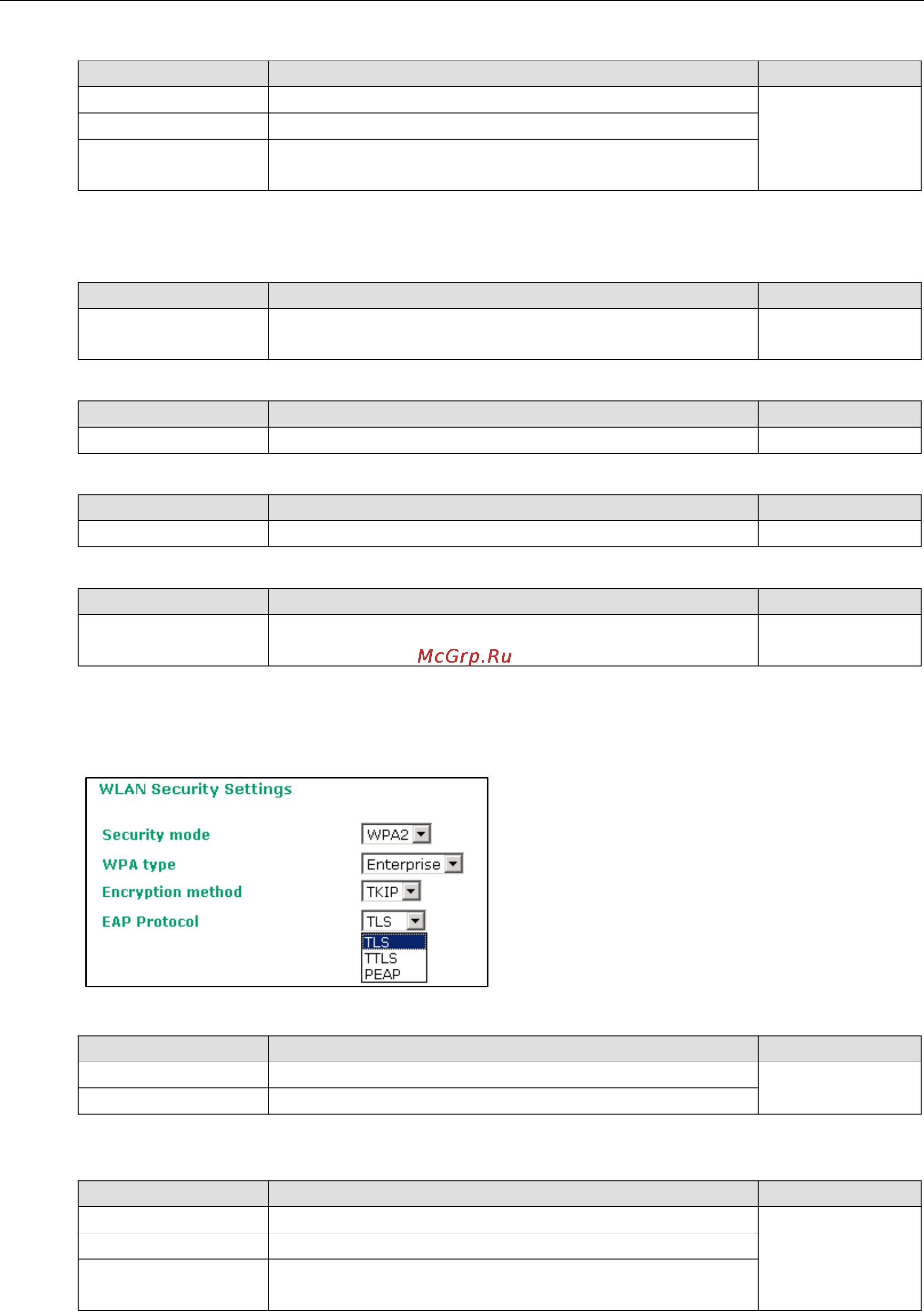

WDR-3124A Web Console Configuration
3-19
Encryption method
Setting Description Factory Default
TKIP** Temporal Key Integrity Protocol is enabled AES
AES Advance Encryption System is enabled
Mixed* Provides TKIP broadcast key and TKIP+AES unicast key for
some legacy AP clients. This option is rarely used.
** This option is only available with 802.11a/b/g standard
* This option is available for legacy mode in AP only, and does not support AES-enabled clients.
Primary/Secondary RADIUS server IP
Setting Description Factory Default
The IP address of
RADIUS server
Specifies the delegated RADIUS server for EAP None
Primary/Secondary RADIUS port
Setting Description Factory Default
Port number Specifies the port number of the delegated RADIUS server 1812
Primary/ Secondary RADIUS shared key
Setting Description Factory Default
Max. of 31 characters The secret key shared between AP and RADIUS server None
Key renewal
Setting Description Factory Default
60 to 86400 seconds
(1 minute to 1 year)
Specifies the time period of group key renewal 3600 (seconds)
WPA/WPA2-Enterprise (for Client mode)
When used as a client, the WDR-3124A can support three EAP methods (or EAP protocols): EAP-TLS,
EAP-TTLS, and EAP-PEAP, corresponding to WPA/WPA-Enterprise settings on the AP side.
Encryption method
Setting
Description
Factory Default
TKIP** Temporal Key Integrity Protocol is enabled TKIP
AES Advance Encryption System is enabled
**This option is only available with 802.11a/b/g standard.
EAP Protocol
Setting Description Factory Default
TLS Specifies Transport Layer Security protocol TLS
TTLS Specifies Tunneled Transport Layer Security
PEAP Specifies Protected Extensible Authentication Protocol, or
Protected EAP
Before choosing the EAP protocol for your WPA/WPA2-Enterpise settings on the client end, please contact the
network administrator to make sure the system supports the protocol on the AP end. Detailed information on
these three popular EAP protocols is presented in the following sections.
